•  CREE or Bridgelux COB LED light source, high lumen output.
•  AL-SP135A-FR is adjustable that allows users to adjust the lighting angle to the perfect one to reach a perfect lighting effect.
•  8W, 18W, 25W optional.
•  D55mm, D75mm, D95mm, three sizes optional.
•  Recessed installation, this spotlight is suitable for 5~18mm thick ceiling board.
•  Flicker-free driver.

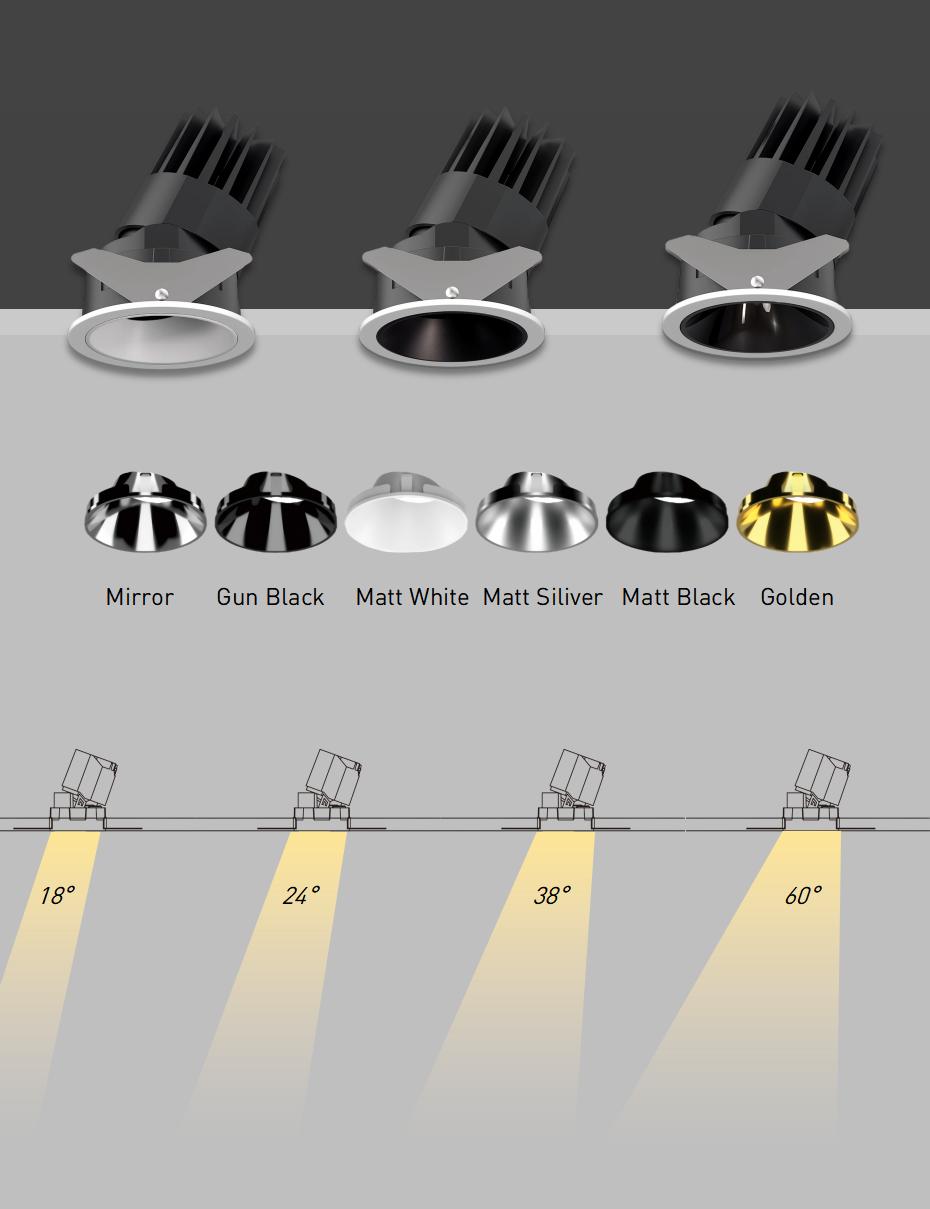

•  6 reflector colors optional: mirror, gun black, matt white, matt silver, matt black and golden.
•  IP65 waterproof.

General Information

Product No.	AL-SP135A-FR
Material	Aluminum
Installation	Recessed
Input Voltage	AC 200-240V
Adjustable	Yes
LED Type	COB LED
LED Qty	1pcs
LED Brand	Bridgelux or CREE
Beam Angle	15°/24°/38°/60°
Finish Color	White / Black
Color Temperature	2700K 3000K 3500K 4000K 5000K 5700K 6000K 6500K
Color Rendering Index	80 or 90
Control	ON/OFF, DALI dimming
IP Rating	IP65
Driver  Brand	Lifud, Boke, Eaglerise
Fliker-free	Yes
Operating Temperature Range	-25 to 45°C
Driver Power Factor	≥0.5 or 0.9

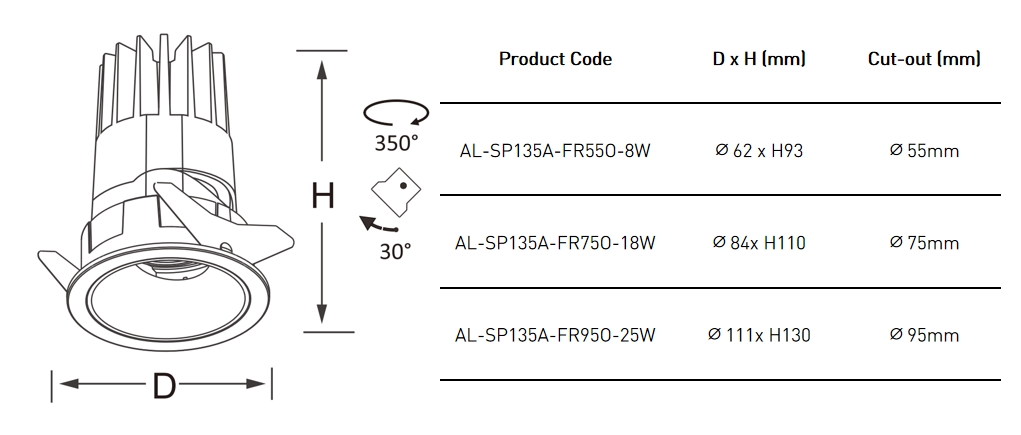

Product Code

Product Code	AL-SP135A-FR55O-8W	AL-SP135A-FR75O-18W	AL-SP135A-FR95O-25W
Power	8W	18W	25W
Luminous Flux	560lm	1260lm	1750lm
Dimension	D62mm x H85mm	D84mm x H110mm	D111mm x H130mm
Cut-out	D55mm	D75mm	D95mm
