Acoustic Lights

Acoustic 14-80W KOIOS-SLX

• Product Number: KOIOS-SLX (X=200mm, 300mm, 400mm, 500mm, 575mm)

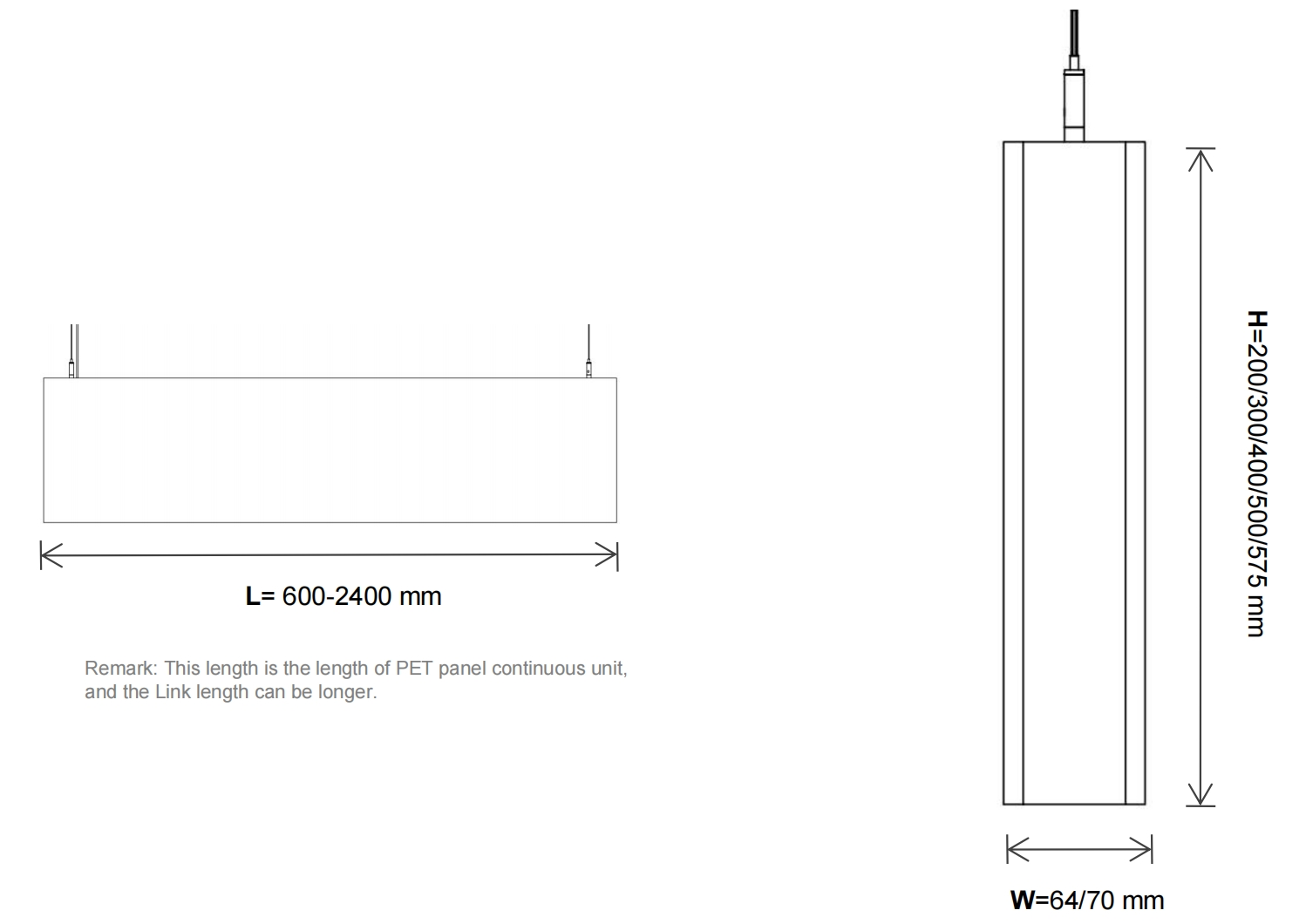

• Housing dimension: Length = 600-2400mm, height = 200mm/300mm/400mm/500mm/ 575mm
• Material: Polyester
• Acoustic Panel Thickness: 9MM(NRC Max 0.85); 12MM(NRC Max 0.95)
• Finsh: Total 40 color optional
• Optic:  Microprismatic, Microcrystalline Film,  Lens , Opal
• Beam Angle: 90°, 38°/50°, 120°
• Power: 14-80W
• Operating Temperature: -20 to 55°C
• Fire Rating: ASTM E84 Class A; EN 13501 Class B
• Warranty: 5 years
    Acoustic lighting fixtures are designed using acoustic materials with sound-absorbing functions. They are a perfect combination of acoustics and lighting. Acoustic lighting fixtures can reduce unwanted noise in a space to provide customers with privacy, health, and comfort. You can use our acoustic lighting fixtures in the following areas: offices, dental clinics, hospitals, cafes, reading libraries, bars, conference rooms, banks, and any other spaces you like.

    ECO-PET is a synthetic felt board material made from recycled PET bottles, which can solve the acoustic problems of indoor spaces. ECO-PET is non-flammable, durable, easy to maintain, and has a delicate and soft touch. It is made from recycled materials and can be recycled again. The strength of the material allows for clever construction with flat-cut panels. It also comes with more than 40 color options, so you can decorate and brighten your space as much as you like. Let our space be environmentally friendly, healthy, bright, and comfortable.

    1. Effectively absorbing noise, this luminarie can be used as a perfect open office lighting solution.
    2. High efficiency, energy saving and environmental protection.
    3. Anti-glare, high color rendering index, eye-friendly.
    4. The shape is simple and elegant and can be applied to multiple lighting spaces.
    5. 40 color options, we can also customize products for you based on your own design inspiration, it‘s very easy for us.
    6. Easy to install and maintain.
    7. High safety: fire retardant.
    8. 5 year warranty.

    Color Options


    Main Information
    Product No. KOIOS-SLX
    Material Polyester
    Product Size Length=200mm, 300mm, 400mm, 500mm, 575mm, H=600=2400mm
    Acoustic Panel Thickness  9/12MM
    Acoustic Panel Thickness & NRC 9MM(NRC Max 0.85)
    12MM(NRC Max 0.95)
    Installation  Pendant
    Voltage AC 200-240 V(50/60Hz)
    AC 100-277 V(50/60Hz)
    Nominal Frequency 50/60 Hz
    Optic 90° Microprismatic
    90° Microcrystalline Film
    38°/50° Lens
    120° Opal
    Power 14-80W
    Color Temperature(CCT)  2700K or 4000K or 5700K
    Color Rendering Index  CRI 90+ 95+
    Dimming DALI  0-10V  Triac PUSH
    Aluminum Profile Finish Black(RAL 9005)  White(RAL 9016)   Gray(RAL 8016)
    Operating Temperature Range -20 to 55℃
    IP Rating IP 20
    Quanlity Warranty 5 Years

    Detailed Information
    Acoustic Panel Fire Rating EN 13501 Class(B-s1,d0); ASTM E84 Class A(FSI 5, SDI 170)
    Color Variation Initial & Color Consistency   SDCM<5
    Life Span  L80B50 50000hours
    Driver Power Factor  >0.9
    Control Driver Type  Electronic constant current
    Driver Position  Internal
    Electrical Protection  Class Ⅱ
    LED Flickering Rate LED  Medium(0.01%-1%) (Flicker-free)
    Photobiological Risk Group  RG0
    LED Housing Material  Aluminum 6063-T6
    LED Housing Processing  Black Powder Coating / White Powder Coating
