Acoustic Lights

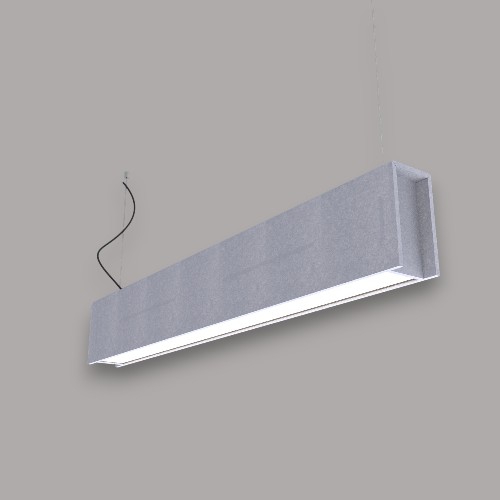

Acoustic 28-60W KOIOS-BL1200

• Product Number: KOIOS-BL1200

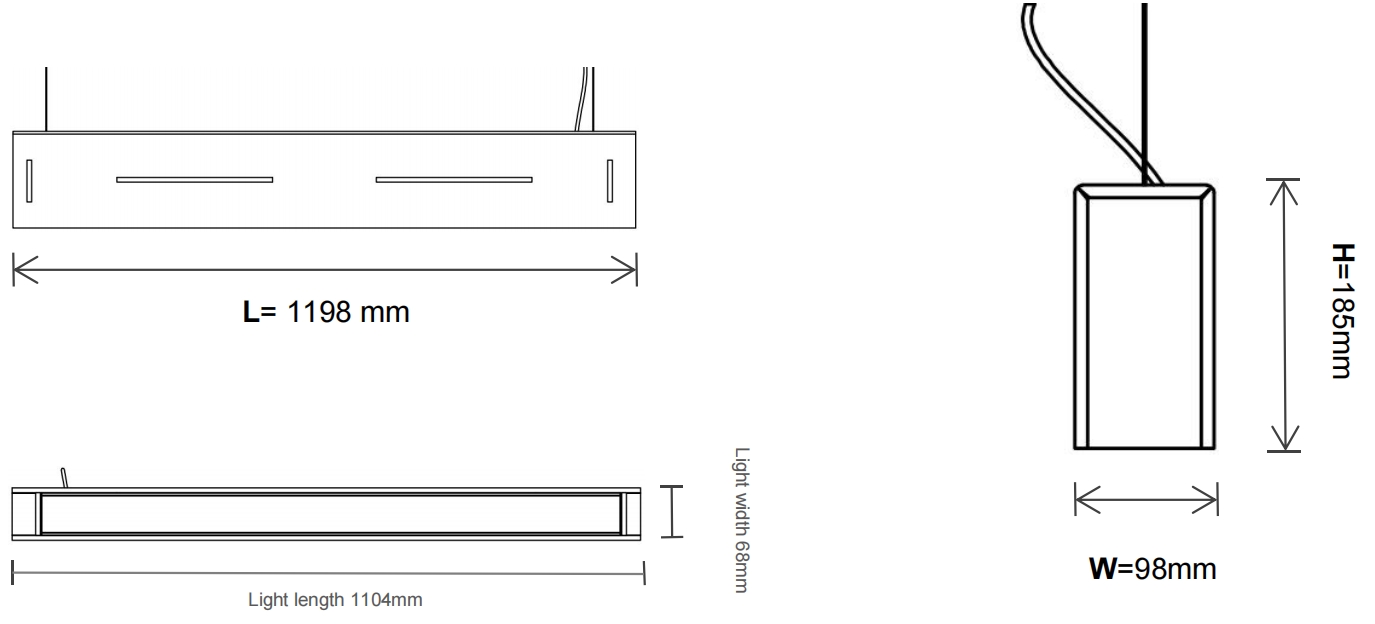

• Housing dimension: L1200×W98×H185mm
• Material: Polyester+Aluminum+PC
• Acoustic Panel Thickness:12MM
• Acoustic Panel Density: 2.4kg/m2
• Acoustic Panel Sound Absorption Coefficient: NRC Max=0.95
• Finsh: Total 40 color optional
• Optic:  Microprismatic Board
• Beam Angle: 90°
• Power: 28-60W
• Operating Temperature: -20 to 55°C
• Fire Rating: ASTM E84 Class A; EN 13501 Class B
• Warranty: 5 years
    Acoustic lighting fixtures are designed using acoustic materials with sound-absorbing functions. They are a perfect combination of acoustics and lighting. Acoustic lighting fixtures can reduce unwanted noise in a space to provide customers with privacy, health, and comfort. You can use our acoustic lighting fixtures in the following areas: offices, dental clinics, hospitals, cafes, reading libraries, bars, conference rooms, banks, and any other spaces you like.

    ECO-PET is a synthetic felt board material made from recycled PET bottles, which can solve the acoustic problems of indoor spaces. ECO-PET is non-flammable, durable, easy to maintain, and has a delicate and soft touch. It is made from recycled materials and can be recycled again. The strength of the material allows for clever construction with flat-cut panels. It also comes with more than 40 color options, so you can decorate and brighten your space as much as you like. Let our space be environmentally friendly, healthy, bright, and comfortable.

    1. Effectively absorbing noise, this luminarie can be used as a perfect open office lighting solution.
    2. High efficiency, energy saving and environmental protection.
    3. Anti-glare, high color rendering index, eye-friendly.
    4. The shape is simple and elegant and can be applied to multiple lighting spaces.
    5. 40 color options, we can also customize products for you based on your own design inspiration, it‘s very easy for us.
    6. Easy to install and maintain.
    7. High safety: fire retardant.
    8. 5 year warranty.

    Color Options


    Main Information
    Product No. KOIOS-BL1200
    Material Polyester+Aluminum + PC
    Product Size L1200×W98×H185mm
    Acoustic Panel Thickness  12MM
    Acoustic Panel Density  2.4kg/m2
    Acoustic Panel Sound Absorption Coefficient  NRC Max=0.95
    Acoustic Panel Fire Rating  EN 13501 Class(B-s1,d0); ASTM E84 Class A(FSI 5, SDI 170)
    Installation  Suspended Mounted
    Input Voltage AC 100-277V /AC200-240V
    Nominal Frequency 50/60 Hz
    Optic Microprismatic Board
    Beam Angle 90°
    Uniform Glare Value UGR<25
    Power 28-60W
    Color Temperature(CCT)  3000K - 4000K - 5700K(3CCT Change)
    Color Rendering Index  CRI 92
    Efficacy  90lm/W
    Luminous Flux  2520-5400 lm
    Control  ON/OFF or 0-10V or DALI
    Operating Temperature Range -20 to 55℃
    IP Rating IP 20
    Quanlity Warranty 5 Years


    Detailed Information
    Light Source SMD LED
    R9 Color Rendering Index Value R9>67
    Color Variation Initial & Color Consistency   SDCM<5
    Life Span  L80B50 50000hours
    LED Driver Brand   CE Driver / UL Driver
    Driver Power Factor  >0.9
    Driver Efficiency  ≥88%
    THD <15%
    Driver Glow Wire Test  850℃
    Overvoltage protection AC 320V, 48 hours
    Mains Surge Capability  1KV
    Control Driver Type  Electronic constant current
    Driver Position  Internal
    Electrical Protection  Class Ⅱ
    LED Flickering Rate LED  Medium(0.01%-1%) (Flicker-free)
    Photobiological Risk Group  RG0
    LED Housing Material  Aluminum 6063-T6
    LED Housing Processing  Powder coating
