Linear Inground Light

18W AL-2CLB

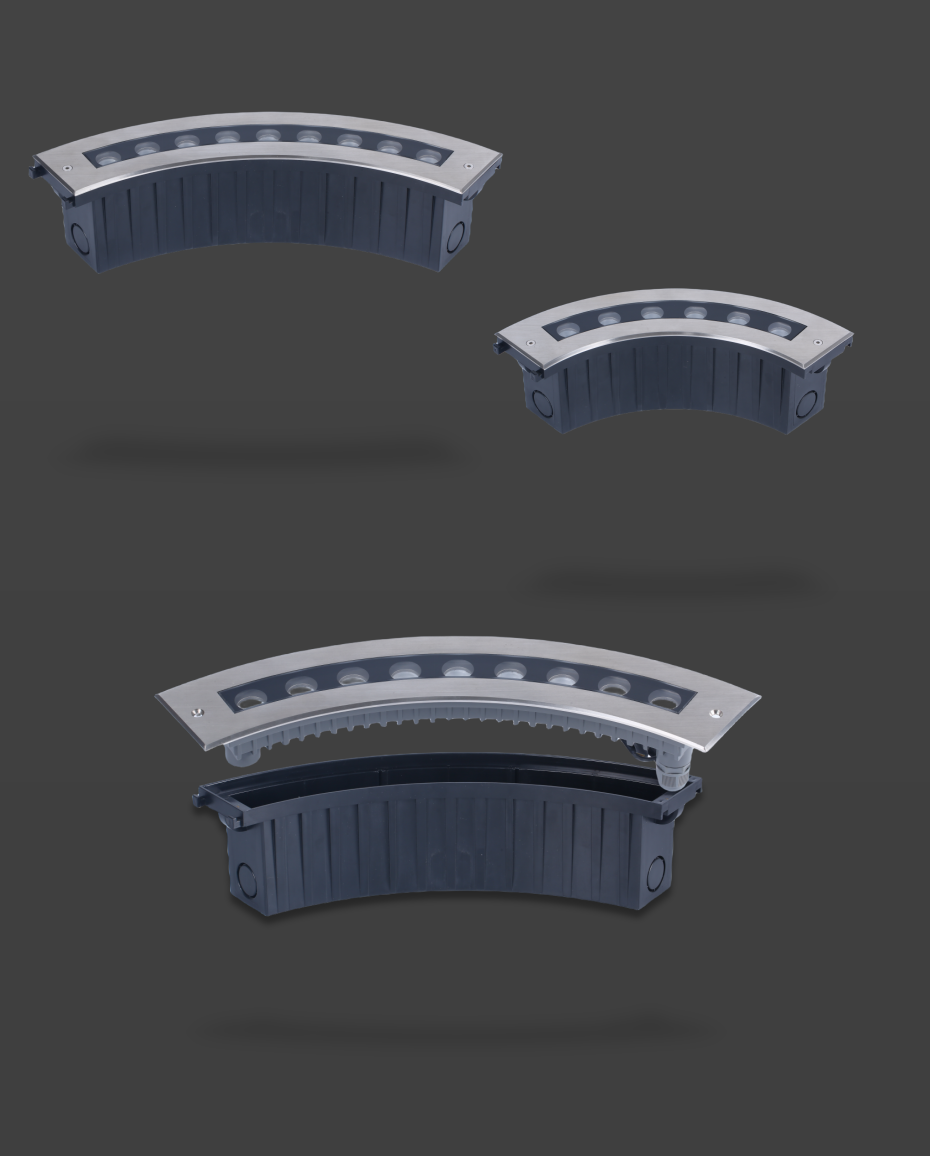

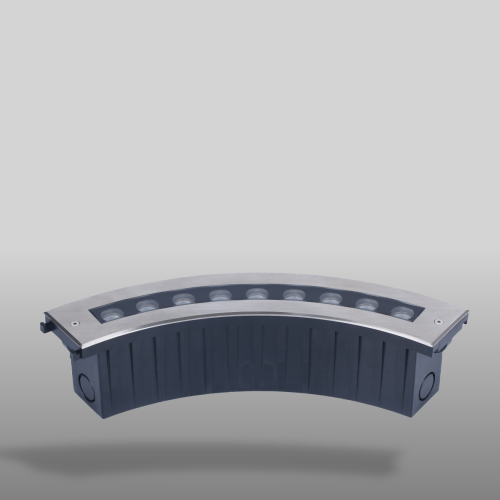

18W High Power Curved LED Underground Light

• Item No.:AL-2CLB
• LED:9pcs high power led
• LED chip:CREE OSRAM EPISTAR
• Power:18W

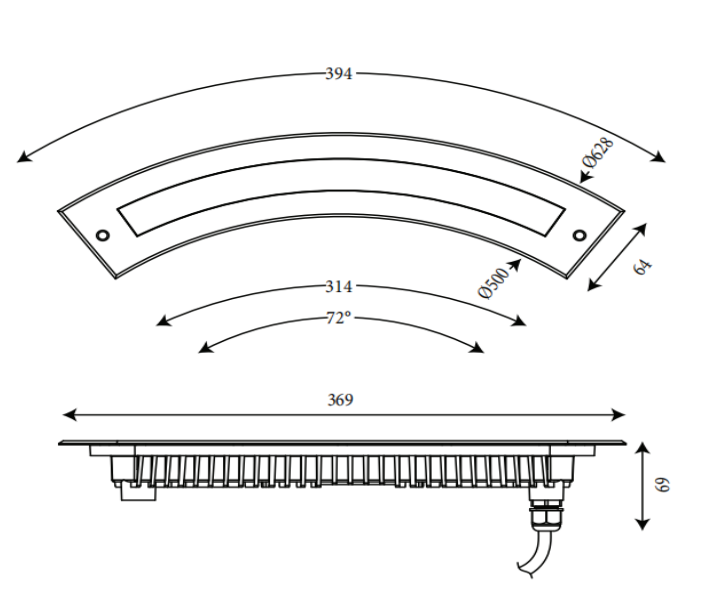

• Dimension:64x69x457mm
• Voltage:24VDC,220-240VAC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:10/25/45/60°  20*40/20*60/45|35°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material+316 stainless steel+ABS
• Warranty:3 years
• Certification:CE ROHS UKCA
    1.Reliable light source of CREE & OSRAM & EPISTAR high power LED make sure the light‘s long lifetime and high lumen output.
    2.IP67 waterproof,curved aluminum,perfectly used in outdoor garden,square,tree lighting.Every four pieces can be connected in one circle.
    3.Various color optional:2200K 2700K 3000K 4000K 5000K 6000K,RGB DMX512,RGB 3in1 DMX512,RGBW 4in1 DMX512.
    4.Supporting DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect.
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.
    6.316L#Titanium coated stainless steel cover & high strength ACD12# die-casting aluminum with Tiger powder paint & ABS sleeve materials.
    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability.
    8.Symmetrical & asymmetrical lens,various beam angle for choosing:10/25/45/60°   20*40/20*60/45|35°.
    9.3 years warranty,CE ROHS,UKCA certification.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-2CLB CREE 9x2W Single Color 24VDC 10/25/45/60°      20*40/20*60° 42.8W 0.5M  H05RN-F
    CREE 9x2W Single Color 220-240VAC 10/25/45/60°      20*40/20*60° 43.8W 0.5M  H05RN-F
    EPISTAR 9x2W RGB DMX512 24VDC 10/25/45/60°      20*40/20*60° 42.8W 0.5M  H05RN-F
    EPISTAR 9x2W RGB 3in1 DMX512 24VDC 10/25/45/60°      20*40/20*60° 42.8W 0.5M  H05RN-F
    EPISTAR 9x2W RGBW 4in1 DMX512 24VDC 10/25/45/60°      20*40/20*60° 66.8w 0.5M  H05RN-F
