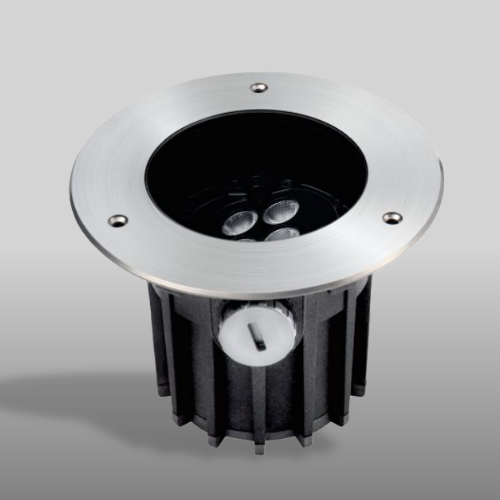

Tiltable Inground Light

6x2W AL-2AAB-S3

6x2W Adjustable High Power LED Inground Light

• Item No.:AL-2AAB-S3
• LED:6pcs CREE /OSRAM / EPISTAR high power LED
• Power:12-16W
• Dimension:Ø160x153mm
• Voltage:12/24VDC,220-240VAC
• Color:2700K 3000K 4000K  5000K  6000K
            RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:8/15°/30°/40°/60°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material.
• Warranty:3 years
• Certification:CE ROHS UKCA

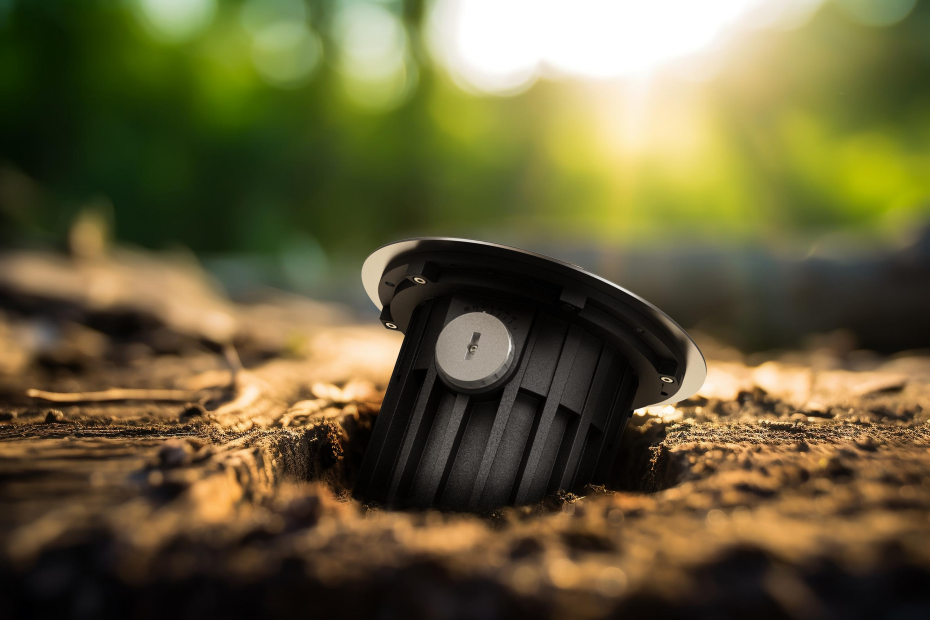

    1.2AA series of led inground lights is designed for architectural illumination,due to the swivel function the light beam can be tilted by +/- 25°.
    2.Deep light source design brings non-glared lighting effect which is friendly to eyes ,and it can effectively reduce lighting polution.

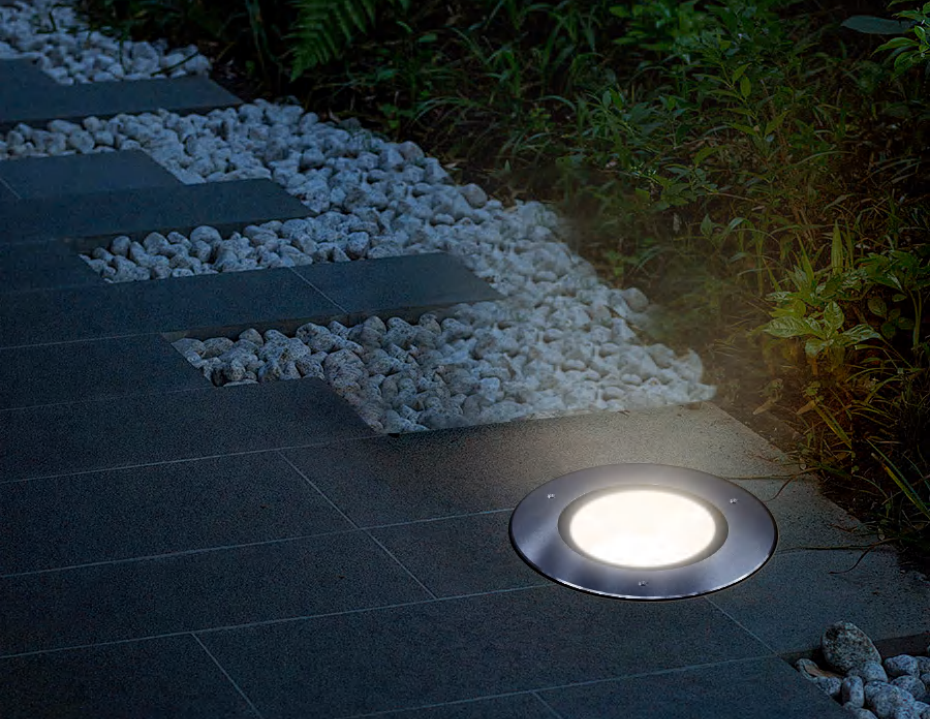

    3.IP67 waterproof,perfect for outdoor park,square,road and architectural building lighting.
    4.Using reliable light source of CREE & OSRAM & EPISTAR high power LED make sure the light‘s long lifetime and high lumen output.
    5.Support DMX512,1-10V,DALI,TRIAC or PWM dimming system,it has a very smooth and soft dimming effect.
    6.Various color optional:2200K 2700K 3000K 4000K 5000K 6500K,RGB 3in1 DMX512,RGBW 4in1 DMX512.
    7.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.
    8.316L#Titanium coated stainless steel cover & high strength ACD12# die-casting aluminum with Tiger powder paint & ABS sleeve materials.
    9.3~5years warranty,CE ROHS,UKCA certification.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-2AAB-S3 CREE 6x2W Single Color 24VDC 8/15°/30°/40°/60° 12.6W 0.5M  H05RN-F
    CREE 6x2W Single Color 220-240VAC 8/15°/30°/40°/60° 12.8W 0.5M  H05RN-F
    EPISTAR 6x3W RGB 3in1 DMX512 24VDC 8/15°/30°/40°/60° 12W 0.5M  H05RN-F
    EPISTAR 6x4W RGBW 4in1 DMX512 24VDC 8/15°/30°/40°/60° 16W 0.5M  H05RN-F
