Ceiling Light

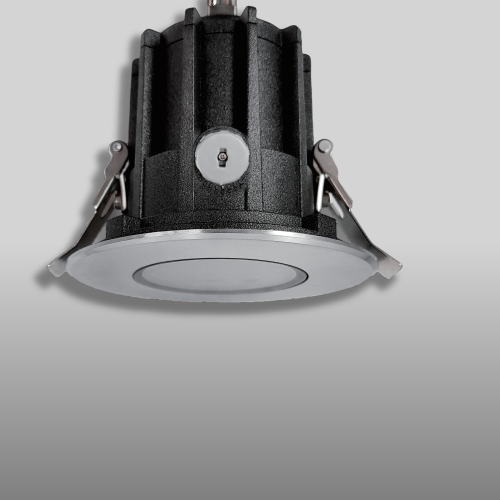

D210mm AL-7AA-S5

24~32W recessed down light

• Item No.:AL-7AA-S5
• LED: High-power led & COB led

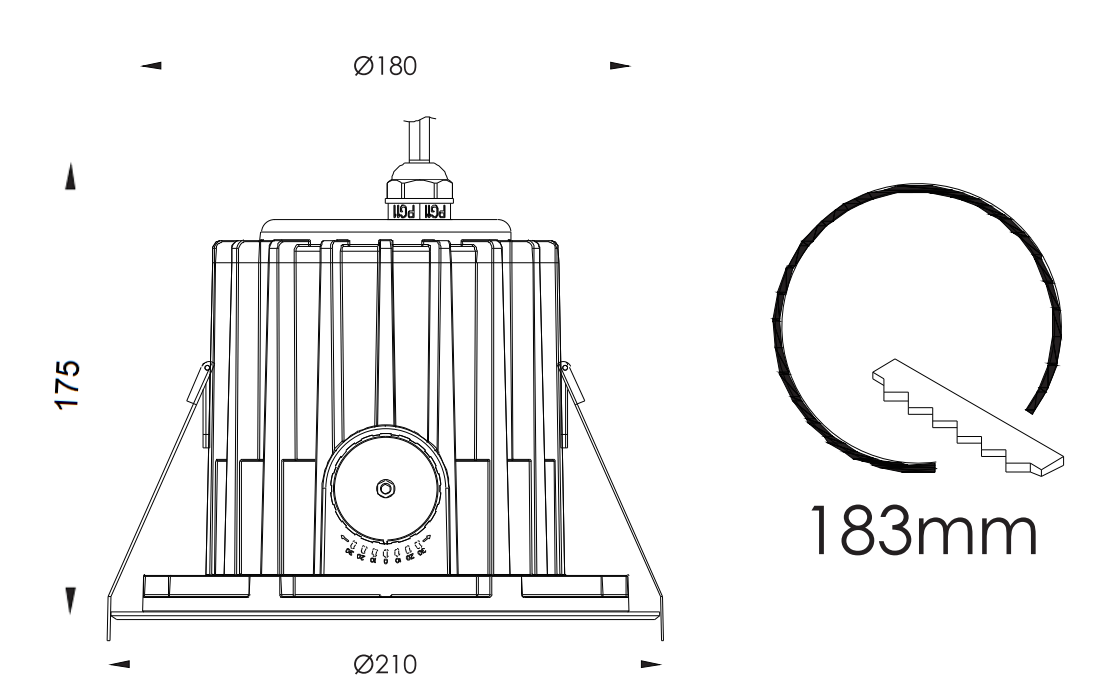

• Dimension:Ø210x175mm
• Voltage:12/24VDC,220-240VAC
• Color:2700K 3000K 4000K  5000K  6000K
            RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:5°/8/15°/25°/40°/60°/10*45°/20*65°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material.
• Warranty:3 years
• Certification:CE ROHS UKCA
    1. Protection grade IP67
    2. 2200K-6500K
    3. Tempered glass
    4. Easy to install and maintain
    5. Powder-coated die-casting aluminum + 316 stainless steel surface cover
    6. Various beam angle options: 20°/25°/40°/60°, 10*60°/20*30°7.
    7.     CE, ROHS, Reach, UKCA certification
    8.     5 years warranty

    Part code

    LED

    CCT

    Voltage

    Lumen

    Beam angle

    AL-7AA-S5-XX1B

    12x2W CREE/OSRAM

    2700K

    3000K

    4000K

    6000K

    12/24VDC

    1800lm

    5°/8/15°/25°/40°/60°

    10*45°/20*65°

    AL-7AA-S5-XX2B

    12x2W CREE/OSRAM

    2700K

    3000K

    4000K

    6000K

    220-240VAC

    1800lm

    5°/8/15°/25°/40°/60°

    10*45°/20*65°

    AL-7AA-S5-XX1R

    1x25W

    CREE COB

    2700K

    3000K

    4000K

    6000K

    12/24VDC

    1800lm

    18°/24°/38°/60°

    AL-7AA-S5-XX2R

    1x25W

    CREE COB

    2700K

    3000K

    4000K

    6000K

    220-240VAC

    1800lm

    18°/24°/38°/60°

    AL-7AA-S5-31CB

    9x2.5W

    OSRAM

    RGB 3in1

    12/24VDC

    1800lm

    12°/25°/40°/60°

    AL-7AA-S5-41CB

    9x3.5W

    OSRAM

    RGBW 4in1

    12/24VDC

    1800lm

    12°/25°/40°/60°
