Ceiling Light

36W AL-7VSB

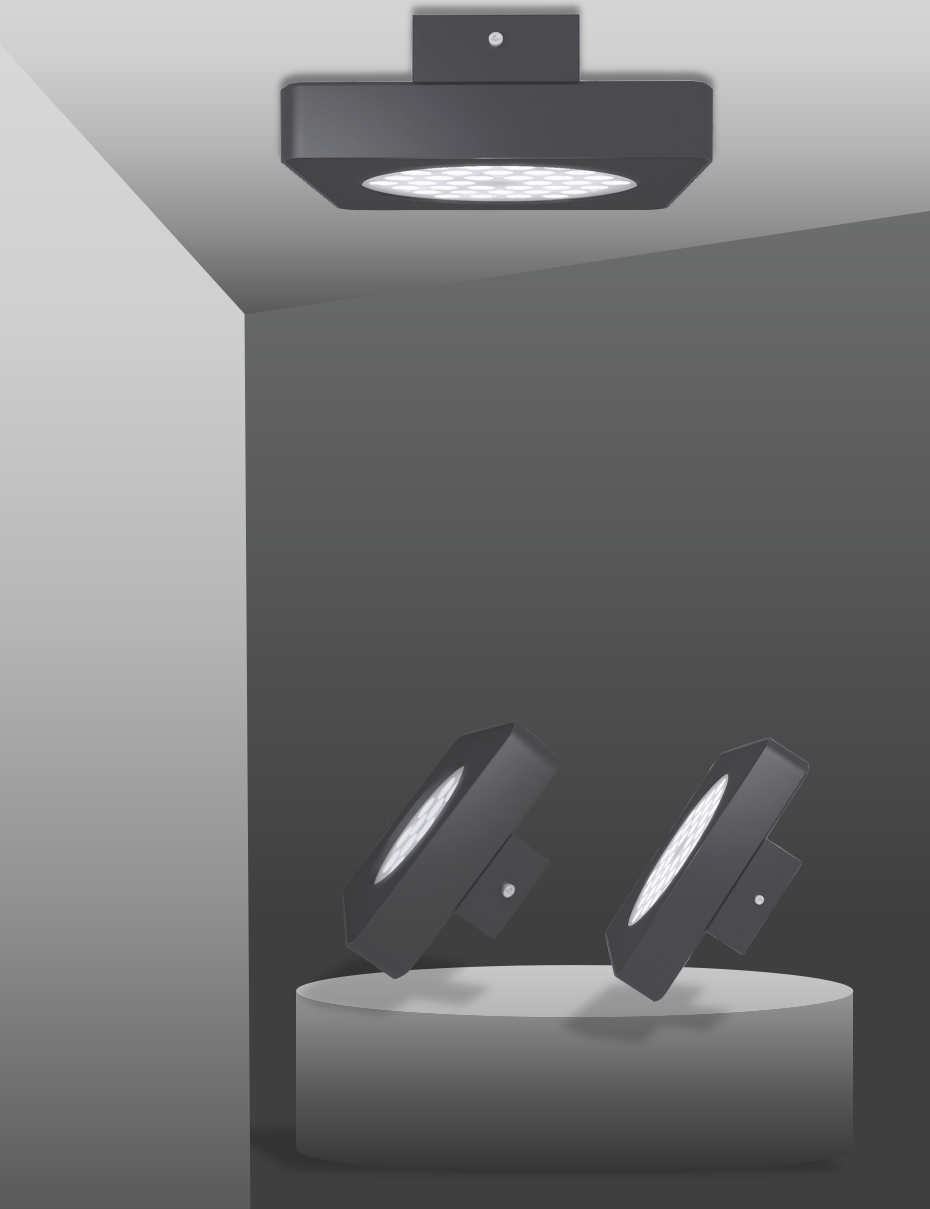

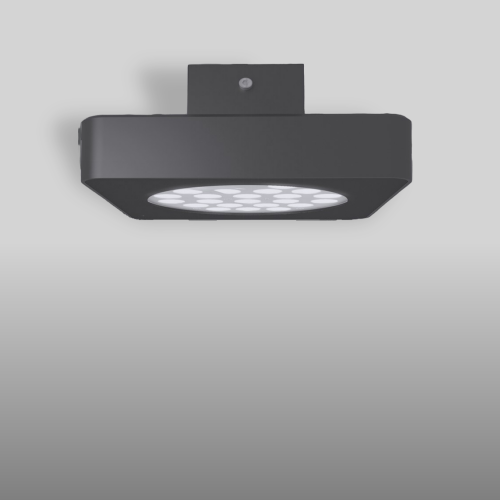

36W Waterproof LED Ceiling Light

• Item No.:AL-7VSB
• LED:4pcs COB LED,24pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:18W

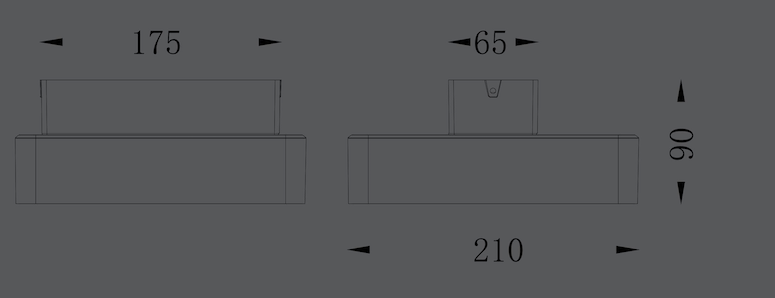

• Dimension:210x210x90mm
• Voltage:24VDC 220VAC
• Color temperature:2700K 3000K 4000K 5000K 6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:20/36/60° 15/25/40/60/90°
• IP grading:IP65
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material
• Warranty:2 years
• Certification:CE ROHS
    1.Simple appreace design,Integrated thermal design guarantees long  lifetime
    2. Ultra clear and highly strengthen 4mm tempered glass cover,ensure high luminous efficacy(90-95%).outstanding accuracy of color temperature,and excellent impact resistance and rub resistance
    3.Environmental friendly highly strengthen ADC 12# die-casting aluminum housing with Tiger powder coated spraying process,could reach over 1000 hours in salt spray test and ensure the usage in high humid, high acid, and high alkaline environments
    4.Apply international top brand CREE LED to achieve high lumen output,great photochromic consistency and CRI>80Ra (>90Ra is available)
    5. Choose only international top brand component driving module to guarantee the luminous stabiity and low breakdown probability
    6.Support DMX512,1-10V,DALI,TRIAC or PWM dimming control,which runs smoothly and softly
    7.Various accessories 304 stainless steel
    8.IP65 waterproof,ideal for outdoor lighting
    9.Various colors optional:2700K 3000K 4000K 5000K 6000K ,RGB 3in1 DMX512,RGBW 4in1 DMX512
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-7VSB-R CREE 4x10W Single Color DC24V 20/36/60° 36W 0.5M H05RN-F
    AC220-240V 20/36/60° 36W 0.5M H05RN-F
    AL-7VSB-B CREE 24x1.5W Single Color DC24V 15/25/40/60/90° 36W 0.5M H05RN-F
    CREE 24x1.5W Single Color AC220-240V 15/25/40/60/90° 36W 0.5M H05RN-F
    EPISTAR 24x1.5W RGB 3in1 DC24V 15/25/40/60/90° 36W 0.5M H05RN-F
    EPISTAR 24x1.5W RGBW 4in1 DC24V 15/25/40/60/90° 36W 0.5M H05RN-F
