AL-SP69B-FR95O-15W-A&L Lighting Limited

LED Downlight

< >

• Product Code: AL-SP69B-FR95O-15W

• Power: 15W

• Voltage: AC 200-240V
• Luminous Flux: 1296lm

• Efficiency: 90lm/W

• Cut-out: 95mm
• Color Rendering Index: CRI 90+
• Beam Angle: 18°/24°/38°/60°
• Uniform Glare Valux: UGR<20

• Control: ON/OFF

• Operating Temperature: -10 to 45°C
• Material: aluminum + PC

• Ø95mm cut-out, SP69 is a down light with mini size.

• COB LED, high lumen output and long lifetime.

• Various beam angle options, perfect for room lighting.
• Anti-glare lighting effect, this downlight is friendly to eyes.

• Eneregy saving.
• External driver, the downlight is easy to install and maintain.
• Smart control, support DALI dimming.

Product No.	AL-SP69B-FR95O-15W
Material	Aluminum + PC

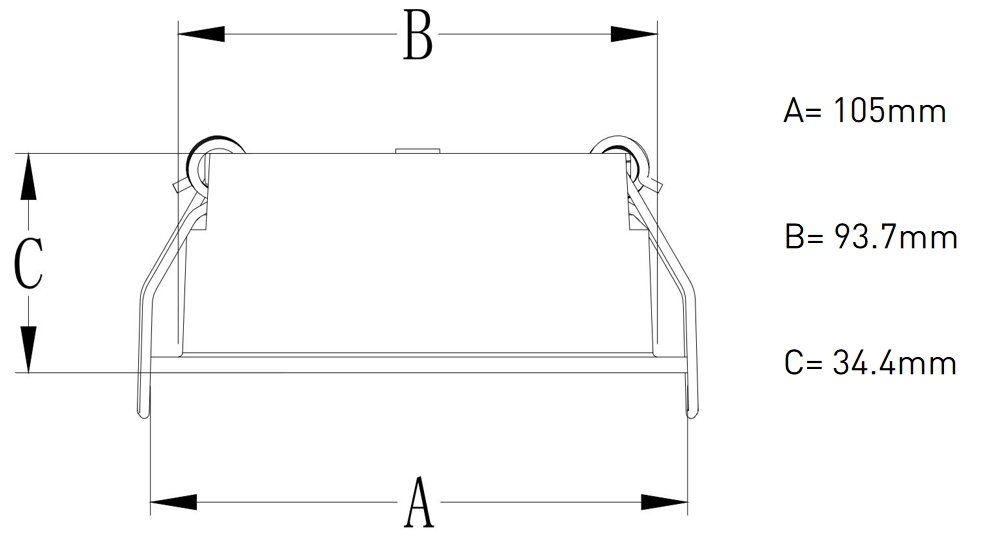

Product Size	D105mm x H34.4mm
Installation	Recessed
Input Voltage	AC 200-240V
Power	15W
Luminous Flux	1296lm
Efficiency	90 lm/W
Beam Angle	18°/24°/38°/60°
Uniform Glare Value	UGR<20
Color Temperature	2700K3000K/3500K/4000K/5000K
Color Rendering Index	CRI 90+
Control	ON/OFF, DALI dimming
IP Rating	IP20
Driver Postion	Built-out
Operating Temperature Range	-10 to 45°C
LED Type	COB LED
R9	R9>67
Lifespan	L80B50 50,000hours
Driver Power Factor	>0.95
Driver Efficiency	≥78%
THD	>20% @230V
Electrical Protection	II
Mains Surge Capability	1KV
