•  CREE or Bridgelux COB LED light source, high lumen output.
•  AL-SP158A-TR-P is adjustable that allows users to adjust the lighting angle to the perfect one to reach a perfect lighting effect.
•  8W, 15W optional.
•  Recessed installation, this spotlight is suitable for 5~18mm thick ceiling board.
•  Flicker-free driver.
•  IP65 waterproof.

General Information

Product No.	AL-SP158A-TR-P
Material	Aluminum
Installation	Recessed
Input Voltage	AC 200-240V
Adjustable	Yes
LED Type	COB LED
LED Qty	1pcs
LED Brand	Bridgelux or CREE

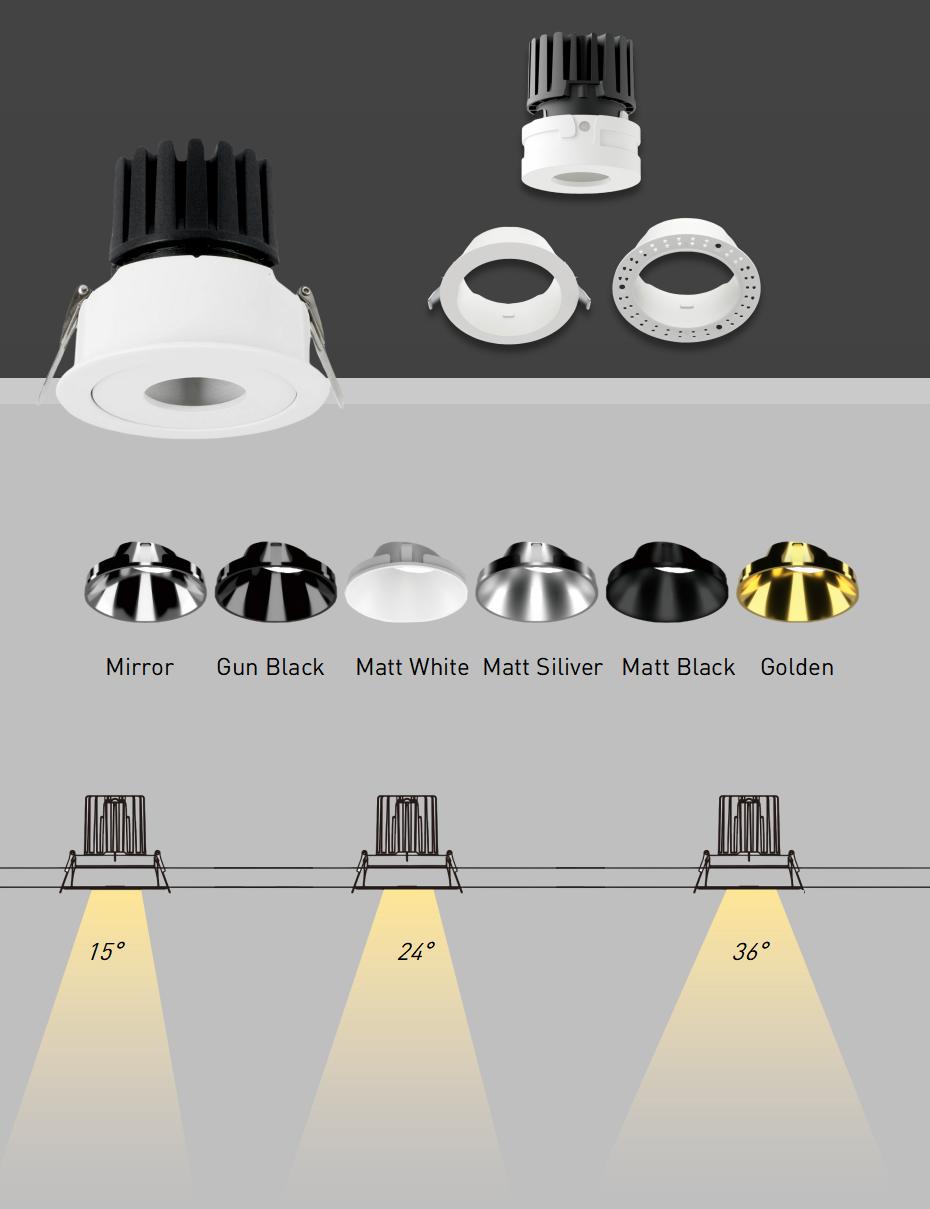

Beam Angle	15°/24°/36°
Finish Color	White / Black
Color Temperature	2700K 3000K 3500K 4000K 5000K 5700K 6000K 6500K
Color Rendering Index	80 or 90
Control	ON/OFF, DALI dimming
IP Rating	IP65
Driver  Brand	Lifud, Boke, Eaglerise
Fliker-free	Yes
Operating Temperature Range	-25 to 45°C
Driver Power Factor	≥0.5 or 0.9

Product Code

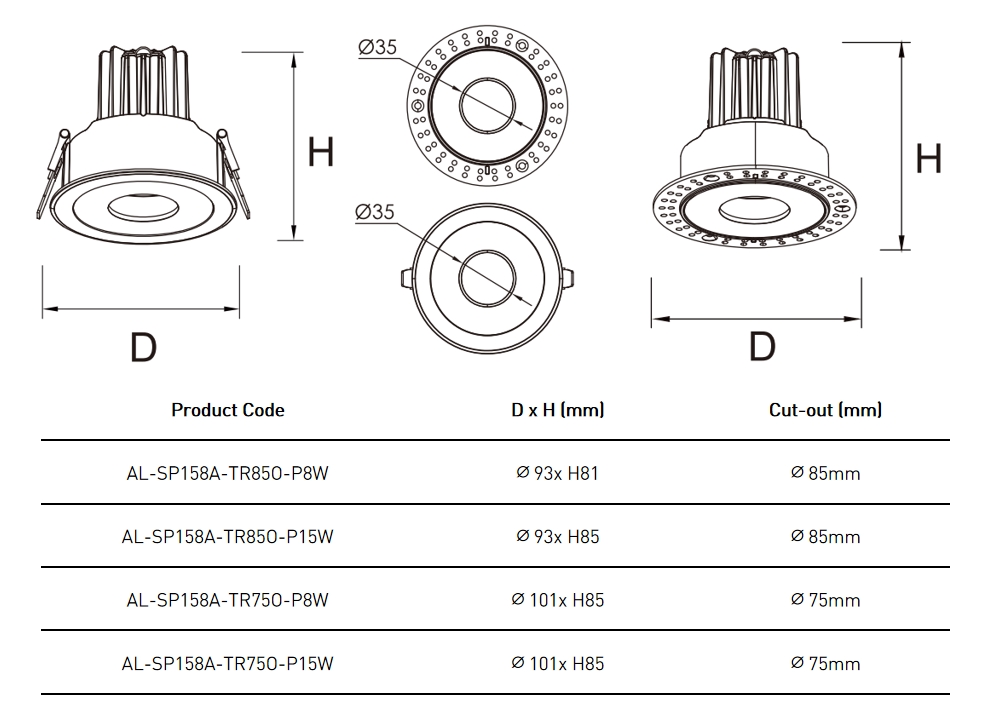

Product Code	Power	Luminous Flux	Dimension	Cut-out
AL-SP158A-TR85O-P8W	8W	600lm	D93 x H81mm	D85
AL-SP158A-TR85O-P15W	15W	1125lm	D93 x H85mm	D85
AL-SP158A-TR75O-P8W	8W	600lm	D101 x H81mm	D75
AL-SP158A-TR75O-P8W	15W	1125lm	D101 x H85mm	D75
