Flood Light

24W AL-3VRB

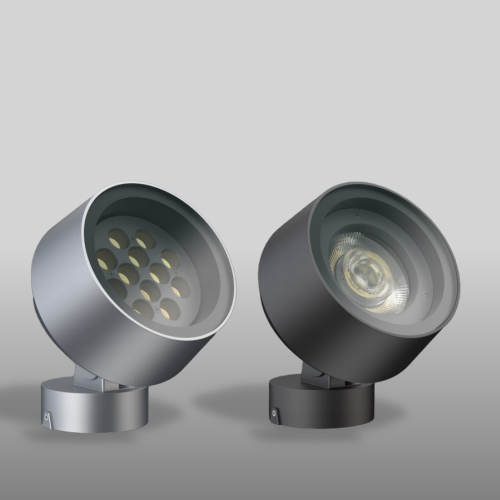

24W LED Multi-use Flood Light

• Item No.: AL-3VRB
• LED type: 25W COB LED, 12pcs high power LED
• LED Chip: CREE, OSRAM, EPISTAR
• Power: 24W

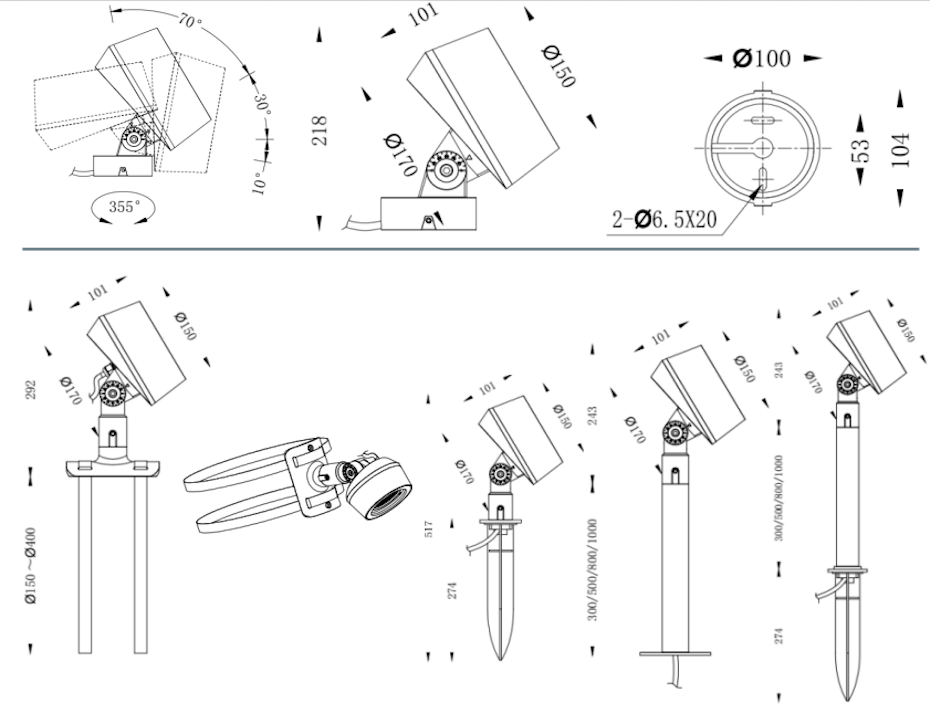

• Dimension: Ø170x218mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Colors: RGB 3in1 DMX512,RGBW 4in1
• Beam angle: 3/8°  18/24/38/60°  25 /40/60°
• IP grading: IP66
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty:5 years
• Certification: CE ROHS UKCA
    1.Using top brands of LED as light source-CREE COB LED,CREE & OSRAM high power LED,the lights have high lumen output and long lifetime.
    2.Various colors for choosing:2000K 2700K 3000K 4000K 5000K 6000K,RGB 3in1 DMX512,RGBW 4in1 DMX512.
    3.Support TRIAC,0-10V or DALI dimmable.
    4.IP66 protection,ideal for both indoor and outdoor lighting.
    5.6 different mounting accessories meet all kinds of installation requirements.
    6.Professional optical lighting control accessories make sure excellent lighting output.
    7.3 years warranty,CE ROHS UKCA certification.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3VRB-S CREE 6x4W Single Color DC24V 3/8° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC 3/8° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC
    TRIAC dimmable    		 3/8° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC
    0-10V dimmable    		 3/8° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color 220-240VAC
    DALI dimmable    		 3/8° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color DMX512 DC24V 3/8° 18W 0.5M  H05RN-F
    CREE 6x4W Single Color DMX512 220-240VAC 3/8° 18W 0.5M  H05RN-F
    CREE 6x4W RGBW 4in1 DMX512 DC24V 18/24/38/60° 18W 0.5M  H05RN-F
    CREE 6x4W RGBW 4in1 DMX512 220-240VAC 18/24/38/60° 18W 0.5M  H05RN-F
    AL-3VRB-R CREE 1x25W Single Color DC24V 3/8° 24W 0.5M  H05RN-F
    CREE 1x18W Single Color 220-240VAC 3/8° 24W 0.5M  H05RN-F
    CREE 1x25W Single Color 220-240VAC
    TRIAC dimmable    		 3/8° 24W 0.5M  H05RN-F
    CREE 1x25W Single Color 220-240VAC
    0-10V dimmable    		 3/8° 24W 0.5M  H05RN-F
    CREE 1x25W Single Color 220-240VAC
    DALI dimmable    		 3/8° 24W 0.5M  H05RN-F
    CREE 1x25W Single Color DMX512 DC24V 3/8° 24W 0.5M  H05RN-F
    CREE 1x25W Single Color DMX512 220-240VAC 3/8° 24W 0.5M  H05RN-F
    AL-3VRB-B CREE 12x3W Single Color DC24V 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W Single Color 220-240VAC 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W Single Color 220-240VAC
    TRIAC dimmable    		 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W Single Color 220-240VAC
    0-10V dimmable    		 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W Single Color 220-240VAC
    DALI dimmable    		 25 /40/60° 24W
    CREE 12x3W Single Color DMX512 DC24V 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W Single Color DMX512 220-240VAC 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W RGB 3in1 DMX512 DC24V 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W RGB 3in1 DMX512 220-240VAC 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W RGBW 4in1 DMX512 DC24V 25 /40/60° 24W 0.5M  H05RN-F
    CREE 12x3W RGBW 4in1 DMX512 220-240VAC 25 /40/60° 24W 0.5M  H05RN-F
