Projector Light

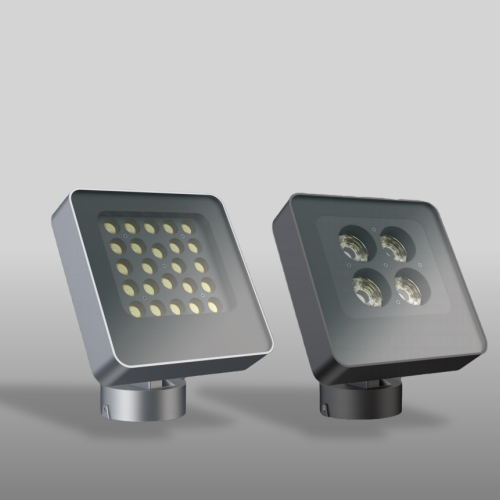

48W AL-3VSB
48W Square Shape Flood Light
• Item No.: AL-3VSB

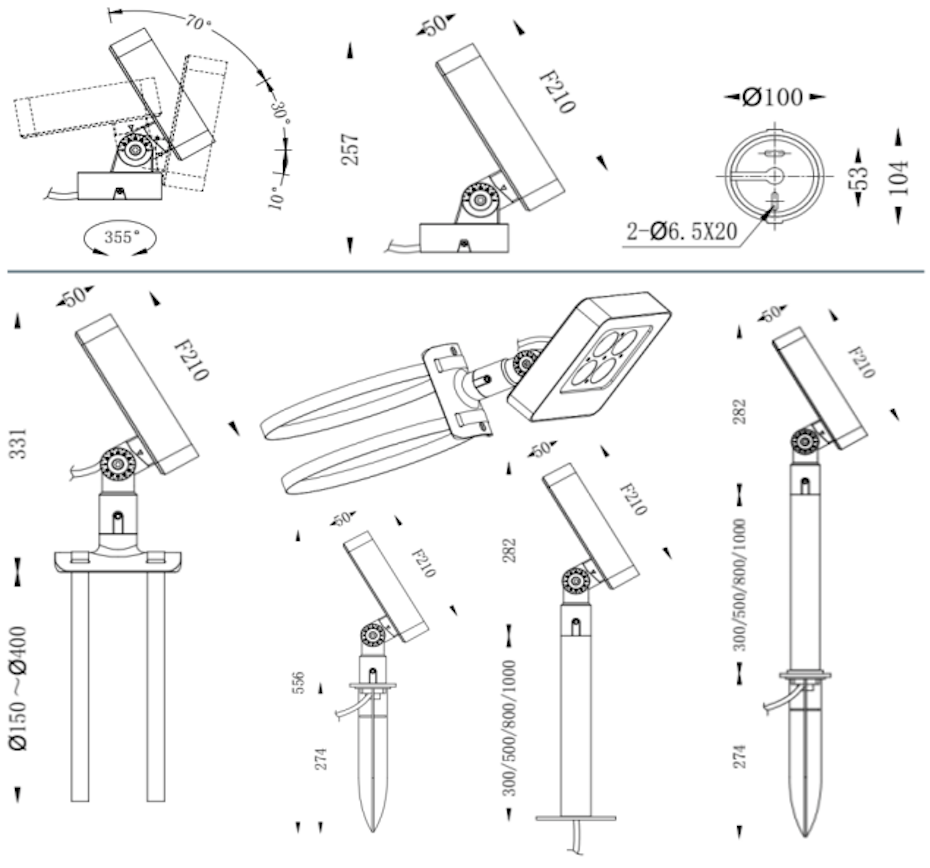

• Dimension: 210x210x257mm
• Voltage: 24VDC, 220-240VAC
• IP grading: IP66
• Dimmable options: 0-10V, TRIAC, DALI, PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
• Item No.: AL-3VSB
• LED type: 4x10W COB LED, 24pcs high power LED
• LED Chip: CREE,OSRAM,EPISTAR
• Power: 40W• Dimension: 210x210x257mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K 5000K 6000K
• Colors: RGB 3in1 DMX512, RGBW 4in1
• Beam angle: 3/8° 25 /40/60° • IP grading: IP66
• Dimmable options: 0-10V, TRIAC, DALI, PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
| Item No. | LED | Color | Voltage | Beam angle | Power | Cable |
| AL-3VSB-S | CREE 12x4W | Single Color | DC24V | 3/8° | 48W | 0.5M H05RN-F |
| CREE 12x4W | Single Color | 220-240VAC | 3/8° | 48W | 0.5M H05RN-F | |
| CREE 12x4W | Single Color | 220-240VAC TRIAC dimmable |
3/8° | 48W | 0.5M H05RN-F | |
| CREE 12x4W | Single Color | 220-240VAC 0-10V dimmable |
3/8° | 48W | 0.5M H05RN-F | |
| CREE 12x4W | Single Color | 220-240VAC DALI dimmable |
3/8° | 48W | 0.5M H05RN-F | |
| CREE 12x4W | Single Color DMX512 | DC24V | 3/8° | 48W | 0.5M H05RN-F | |
| CREE 12x4W | Single Color DMX512 | 220-240VAC | 3/8° | 48W | 0.5M H05RN-F | |
| CREE 12x4W | RGBW 4in1 DMX512 | DC24V | 3/8° | 48W | 0.5M H05RN-F | |
| CREE 12x4W | RGBW 4in1 DMX512 | 220-240VAC | 3/8° | 48W | 0.5M H05RN-F | |
| AL-3VSB-R | CREE 4x10W | Single Color | DC24V | 3/8° | 40W | 0.5M H05RN-F |
| CREE 4x10W | Single Color | 220-240VAC | 3/8° | 40W | 0.5M H05RN-F | |
| CREE 4x10W | Single Color | 220-240VAC TRIAC dimmable |
3/8° | 40W | 0.5M H05RN-F | |
| CREE 4x10W | Single Color | 220-240VAC 0-10V dimmable |
3/8° | 40W | 0.5M H05RN-F | |
| CREE 4x10W | Single Color | 220-240VAC DALI dimmable |
3/8° | 40W | 0.5M H05RN-F | |
| CREE 4x10W | Single Color DMX512 | DC24V | 3/8° | 40W | 0.5M H05RN-F | |
| CREE 4x10W | Single Color DMX512 | 220-240VAC | 3/8° | 40W | 0.5M H05RN-F | |
| AL-3VSB-B | CREE 24x2W | Single Color | DC24V | 25 /40/60° | 48W | 0.5M H05RN-F |
| CREE 24x2W | Single Color | 220-240VAC | 25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x2W | Single Color | 220-240VAC TRIAC dimmable |
25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x2W | Single Color | 220-240VAC 0-10V dimmable |
25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x2W | Single Color | 220-240VAC DALI dimmable |
25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x2W | Single Color DMX512 | DC24V | 25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x2W | Single Color DMX512 | 220-240VAC | 25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x3W | RGB 3in1 DMX512 | DC24V | 25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x3W | RGB 3in1 DMX512 | 220-240VAC | 25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x3W | RGBW 4in1 DMX512 | DC24V | 25 /40/60° | 48W | 0.5M H05RN-F | |
| CREE 24x3W | RGBW 4in1 DMX512 | 220-240VAC | 25 /40/60° | 48W | 0.5M H05RN-F |
