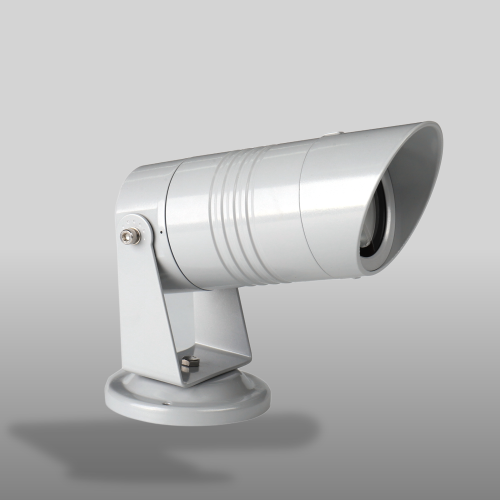

Landscape Spotlight

20W AL-3SC

20W LED Garden Spotlight

• Item No.:AL-3SC
• High-power LED: CREE 4x3W 4x5W
• COB LED: CREE 1x20W

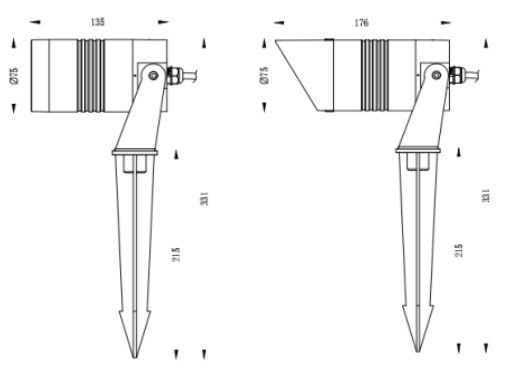

• Dimension:Ø65x135mm
• Voltage:12/24VDC,120VAC,240VAC
• Color temperature::2700K 3000K 4000K  5000K  6000K
• Colors:RGB 3in1 DMX512,RGBW 4in1
• Beam angle:15°/30° /45°/60°
• IP grading:IP65
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material.
• Warranty:3 years
• Certification:CE ROHS UKCA
    1.Use top brands of LED as light source-CREE COB LED,CREE & OSRAM high power LED,the lights have high lumen output and long lifetime.
    2.Various colors for choosing:2000K 2700K 3000K 4000K 5000K 6000K,RGB 3in1 DMX512,RGBW 4in1 DMX512.
    3.Support TRIAC,0-10V or DALI dimmable.
    4.IP65 protection,ideal for both indoor and outdoor lighting.

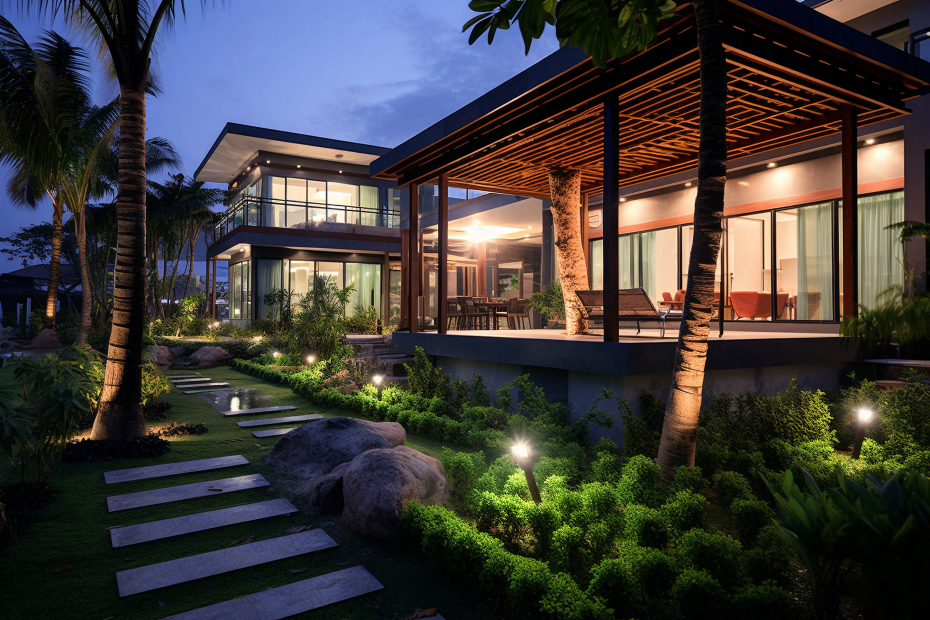

    5.Equipped with a garden spike,mounting base and strap,this light fixture can be fixed directly in soil or grass or be mounted to a wall and tree.
    6.Professional optical lighting control accessories make sure excellent lighting output.
    7.3 years warranty,CE ROHS UKCA certification.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3SC CREE 4x5W Single Color 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x5W Single Color DMX512 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x5W Single Color 220-240VAC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x3W RGB 3in1 12/24VDC 15/30/45/60° 12W 0.5M  H05RN-F
    CREE 4x3W RGB 3in1 DMX512 12/24VDC 15/30/45/60° 12W 0.5M  H05RN-F
    CREE 4x4W RGBW 4in1 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x4W RGBW 4in1 DMX512 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 1x20W Single Color 12/24VDC 15/30/45/60° 18W 0.5M  H05RN-F
    CREE 1x20W Single Color DMX512 12/24VDC 15/30/45/60° 18W 0.5M  H05RN-F
    CREE 1x20W Single Color 220-240VAC 15/30/45/60° 18W 0.5M  H05RN-F

    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3SCH CREE 4x5W Single Color 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x5W Single Color DMX512 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x5W Single Color 220-240VAC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x3W RGB 3in1 12/24VDC 15/30/45/60° 12W 0.5M  H05RN-F
    CREE 4x3W RGB 3in1 DMX512 12/24VDC 15/30/45/60° 12W 0.5M  H05RN-F
    CREE 4x4W RGBW 4in1 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 4x4W RGBW 4in1 DMX512 12/24VDC 15/30/45/60° 15W 0.5M  H05RN-F
    CREE 1x20W Single Color 12/24VDC 15/30/45/60° 18W 0.5M  H05RN-F
    CREE 1x20W Single Color DMX512 12/24VDC 15/30/45/60° 18W 0.5M  H05RN-F
    CREE 1x20W Single Color 220-240VAC 15/30/45/60° 18W 0.5M  H05RN-F
