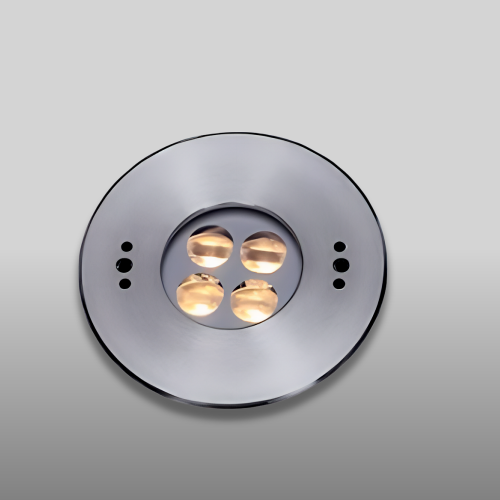

Recessed Underwater Light

4x2W AL-B4XA -C

4x2W LED Underwater Light With Overheat Sensor Protection

• Item No.:AL-B4XA
• LED:1pcs 8W COB LED,4pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:8W~15W
• Dimension:Ø135x58mm,Ø150x58mm
• Voltage:24VDC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:45|35°
• IP grading:IP68
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:SUS 316L stainless steel
• Warranty:3 years
• Certification:CE ROHS
    1.IP68 waterproof,perfec for swimming pool lighting
    2.Reliable CREE COB LED and high power LED as light source make sure the light‘s long lifetime and high lumen output
    3.Support DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect
    4.Various color optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%
    6.316L#titanium coated stainless steel cover & 316L# stainless steel housing & ABS sleeves material
    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability
    8.3 years warranty,CE ROHS certification
    9.With overheat sensor protection inside,the light fixture can be protected from high temperature

    Item No.

    LED

    Color

    Voltage

    Beam angle

    Power

    Power Cable





    AL-B4XA-C

    CREE 4x2W

    Single Color

    DC24V

    45|35°

    8.6W

    3M  H05RN-F

    EPISTAR 4x3W

    RGB 3in1

    DC24V

    45|35°

    12W

    3M  H05RN-F

    EPISTAR 4x3W

    RGB 3in1 DMX512

    DC24V

    45|35°

    12W

    3M  H05RN-F

    EPISTAR 4x4W

    RGBW 4in1

    DC24V

    45|35°

    16W

    3M  H05RN-F

    EPISTAR 4x4W

    RGBW 4in1 DMX512

    DC24V

    45|35°

    16W

    3M  H05RN-F
