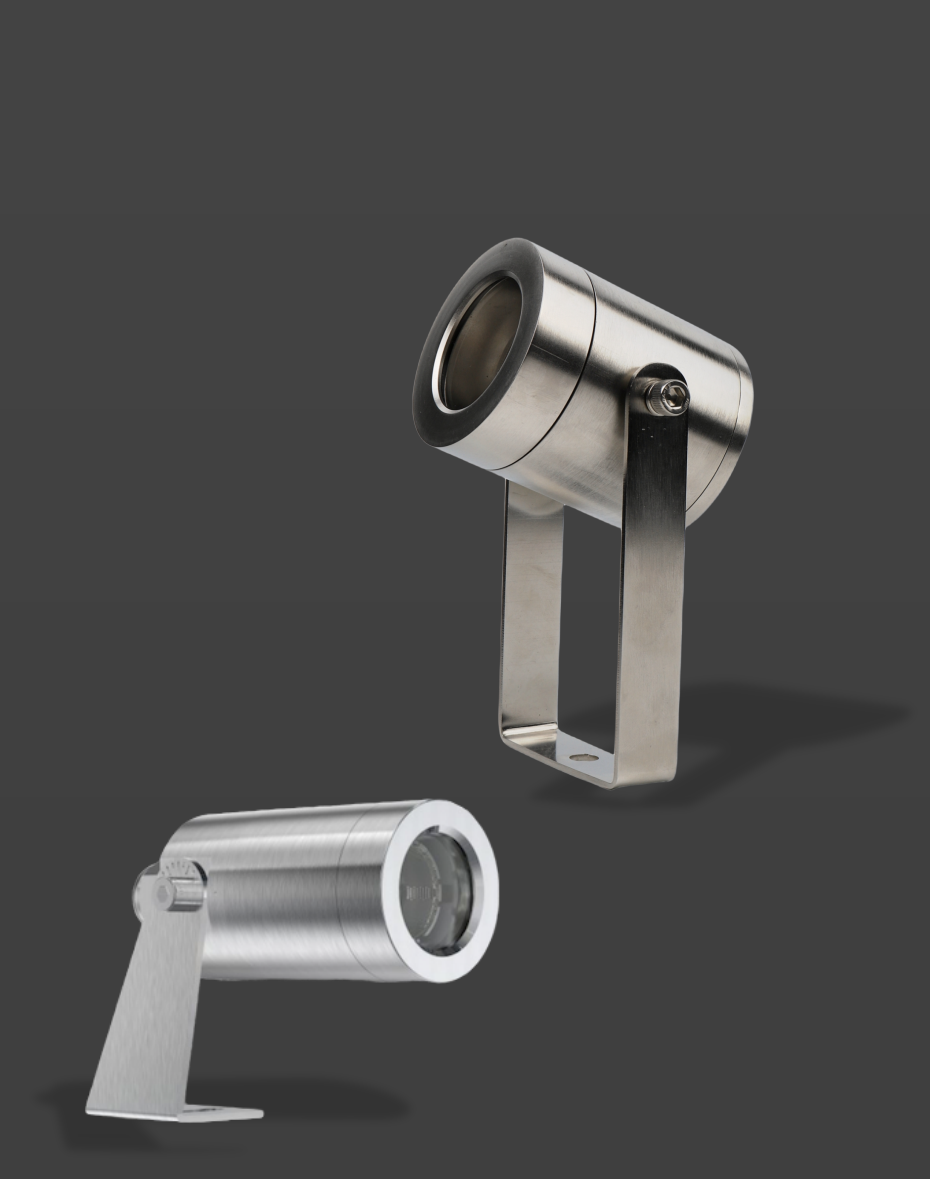

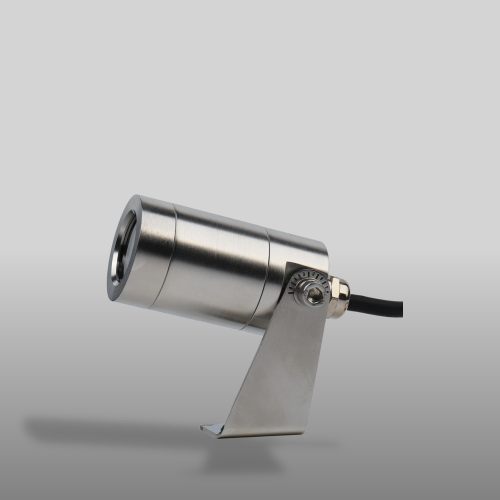

LED Underwater Flood Light

1x6W AL-5RA

1x6W LED Underwater Spotlight

• LED:1pcs COB LED,1pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:3-10W
• Item No.:AL-5RA/AL-5RB
• LED:9pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:3~10W
• Dimension:Ø42x75m  Ø65x75mm
• Voltage:24VDC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:15/30/45/60°
• IP grading:IP68
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:SUS 316 stainless steel
• Warranty:3 years
• Certification:CE ROHS
    1.IP68 waterproof,perfect for water lighting projects
    2.Reliable CREE COB LED and high power LED as light source make sure the light‘s long lifetime and high lumen output
    3.Support DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect
    4.Various color optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512
    5.Equipped  with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%
    6.316L#titanium coated stainless steel cover & 316L# stainless steel housing & 316# stainless steel bracket
    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability
    8.3 years warranty,CE ROHS certification
    9.With overheat sensor protection inside,the light fixture can be protected from high temperature
    10.Equipped with bracket,the fixture‘s lighting angle can be adjusted

    Item No. Dimension LED Color Voltage Beam angle  Power Cable
    AL-5RA Φ42x75mm CREE 1x3W Single Color DC24V 13/25/45/60° 2.6W 3M  H05RN-F
    EPISTAR 1x3W RGB 3in1 DC24V 13/25/45/60° 3W 3M  H05RN-F
    EPISTAR 1x4W RGB 3In1 DMX512 DC24V 13/25/45/60° 3.2W 3M  H05RN-F
    AL-5RB Φ65x75mm CREE 1x6W Single Color DC24V 10/25/45/60° 5.5W 3M  H05RN-F
    CREE 3x2W Single Color DC24V 10/25/45/60° 5.6W 3M  H05RN-F
    EPISTAR 3x3W RGB 3in1 DC24V 10/25/45/60° 8W 3M  H05RN-F
    EPISTAR 3x4W RGB 3In1 DMX512 DC24V 10/25/45/60° 10W 3M  H05RN-F
