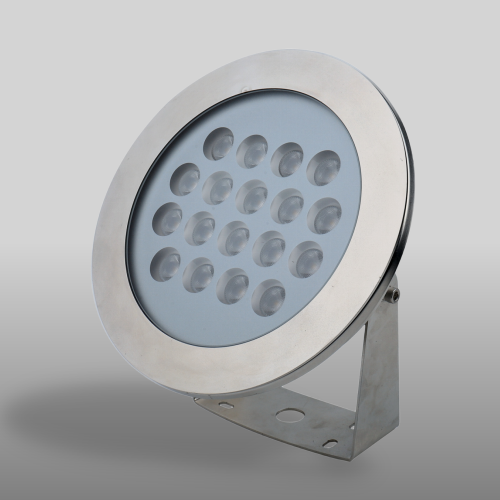

LED Underwater Flood Light

18x2W AL-5FA

1x45W LED Underwater Spotlight

• Item No.:AL-5FA
• LED:1pcs COB LED,18/36pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:40~54W

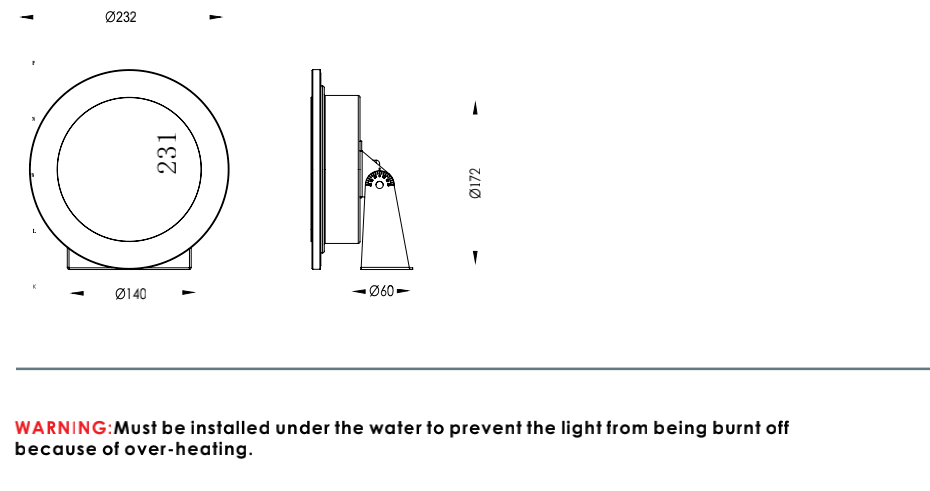

• Dimension:Ø232x172mm
• Voltage:24VDC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:15/30/45/60°
• IP grading:IP68
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:SUS 316 stainless steel
• Warranty:3 years
• Certification:CE ROHS

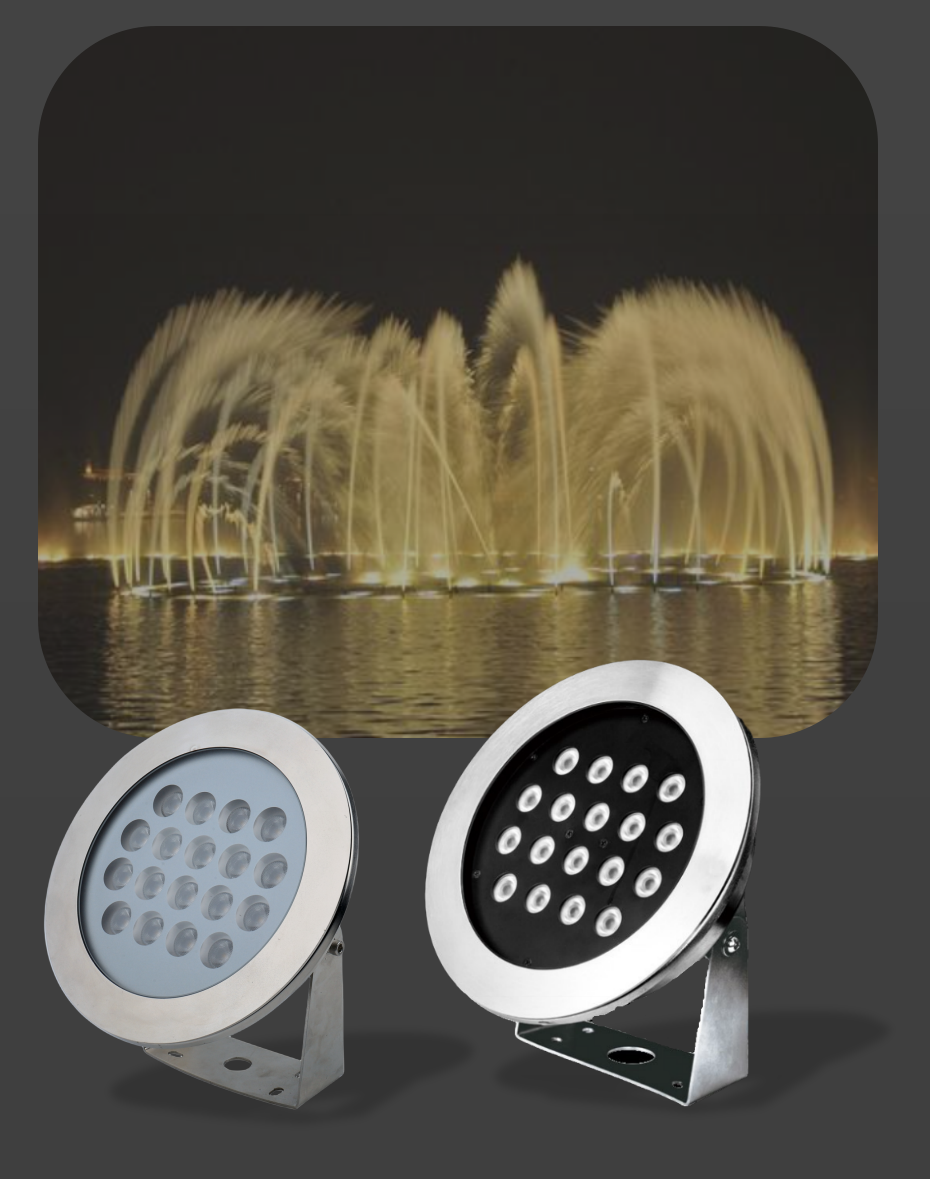

    1.IP68 waterproof,perfect for water lighting projects.

    2.Reliable CREE COB LED and high power LED as light source make sure the light‘s long lifetime and high lumen output.

    3.Support DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect.

    4.Various color optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512.

    5.Equipped  with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.

    6.316L#titanium coated stainless steel cover & 316L# stainless steel housing & 316# stainless steel bracket.

    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability.

    8.3 years warranty,CE ROHS certification.

    9.With overheat sensor protection inside,the light fixture can be protected from high temperature.

    10.Equipped with bracket,the fixture‘s lighting angle can be adjusted.


    Item No. LED Color Voltage Beam angle  Power Cable
    AL-5FA-R CREE 1x45W Single Color DC24V 15/25/36° 40W 3M  H05RN-F
    AL-5FA-B CREE 18x2W Single Color DC24V 10/25/45/60° 32W 3M  H05RN-F
    EPISTAR 18x3W RGB 3in1 DC24V 10/25/45/60° 32W 3M  H05RN-F
    EPISTAR 36x1.5W Single Color DC24V 10/25/45/60° 54W 3M  H05RN-F
