LED Uplight

AL-2C-C

• Product Code.:AL-2C-C
• LED: COB LED or high power LED
• LED Brand: CREE or OSRAM
• Power: 2W 4W 5W 6.5W 10W 15W
• Dimension: Ø32mm, Ø42mm, Ø50mm, Ø60mm, Ø80mm, Ø100mm
• Voltage: 12/24VDC, 220-240VAC
• Color: 2700K 3000K 4000K  5000K  6000K / Red / Green / Blue / RGBW 4in1 / RGB 3in1
• Beam Angle: 12°/24°/36°/55°
• Control: ON/OFF, DALI, TRIAC, 0-10V
• IP Rating: IP67

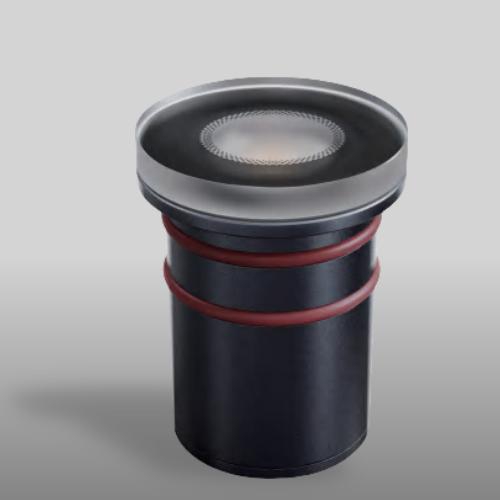

    Al-2C is a highly reliable underground light equipped with a variety of optical accessories. Customers can choose the following optics according to their own needs.
    1.Optical lens
    2.Optical lens + honeycomb
    3.Optical lens + grille
    4.Diffuser
    5.Trimless + frosted glass
    6.Trimless + frosted and silk print glass
    7.Walk over
    8.Driver over
    9.Half cover
    10.Optical lens + silk print glass
    Equipped with an anti-glare cup, the fixture delivers an excellent light spot without stray light. It supports DALI, Triac and 0-10V dimming. The color can be optional with 2200K, 2700K, 3000K, 4000K, 5000K, 6500K and RGBW. Using tempered glass and SUS316 stainless steel trim, the IK level of the fixture can reach IK08 and IK10. The IP rating of the entire fixture can get to IP67, making it a perfect choice for outdoor lighting application. It can perfectly illuminate some spaces like parks, roads, gardens, squares and villas.

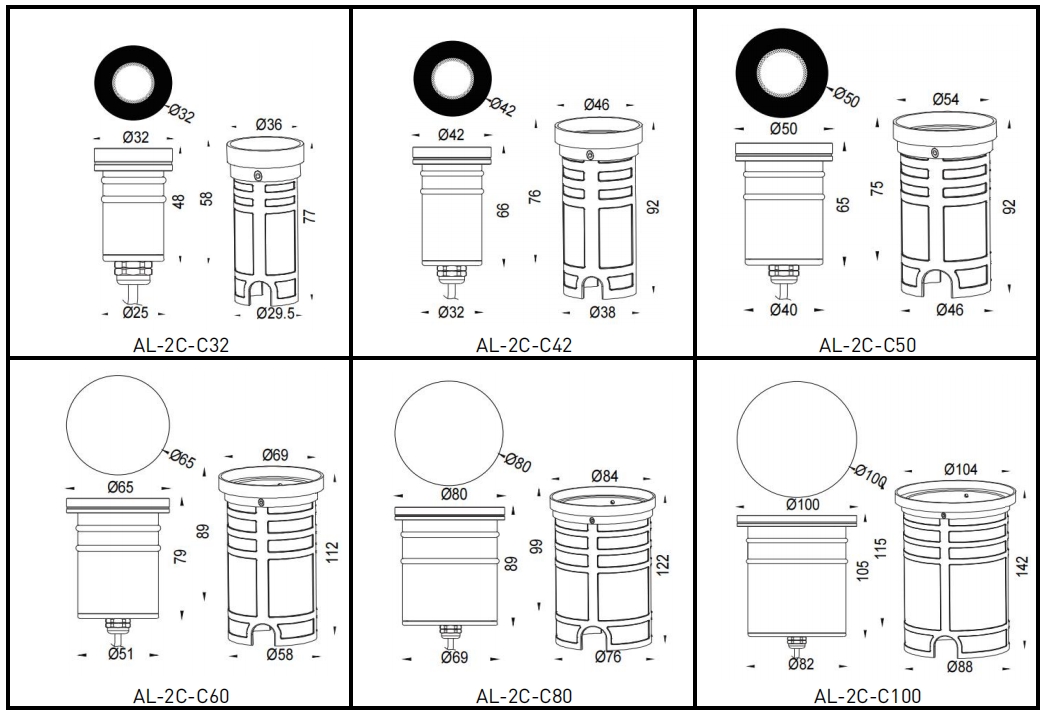

    Product Code LED Color Voltage Beam Angle
    AL-2C-C32 CREE 1x2W 2200-6500K
    R/G/B
    12/24VDC 10°/15°/20°/30°/40°/60°/10*45°/25*45°
    AL-2C-C42 CREE 1x4W 2200-6500K
    R/G/B
    12/24VDC
    220-240VAC
    15°/24°/36°/55°
    OSRAM 1x3W RGB 3in1 12/24VDC 25°/40°/60°
    OSRAM 1x4W RGBW 4in1 12/24VDC 25°/40°/60°
    AL-2C-C50 CREE 1x5W 2200-6500K
    R/G/B
    12/24VDC
    220-240VAC
    15°/24°/36°/55°
    OSRAM 1x5W RGB 3in1 12/24VDC 25°/40°/60°
    OSRAM 1x5W RGBW 4in1 12/24VDC 25°/40°/60°
    AL-2C-C65 CREE 1x7W 2200-6500K
    R/G/B
    12/24VDC
    220-240VAC
    15°/24°/36°/55°
    OSRAM 1x8W RGB 3in1 12/24VDC 25°/40°/60°
    OSRAM 1x8W RGBW 4in1 12/24VDC 25°/40°/60°
    AL-2C-C80 CREE 1x10W 2200-6500K
    R/G/B
    12/24VDC
    220-240VAC
    15°/24°/36°/55°
    OSRAM 1x8W RGB 3in1 12/24VDC 25°/40°/60°
    OSRAM 1x8W RGBW 4in1 12/24VDC 25°/40°/60°

    AL-2C-C100
    CREE 1x15W 2200-6500K
    R/G/B
    12/24VDC
    220-240VAC
    15°/24°/36°/55°
    OSRAM 1x8W RGB 3in1 12/24VDC 25°/40°/60°
    OSRAM 1x8W RGBW 4in1 12/24VDC 25°/40°/60°
