Step Light

3W AL-1DSB

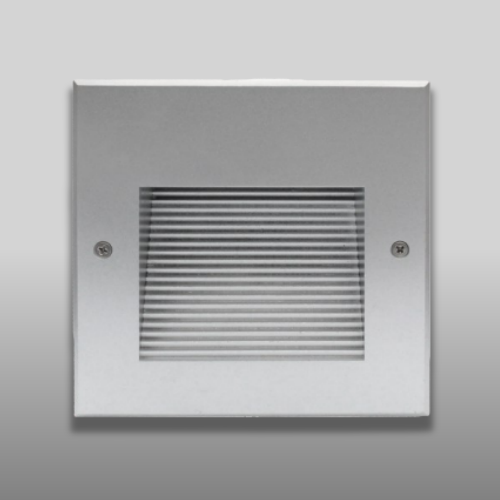

3W Recessed LED Wall Light

• Item No.:AL-1DSB
• LED:24xSMD2835 OSRAM LED
• LED chip:OSRAM EPISTAR
• Power:3W
• Dimension:160x160x79mm
• Voltage:24VDC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:120°
• IP grading:IP65
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material
• Warranty:2 years
• Certification:CE ROHS
    1. IP65 waterproof,it can be used for both indoor and outdoor lighting
    2. OSRAM 2835SMD LED as light source,the light fixture has a very soft lighting effect
    3. 2200-6500K, RGB 3in1 various color optional
    4. DALI, PWM, 0-10V, Triac dimmable, DMX512 controllable
    5. Die-casting aluminum housing and ABS sleeve
    6. CE, ROHS, UKCA certification
    7. 5 years warranty
    8. Easy to install and maintain
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-1DSB 24xSMD2835 OSRAM Single Color 24VDC 120°  2.3W 0.5M  H05RN-F
    24xSMD2835 OSRAM Single Color 220-240VAC 120°  2.3W 0.5M  H05RN-F
