Linear Inground Light

36W AL-2ELA

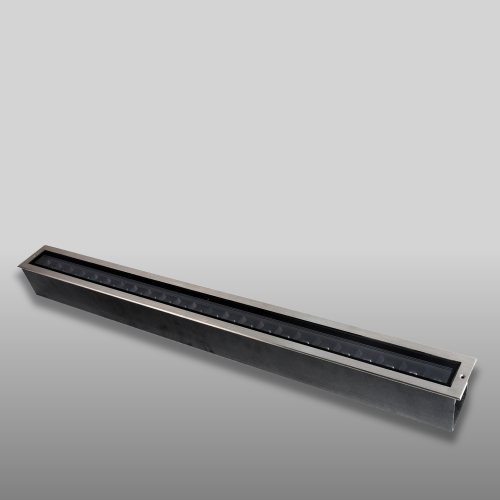

36W High Power Linear LED Underground Light

• Item No.:AL-2ELA
• LED:6/12/24pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:10W/20W/36W

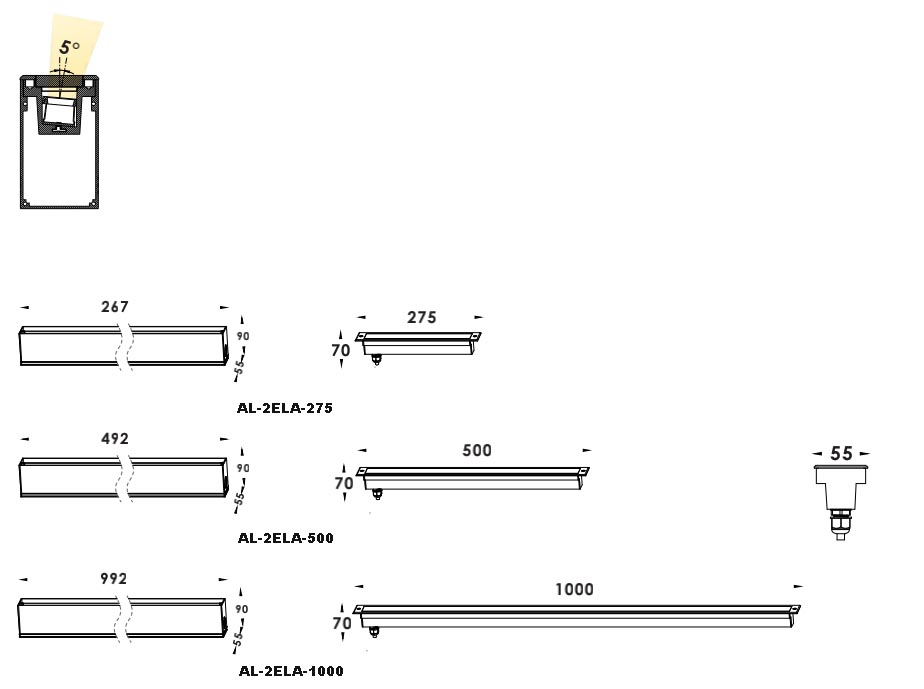

• Dimension:55x70x275mm,55x70x500mm,55x70x1000mm
• Voltage:24VDC,220-240VAC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:10/25/45/60°  20*40/20*60/45|35°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material+316 stainless steel+ABS
• Warranty:3 years
• Certification:CE ROHS UKCA
    1.Reliable light source of CREE & OSRAM & EPISTAR high power LED make sure the light‘s long lifetime and high lumen output.
    2.IP67 waterproof,perfect for used in outdoor park,square,road,building lighting.
    3.Various color optional:2200K 2700K 3000K 4000K 5000K 6000K,RGB DMX512,RGB 3in1 DMX512,RGBW 4in1 DMX512.
    4.Supporting DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect.
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.
    6.316L#Titanium coated stainless steel cover & high strength ACD12# die-casting aluminum with Tiger powder paint & ABS sleeve materials.
    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability.
    8.Symmetrical & asymmetrical lens,various beam angle for choosing:10/25/45/60°   20*40/20*60/45|35°.
    9.3 years warranty,CE ROHS,UKCA certification.
    10.Linear bar shape,nice lighting effect.

    Item No. LED Color Voltage Beam angle  Power Cable
    AL-2ELA-275 CREE 6x2W Single Color 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 10W 0.5M  H05RN-F
    CREE 6x2W Single Color 220-240VAC 10/25/45/60°
     20*40/20*60/45|35°    		 10W 0.5M  H05RN-F
    EPISTAR 6x2W RGB DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 10W 0.5M  H05RN-F
    EPISTAR 6x3W RGB 3in1 DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 10W 0.5M  H05RN-F
    EPISTAR 6x4W RGBW 4in1 DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 10W 0.5M  H05RN-F
    AL-2ELA-500 CREE 12x2W Single Color 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 20W 0.5M  H05RN-F
    CREE 12x2W Single Color 220-240VAC 10/25/45/60°
     20*40/20*60/45|35°    		 20W 0.5M  H05RN-F
    EPISTAR 12x2W RGB DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 20W 0.5M  H05RN-F
    EPISTAR 12x2W RGBW DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 20W 0.5M  H05RN-F
    EPISTAR 12x3W RGB 3in1 DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 20W 0.5M  H05RN-F
    EPISTAR 12x4W RGBW 4in1 DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 20W 0.5M  H05RN-F
    AL-2ELA-1000 CREE 24x2W Single Color 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 36W 0.5M  H05RN-F
    CREE 24x2W Single Color 220-240VAC 10/25/45/60°
     20*40/20*60/45|35°    		 36W 0.5M  H05RN-F
    EPISTAR 24x2W RGB DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 36W 0.5M  H05RN-F
    EPISTAR 24x2W RGBW DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 36W 0.5M  H05RN-F
    EPISTAR 24x3W RGB 3in1 DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 36W 0.5M  H05RN-F
    EPISTAR 24x4W RGBW 4in1 DMX512 24VDC 10/25/45/60°
     20*40/20*60/45|35°    		 36W 0.5M  H05RN-F
