Linear Inground Light

36W AL-2HL

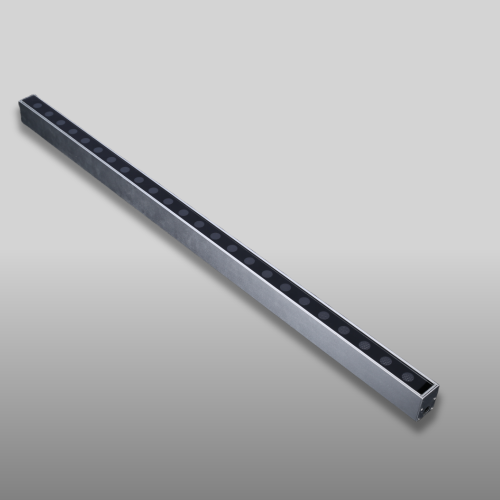

8-36W High Power Linear LED Underground Light

• Item No.:AL-2HL
• LED:6/12/24pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:8W/18W/36W

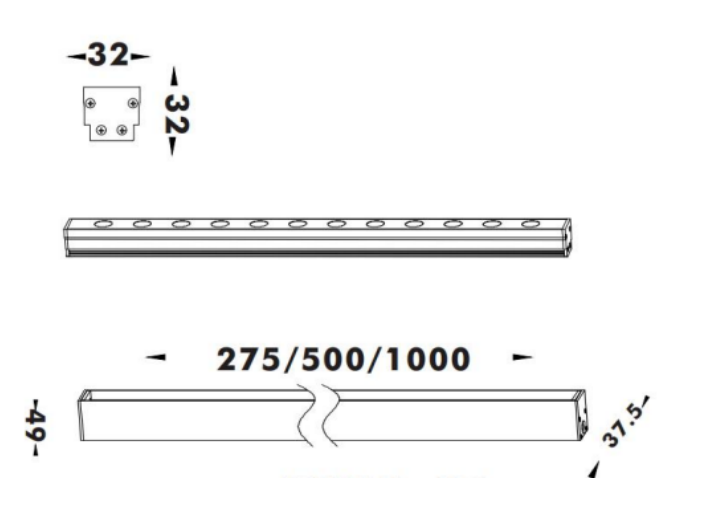

• Dimension:32x32x275mm,32x32x500mm,32x32x1000mm
• Voltage:24VDC,220-240VAC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:Red, Green, Blue, Amber
• Beam angle:10*15°/10*30°/10*45°/10*60°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material+316 stainless steel+ABS
• Warranty:3 years
• Certification:CE ROHS UKCA
    1.Reliable light source of CREE & OSRAM & EPISTAR high power LED make sure the light‘s long lifetime and high lumen output.
    2.IP67 waterproof,perfect for used in outdoor park,square,road,building lighting.
    3.Various color optional:2200K 2700K 3000K 4000K 5000K 6000K.
    4.Supporting DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect.
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.
    6.316L#Titanium coated stainless steel cover & high strength ACD12# die-casting aluminum with Tiger powder paint & ABS sleeve materials.
    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability.
    8.Symmetrical & asymmetrical lens,various beam angle for choosing: 10*15°/10*30°/10*45°/10*60°.
    9.3 years warranty,CE ROHS,UKCA certification.

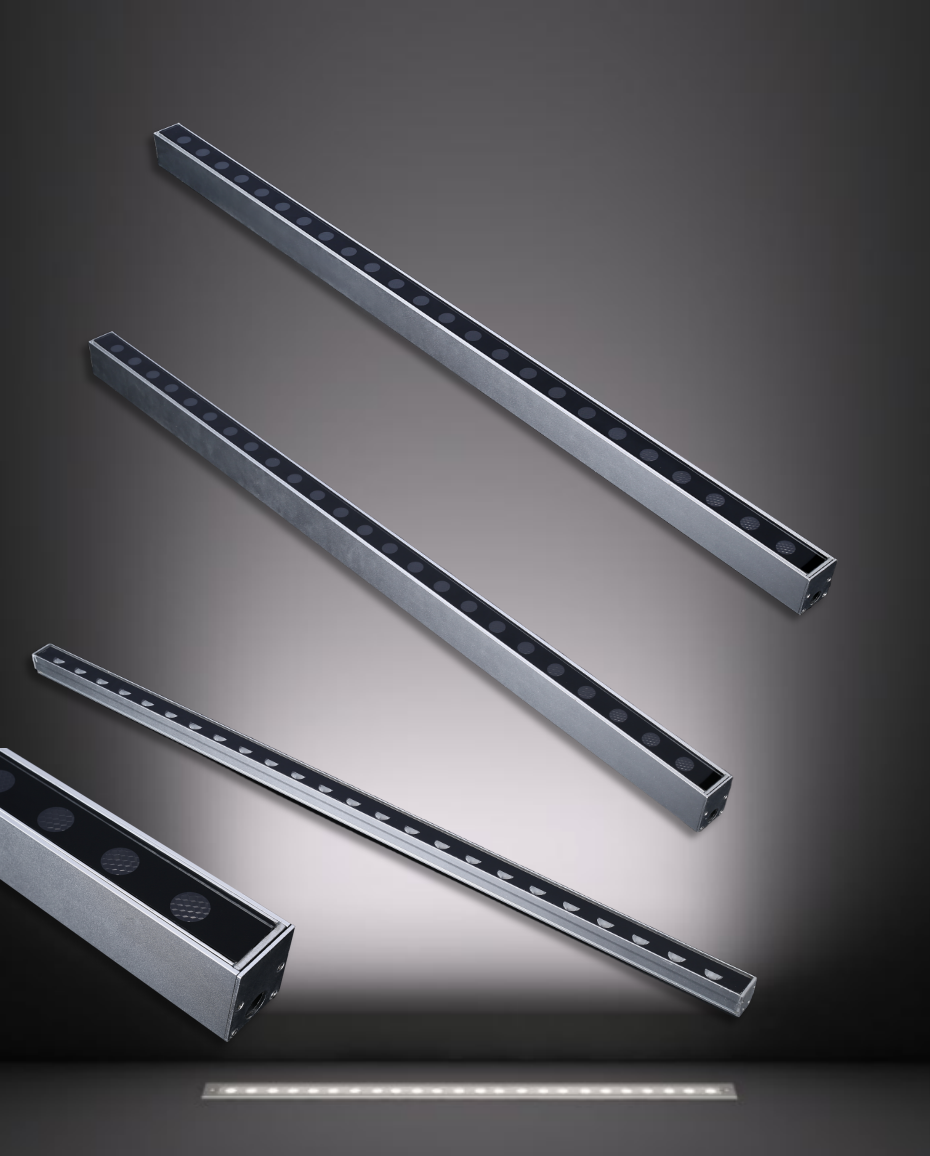

    10.Linear bar shape,nice lighting effect.

    Item No.

    LED

    Color

    Voltage

    Beam angle

    Power

    Cable

    AL-2ELA-275

    CREE 6 x1.5W

    Single Color

    24VDC

    10*15°/10*30°/10*45°/10*60°

    8W

    0.5M  H05RN-F

    AL-2ELA-500

    CREE 12 x1.5W

    Single Color

    24VDC

    10*15°/10*30°/10*45°/10*60°

    18W

    0.5M  H05RN-F

    AL-2ELA-1000

    CREE 24 x1.5W

    Single Color

    24VDC

    10*15°/10*30°/10*45°/10*60°

    36W

    0.5M  H05RN-F
