Linear Light
ASTRO-L8835-LN
• Product Code: ASTRO-L8835-LN
• Power: 28W
• Voltage: AC 200-240V
• Luminous Flux: 2800-2940lm
• Luminous Flux: 2800-2940lm
• Efficiency: 100-105lm/W

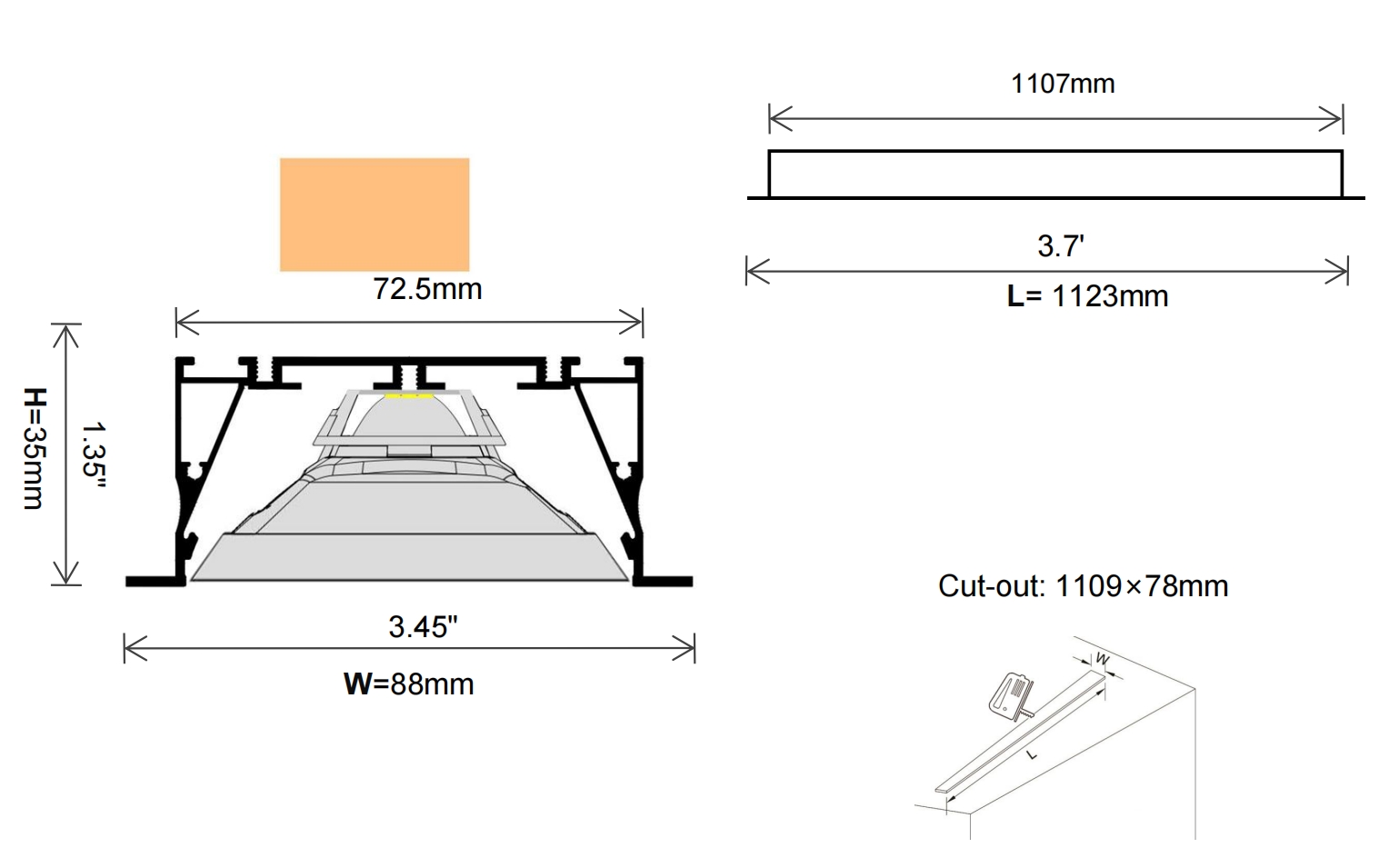

• Dimension: L=1123mm, W=88mm, H=35mm
• Color Rendering Index: CRI 90+
• Uniform Glare Valux: UGR<19
• Color Rendering Index: CRI 90+
• Uniform Glare Valux: UGR<19
• Distribute: 100% direct
• Optics: 50° lens
• Beam Angle: direct 70°
• Optics: 50° lens
• Beam Angle: direct 70°
• Control: ON/OFF
• Operating Temperature: -20 to 55°C
• Material: aluminum + PMMA
• Material: aluminum + PMMA

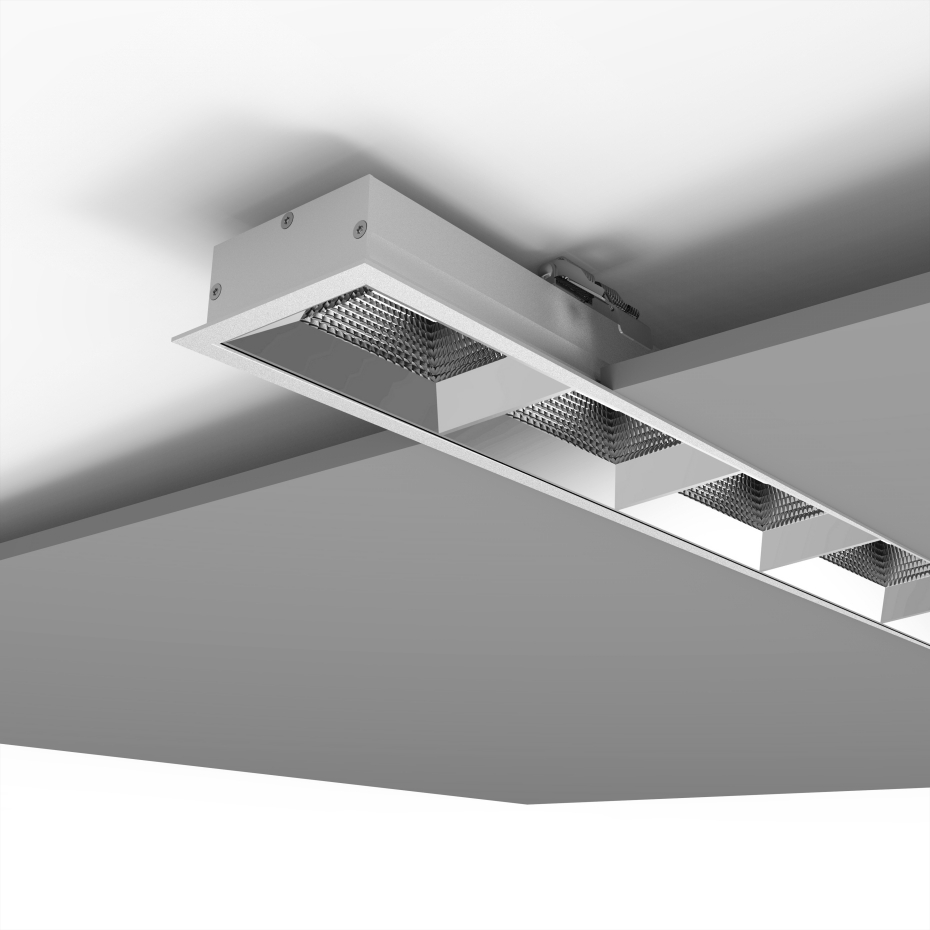

ASTRO linear light is an ideal choice for office lighting with recessed mounting installation. The fixture delivers high efficiency and extraordinary lighting performance with optical lens. The light source provides multiple color temperature options : 2700K, 3000K, 4000K, 5700K. The extruded aluminum housing is available in a range of finishes.
| Product No. | ASTRO-L8835-LN |
| Material | Aluminum+PMMA |
| Product Size | L1123 x W88 x H35MM |
| Installation | Recessed |
| Input Voltage | AC 200-240V |
| Power | 28W |
| Luminous Flux | 2800-2940lm |
| Efficiency | 100-105 lm/W |
| Optic | 70° lens |
| Beam Angle | Direct 70° |
| Uniform Glare Value | UGR≤19 |
| Color Temperature | 2700K / 3000K / 4000K / 5700K |
| Color Rendering Index | CRI 90+ |
| Control | ON/OFF |
| IP Rating | IP20 |
| Housing Finish | Black(RAL 9005) / White(RAL 9016) / Gray(RAL 9006) |
| Operating Temperature Range | -20 to 55°C
|
| LED | LUMILEDS SMD LED |
| R9 | R9>67 |
| Lifespan | L80B50 50,000hours |
| Driver Power Factor | >0.95 |
| Driver Efficiency | ≥88% |
| THD | <15% |
| Electrical Protection | II |
| Mains Surge Capability | 1KV |
| Photobiological Risk Group | RG0 |
| Warranty | 5 Years |
