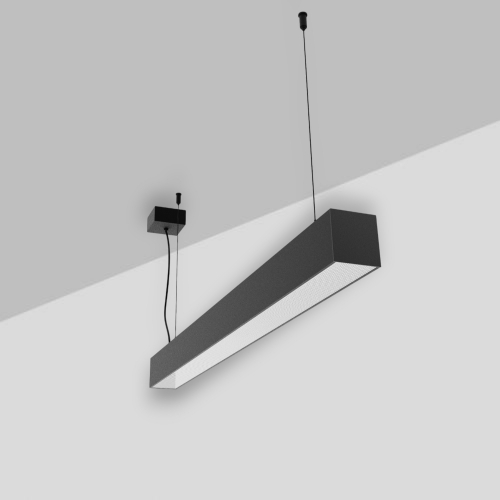

Linear Light

STLAR-L8085-MP

• Product Code: STLAR-L8085-MP
• Power: 36W
• Voltage: AC 200-240V
• Luminous Flux: 3780-3960lm
• Efficiency: 105-110lm/W

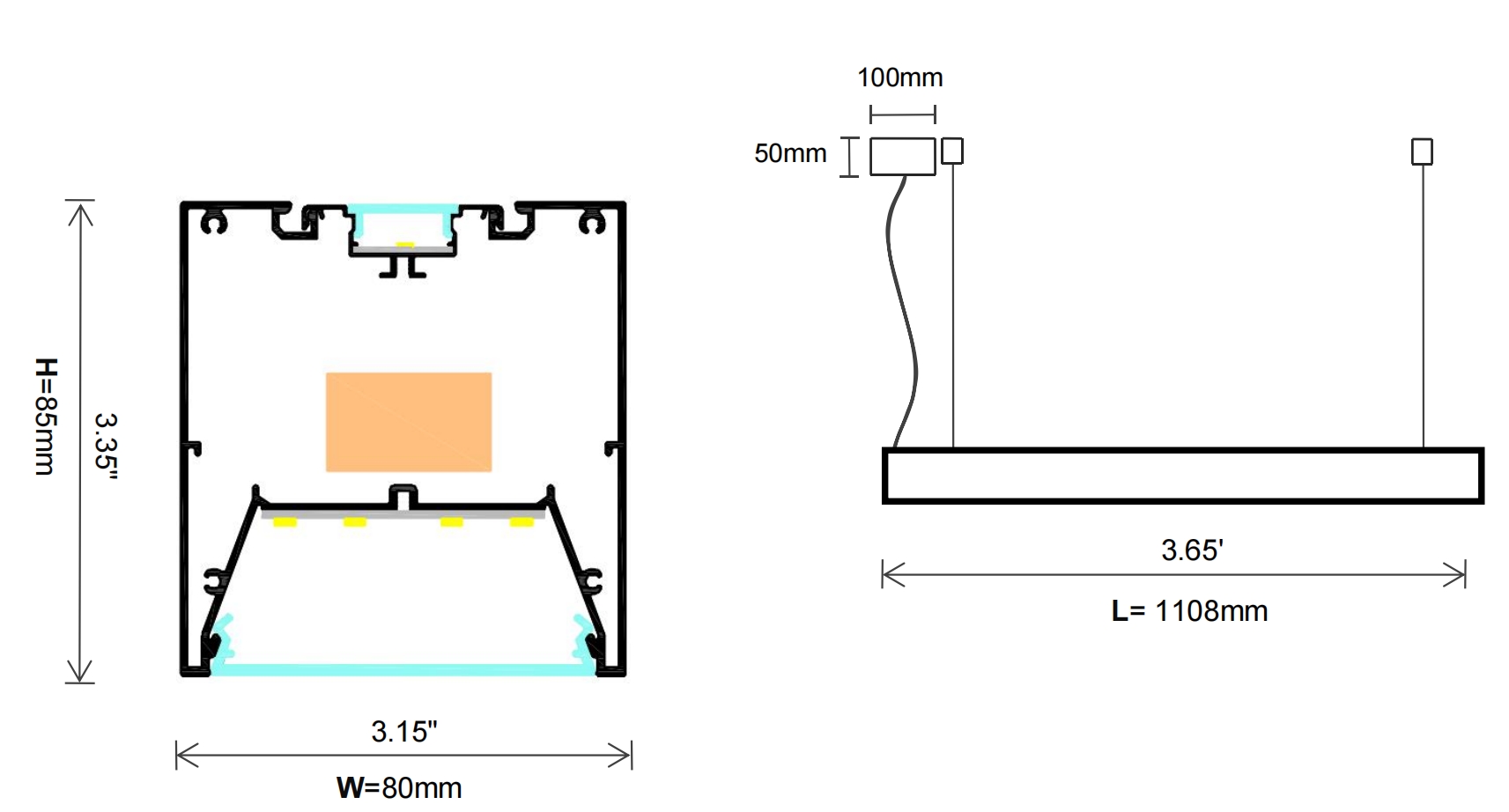

• Dimension: L=1108mm, W=80mm, H=85MM
• Color Rendering Index: CRI 90+
• Uniform Glare Valux: UGR<25
• Distribute: 70% direct, 30% indirect
• Optics: 90° microprismatic
• Beam Angle: direct 90°, indirect 90°
• Control: ON/OFF
• Operating Temperature: -20 to 55°C
• Material: aluminum + PC + PMMA
    STLAR linear light is an ideal choice for technical lighting especially for office and architectural lighting space. The fixture delivers high efficiency and extraordinary lighting performance with optical lens. The light source provides multiple color temperature options : 2700K, 3000K, 4000K, 5700K. The extruded aluminum housing is available in a range of finishes. The fixture can be installed both as suspended and surface mounted.







    Product No. STLAR-L8085-MP
    Material Aluminum+PMMA + PC
    Product Size L1108 x W80 x H85MM
    Installation Suspended / Surface
    Input Voltage AC 200-240V
    Power 36W
    Luminous Flux 3780-3960lm
    Efficiency 105-110 lm/W
    Optic 90° microprismatic
    Beam Angle 70% direct, 30% indirect
    Uniform Glare Value UGR≤19
    Color Temperature 2700K / 3000K / 4000K / 5700K
    Color Rendering Index CRI 90+
    Control ON/OFF
    IP Rating IP25
    Housing Finish Black(RAL 9005) / White(RAL 9016) / Gray(RAL 9006)
    Operating Temperature Range -20 to 55°C

    LED LUMILEDS SMD LED
    R9 R9>67
    Lifespan L80B50 50,000hours
    Driver Power Factor >0.95
    Driver Efficiency ≥88%
    THD <15%
    Electrical Protection II
    Mains Surge Capability 1KV
    Photobiological Risk Group RG0
    Warranty 5 Years
