Linear Light

STLAR-L70100-BL

• Product Code: STLAR-L70100-BL
• Power: 45W
• Voltage: AC 200-240V
• Luminous Flux: 2660-2800lm
• Efficiency: 55-65lm/W

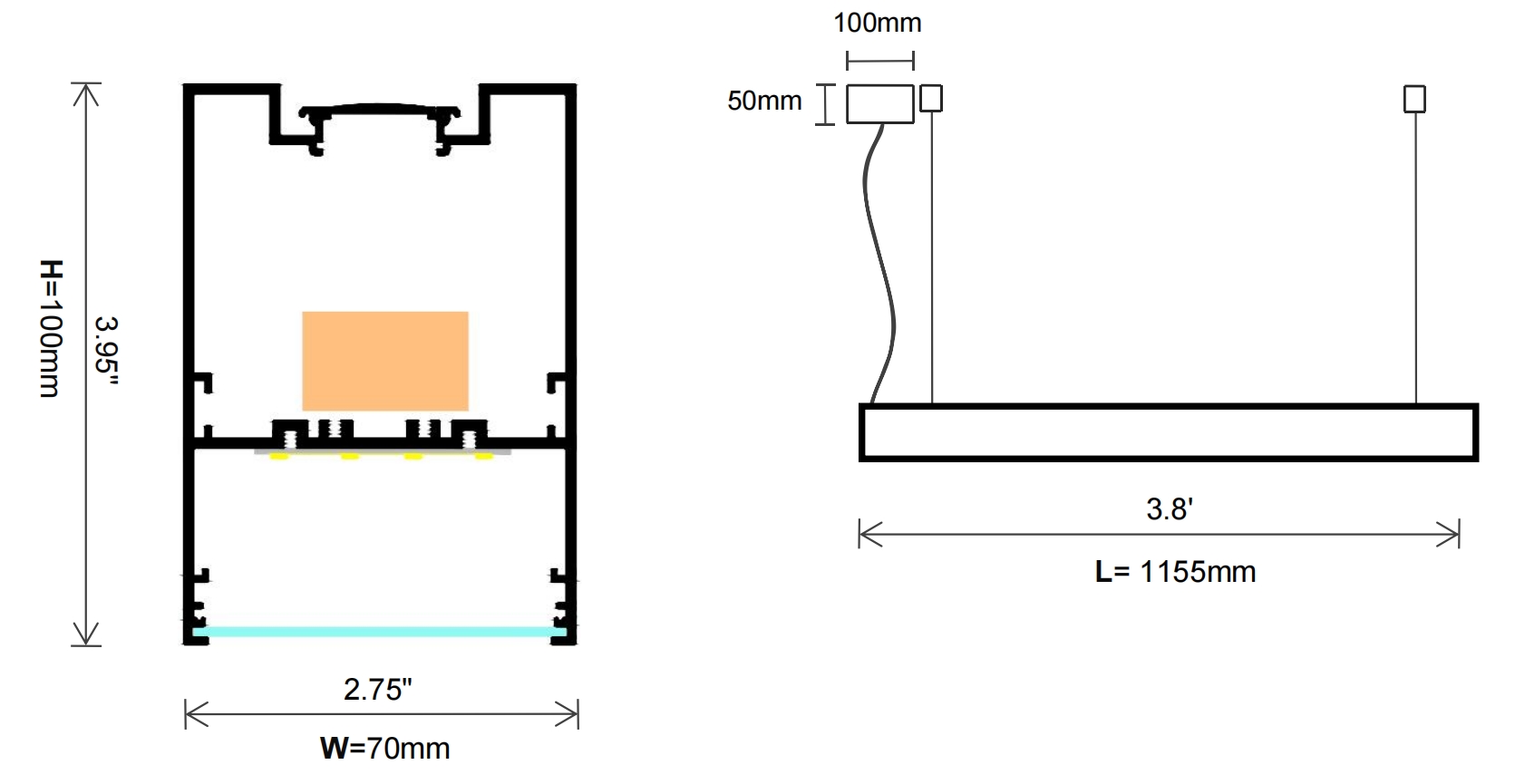

• Dimension: L=1155mm, W=70mm, H=100mm
• Color Rendering Index: CRI 90+
• Uniform Glare Valux: UGR<19
• Optics: 90° blade louver
• Beam Angle: direct 90°
• Distribution: 100% direct
• Control: ON/OFF
• Operating Temperature: -20 to 55°C
• Material: aluminum + PC

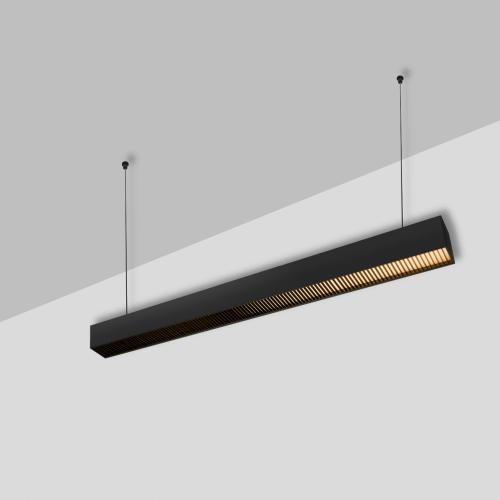

    STLAR-L70100-BL is a pendant linear fixture with blade louver. We have optimized the position of the LEDs, so the fixture can delivery an uniform light and extraordinary anti-glare lighting effect. It comes in black, white and gray options and has two suspension points that are adjustable in height. The light source provides multiple CCT options: 2700K, 4000K and 5700K. It is a perfect choice for lighting in spaces such as offices, meeting rooms, living rooms, and dining rooms.





    Product No. STLAR-L70100-BL
    Material Aluminum + PC
    Product Size L1155 x W70 x H100MM
    Installation Suspended / Surface
    Input Voltage AC 200-240V
    Power 45W
    Luminous Flux 2475-2925lm
    Efficiency 55-65 lm/W
    Optic 90° blade louver
    Beam Angle Direct 90°
    Uniform Glare Value UGR<19
    Color Temperature 2700K / 3000K / 4000K / 5700K
    Color Rendering Index CRI 90+
    Control ON/OFF
    IP Rating IP20
    Housing Finish Black(RAL 9005) / White(RAL 9016) / Gray(RAL 9006)
    Operating Temperature Range -20 to 55°C

    LED LUMILEDS SMD LED
    R9 R9>67
    Lifespan L80B50 50,000hours
    Driver Power Factor >0.95
    Driver Efficiency ≥88%
    THD <15%
    Electrical Protection II
    Mains Surge Capability 1KV
    Photobiological Risk Group RG0
    Warranty 5 Years
