Linear Light

SLIM-L4685-1S1L1S

• Product Code: SLIM-L4685-1S1L1S
• Power: 36W
• Voltage: AC 200-240V
• Luminous Flux: 2880-3060lm
• Efficiency: 80-85lm/W
• Dimension: L=1150mm, W=46mm, H=85mm
• Color Rendering Index: CRI 90+
• Uniform Glare Valux: UGR<16
• Optics: 50° lens + 20° rotatable spotlights (combination)
• Beam Angle: direct 48° + 20°
• Distribution: 100% direct
• Control: ON/OFF
• Operating Temperature: -20 to 55°C
• Material: aluminum + PMMA

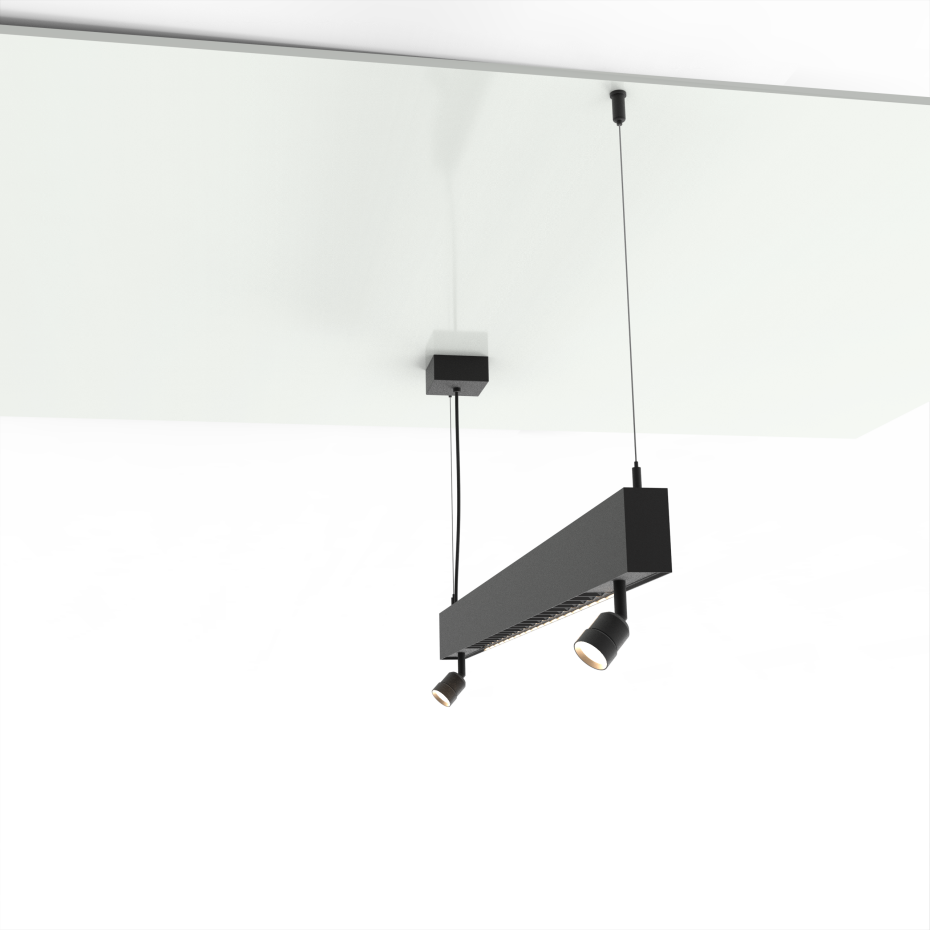

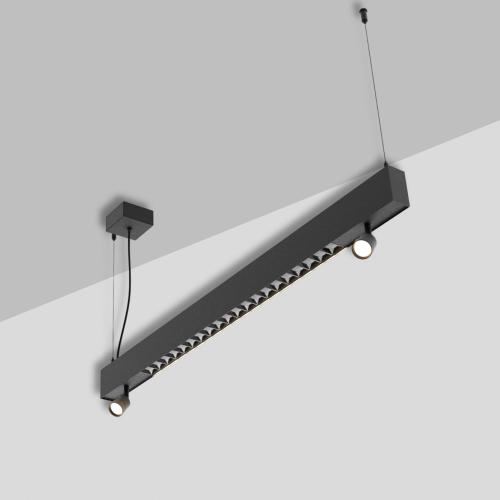

    SLIM-L4685 is a slim suspended linear fixture with various optical accessory options:
    SLIM-L4685-LN: with optical lens
    SLIM-L4685-MP: with microprismatic diffuser
    SLIM-L4685-1S1L1S: with a combination of rotatable spotlights and reflector cups
    We have optimized the position of the LEDs so that the fixture can delivery an uniform light and extraordinary anti-glare lighting effect.
    It comes in black, white and gray options and has two suspension points that are adjustable in height. The light source provides multiple CCT options: 2700K, 4000K and 5700K. It is a perfect choice for lighting in spaces such as offices, meeting rooms, living rooms, and dining rooms.
    Product No. SLIM-L4685-1S1L1S
    Material Aluminum + PMMA

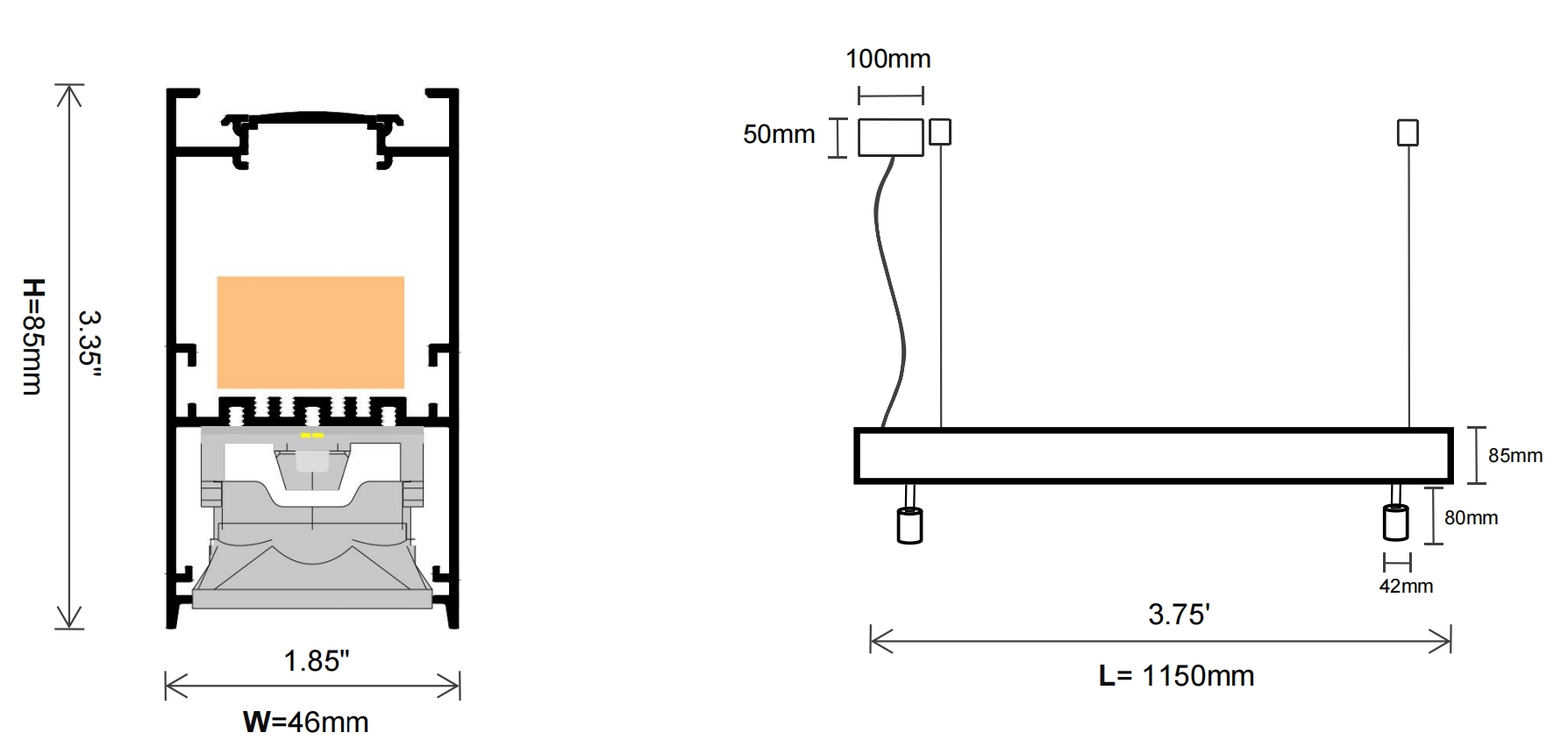

    Product Size L1150 x W46 x H85MM
    Installation Suspended / Surface
    Input Voltage AC 200-240V
    Power 36W
    Luminous Flux 2520-2700lm
    Efficiency 70-75 lm/W
    Optic 50° lens + 20° rotatable spotlights (combination)
    Beam Angle Direct 50° + 20°
    Uniform Glare Value UGR<16
    Color Temperature 2700K / 3000K / 4000K / 5700K
    Color Rendering Index CRI 90+
    Control ON/OFF
    IP Rating IP20
    Housing Finish Black(RAL 9005) / White(RAL 9016) / Gray(RAL 9006)
    Operating Temperature Range -20 to 55°C

    LED LUMILEDS SMD LED
    R9 R9>67
    Lifespan L80B50 50,000hours
    Driver Power Factor >0.95
    Driver Efficiency ≥88%
    THD <15%
    Electrical Protection II
    Mains Surge Capability 1KV
    Photobiological Risk Group RG0
    Warranty 5 Years
