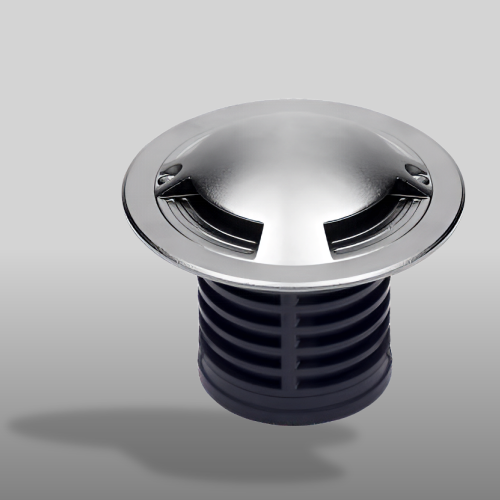

Drive Over Light

1.6-6W AL-E2CD4

1.6-6W Side-lighting LED Walkover Light

• Item No.:AL-E2CD4
• LED:16x2835 OSRAM SMD led or 3x2W high-power led
• Power:1.6-6W

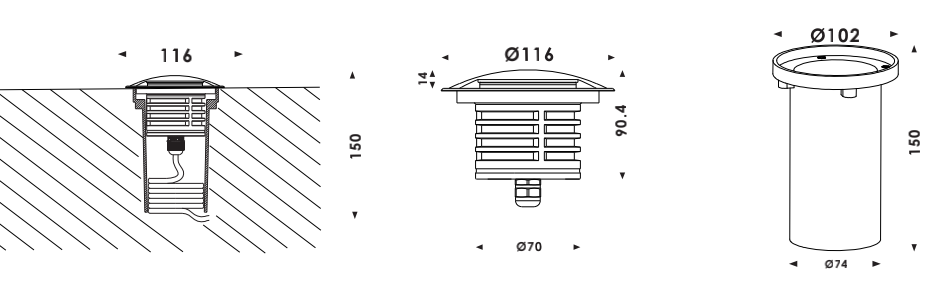

• Dimension:Ø116x90.4mm
• Voltage:12/24VDC,220-240VAC
• Color:2700K 3000K 4000K  5000K  6000K RGB 3in1
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material+316 stainless steel+ABS
• Warranty:3 years
• Certification:CE ROHS UKCA
    1.Reliable light source of CREE  & EPISTAR high power LED make sure the light‘s long lifetime and high lumen output.
    2.IP67 waterproof,perfect to outdoor park,square,road,building lighting,road lighting.
    3.Various color optional:2200K 2700K 3000K 4000K 5000K 6000K,RGB DMX512,RGB 3in1 DMX512.
    4.Support DMX512,1-10V,DALI,TRIAC or PWM dimming system, bring smooth and soft dimming effect.
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.
    6.SUS316 stainless steel cover,high strength ADC 12# die-casting aluminum housing ,ABS sleeve,environmental materials.
    7.Top brands of electrical components to guarantee the luminous stability and low breakdown probability.
    8.Three ways of lighting:One way,two ways,four ways side-lighting.
    9.3 years warranty,CE ROHS,UKCA certification.
    Item No. LED Color Voltage Lighting Side Power Cable
    AL-E2CD4-D 16xSMD2835 OSRAM Single Color 24VDC Four ways 1.6W 0.5M  H05RN-F
    16xSMD2835 OSRAM Single Color 220-240VAC Four ways 1.5W 0.5M  H05RN-F
    6xSMD2835 OSRAM RGB 3in1 24VDC Four ways 1.3W 0.5M  H05RN-F
    AL-E2CD4-B 3x2W OSRAM/CREE Single Color 24VDC Four ways 6W 0.5M  H05RN-F
    3x2W OSRAM/CREE Single Color 220-240VAC Four ways 6W 0.5M  H05RN-F
    3x2W EPISTAR RGB 3in1 24VDC Four ways 6W 0.5M  H05RN-F
