High-power Inground Light

18x2W AL-2BF

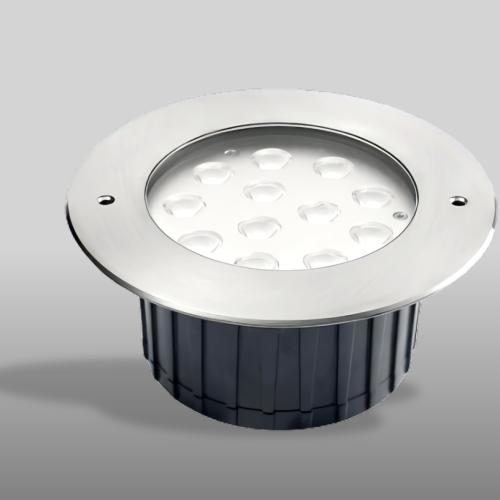

18x2W High Power LED Inground Light

• Item No.:AL-2BF
• LED:12pcs 18pcs high power LED,32pcs 2835SMD
• LED brand:CREE OSRAM EPISTAR
• Power:24-34W

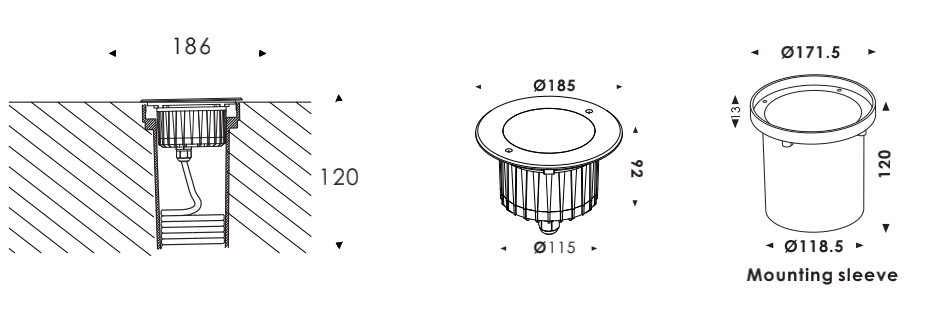

• Dimension:Ø186x92mm
• Voltage:12/24VDC,220-240VAC
• Color temperature::2700K 3000K 4000K  5000K  6000K
• Colors:RGB 3in1 DMX512,RGBW 4in1 Colors:RGB 3in1 DMX512,RGBW 4in1
• Beam angle:10/25/45/60°45|35°  120°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material+316 stainless steel+ABS
• Warranty:3 years
• Certification:CE ROHS UKCA
    1.Reliable light source of CREE & OSRAM & EPISTAR high power LED make sure the light‘s long lifetime and high lumen output.

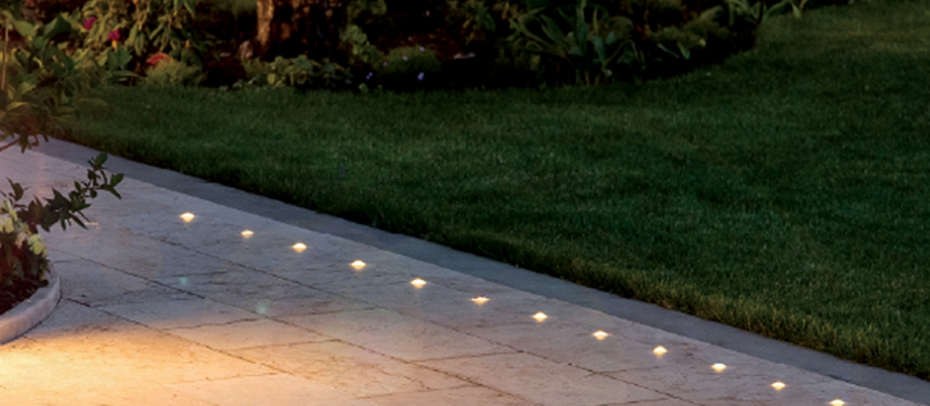

    2.IP67 waterproof,perfect for outdoor park,square,road,building lighting.
    3.Various color optional:2200K 2700K 3000K 4000K 5000K 6000K,RGB 3in1 DMX512,RGBW 4in1 DMX512.
    4.Supporting DMX512,1-10V,DALI,TRIAC or PWM dimming system, bring smooth and soft dimming effect.
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.
    6.SUS316 stainless steel cover,high strengthen ADC 12# die-casting aluminum housing,ABS sleeve.
    7.Top brand electrical components like driving module to guarantee the luminous stability and low breakdown probability.
    9.Symmetrical & asymmetrical lens,various beam angle for choosing:25/45/60°,10/25/45/60°,45|35°,120°.
    10.3 years warranty,CE ROHS,UKCA certification.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-2BF-B12 CREE 12x2W Single Color 24VDC 10/25/45/60°45|35° 24.2W 0.5M  H05RN-F
    CREE 12x2W Single Color 220-240VAC 10/25/45/60°45|35° 23.2W 0.5M  H05RN-F
    EPISTAR 12x2W RGB 3in1 24VDC 10/25/45/60°45|35° 24.2W 0.5M  H05RN-F
    EPISTAR 12x2W RGB 3in1 DMX512 24VDC 10/25/45/60°45|35° 24.2W 0.5M  H05RN-F
    EPISTAR 12x3W RGB 3in1 24VDC 10/25/45/60°45|35° 32.8W 0.5M  H05RN-F
    EPISTAR 12x3W RGB 3in1 DMX512 24VDC 10/25/45/60°45|35° 32.8W 0.5M  H05RN-F
    EPISTAR 12x4W RGBW 4in1 24VDC 10/25/45/60°45|35° 38.8W 0.5M  H05RN-F
    EPISTAR 12x4W RGBW 4in1 DMX512 24VDC 10/25/45/60°45|35° 38.8W 0.5M  H05RN-F
    AL-2BF-B18 CREE 18x1.5W Single Color 24VDC 10/25/45/60°45|35° 24.6W 0.5M  H05RN-F
    CREE 18x1.5W Single Color 220-240VAC 10/25/45/60°45|35° 24.6W 0.5M  H05RN-F
    EPISTAR 18x1.5W RGB 24VDC 10/25/45/60°45|35° 23.7W 0.5M  H05RN-F
    EPISTAR 18x1.5W RGB DMX512 24VDC 10/25/45/60°45|35° 32W 0.5M  H05RN-F
    EPISTAR 18x2W RGB 3in1 24VDC 10/25/45/60°45|35° 32W 0.5M  H05RN-F
    AL-2BF-B36 CREE 36x0.8W Single Color 24VDC 10/25/45/60°45|35° 24.6W 0.5M  H05RN-F
    CREE 36x0.8W Single Color 220-240VAC 10/25/45/60°45|35° 23.7W 0.5M  H05RN-F
    EPISTAR 18x1W RGB 24VDC 10/25/45/60°45|35° 32.8W 0.5M  H05RN-F
    EPISTAR 18x1W RGB DMX512 24VDC 10/25/45/60°45|35° 32.8W 0.5M  H05RN-F
    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
