High-power Inground Light

3x2W AL-2CDR-B

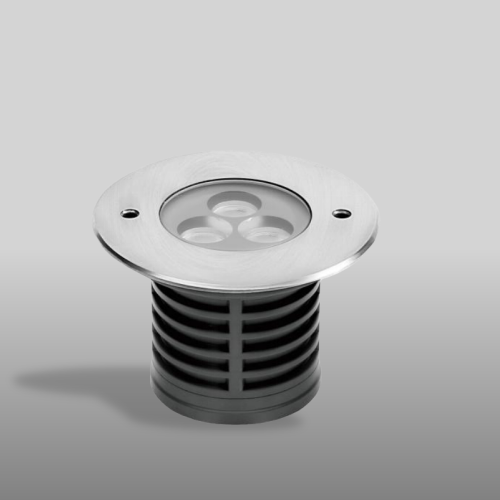

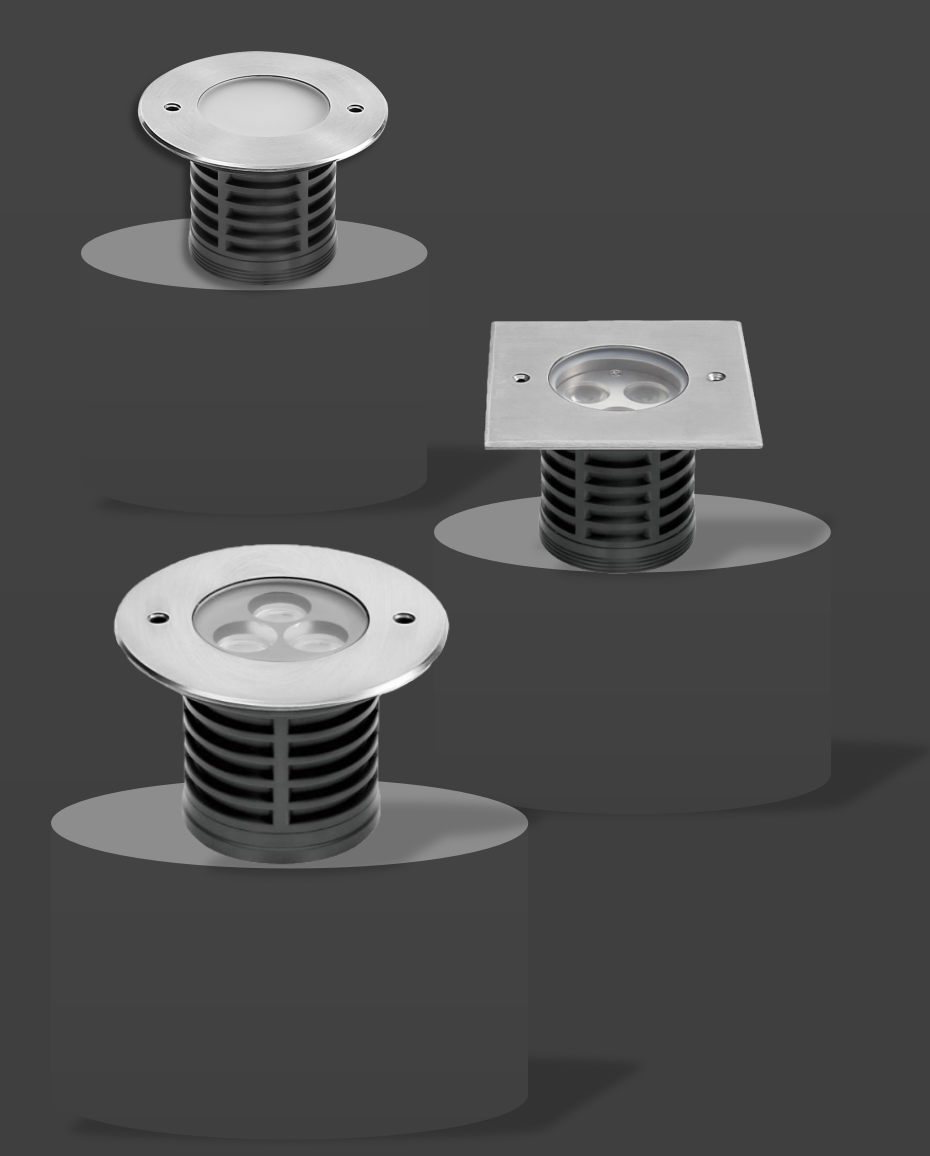

3x2W High Power LED Inground Light

• Item No.:AL-2CDR-B
• LED:3pcs high power LED
• LED brand:CREE OSRAM EPISTAR
• Power:6-9W

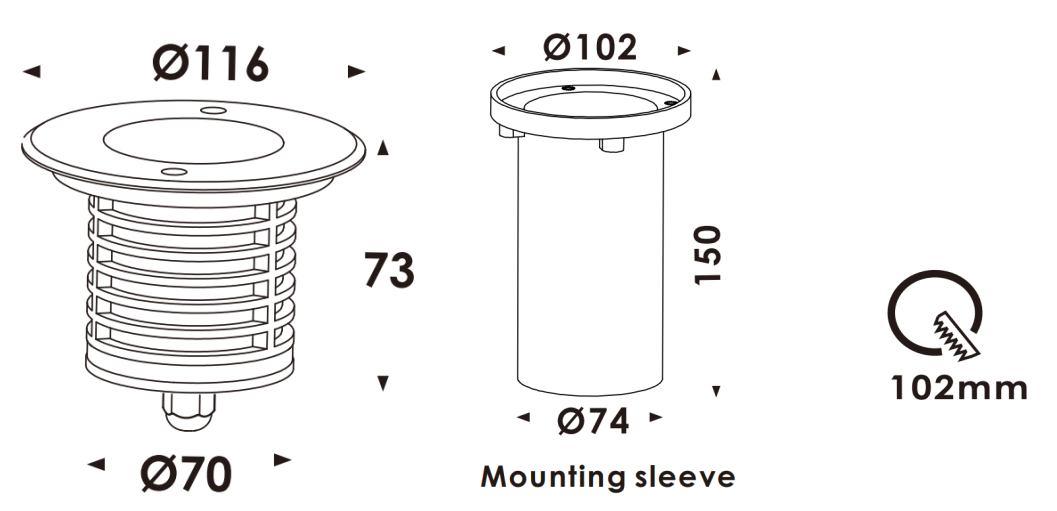

• Dimension:Ø116x73mm
• Voltage:12/24VDC,220-240VAC
• Color temperature::2700K 3000K 4000K  5000K  6000K
• Colors:RGB 3in1 DMX512,RGBW 4in1 Colors:RGB 3in1 DMX512,RGBW 4in1
• Beam angle:10/25/45/60°45|35°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material+316 stainless steel+ABS
• Warranty:3 years
• Certification:CE ROHS UKCA
    1.Reliable light source of CREE & OSRAM & EPISTAR high power LED make sure the light‘s long lifetime and high lumen output.
    2.IP67 waterproof,perfect for outdoor park,square,road,building lighting.
    3.Various color optional:2200K 2700K 3000K 4000K 5000K 6000K,RGB 3in1 DMX512,RGBW 4in1 DMX512.
    4.Supporting DMX512,1-10V,DALI,TRIAC or PWM dimming system, bring smooth and soft dimming effect.
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%.
    6.SUS316 stainless steel cover,high strengthen ADC 12# die-casting aluminum housing,ABS sleeve.
    7.Top brand electrical components like driving module to guarantee the luminous stability and low breakdown probability.
    9.Symmetrical & asymmetrical lens,various beam angle for choosing:25/45/60°,10/25/45/60°,45|35°
    10.5 years warranty,CE ROHS,UKCA certification.

    Item No.

    LED

    Color

    Voltage

    Beam angle

    Power

    Cable







    AL-2CDR-B




    CREE 3x2W

    Single Color

    12/24VDC

    10/25/45/60°45|35°

    6.2W

    0.5M  H05RN-F

    CREE 3x2W

    Single Color

    220-240VAC

    10/25/45/60°45|35°

    6.7W

    0.5M  H05RN-F

    EPISTAR 3x2W

    RGB

    12/24VDC

    10/25/45/60°45|35°

    6.2W

    0.5M  H05RN-F

    EPISTAR 3x2W

    RGB DMX512

    12/24VDC

    10/25/45/60°45|35°

    6.2W

    0.5M  H05RN-F

    EPISTAR 3x3W

    RGB 3in1

    12/24VDC

    10/25/45/60°45|35°

    9.3W

    0.5M  H05RN-F

    EPISTAR 3x3W

    RGB 3in1 DMX512

    12/24VDC

    10/25/45/60°45|35°

    9.3W

    0.5M  H05RN-F

    EPISTAR 3x4W

    RGBW 4in1

    12/24VDC

    10/25/45/60°45|35°

    9.3W

    0.5M  H05RN-F

    EPISTAR 3x4W

    RGBW 4in1 DMX512

    12/24VDC

    10/25/45/60°45|35°

    9.3W

    0.5M  H05RN-F
