Ceiling Light

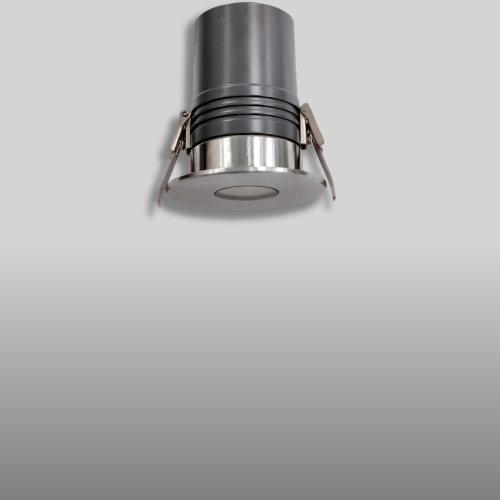

D55mm AL-7W-S1

2~4W recessed down light

• Item No.:AL-7W-S1
• LED:1pcs CREE /OSRAM / EPISTAR high power LED

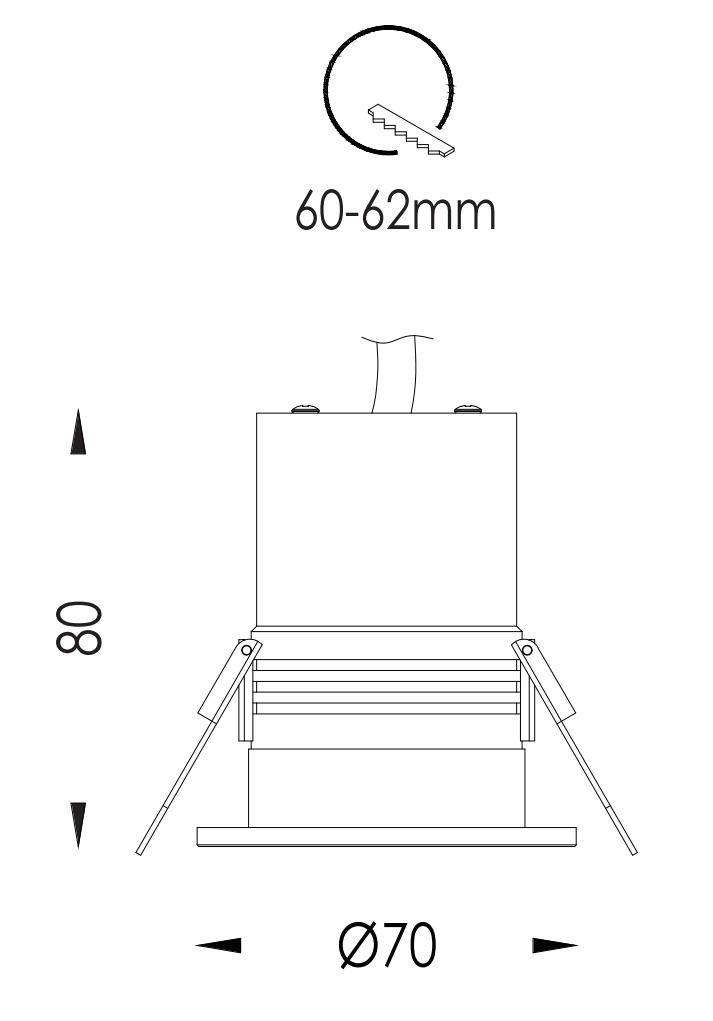

• Dimension:Ø55x82mm
• Voltage:12/24VDC,220-240VAC
• Color:2700K 3000K 4000K  5000K  6000K
            RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:5°/8/15°/25°/40°/60°/10*45°/20*65°
• IP grading:IP67
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material.
• Warranty:3 years
• Certification:CE ROHS UKCA
    1. Protection grade IP67
    2. Various colors options RGB 3in1 & RGBW 4in1
    3. 0-10V, triac dimmable, DMX512
    4. 5 years warranty
    5. 316L stainless steel, die-casting aluminum material
    6. Powder-coated die-casting aluminum + 316 stainless steel cover
    7. Various beam angle options: 10/15/25/40/60°, 120°
    8. CE, ROHS, REACH, UKCA certification
    9. 5 years warranty

    Part code

    LED

    CCT

    Voltage

    Lumen

    Beam angle

    AL-7W-S1-XX1B

    1x2W CREE/OSRAM

    2700K

    3000K

    4000K

    6000K

    12/24VDC

    170lm

    5°/8/15°/25°/40°/60°

    10*45°/20*65°

    AL-7W-S1-XX1B

    1x2W CREE/OSRAM

    2700K

    3000K

    4000K

    6000K

    220-240VAC

    170lm

    5°/8/15°/25°/40°/60°

    10*45°/20*65°

    AL-7W-S1-31CB

    1x3W

    OSRAM

    RGB 3in1

    12/24VDC

    75lm

    12°/25°/40°/60°

    AL-7W-S1-41CB

    1x4W

    OSRAM

    RGBW 4in1

    12/24VDC

    100lm

    12°/25°/40°/60°
