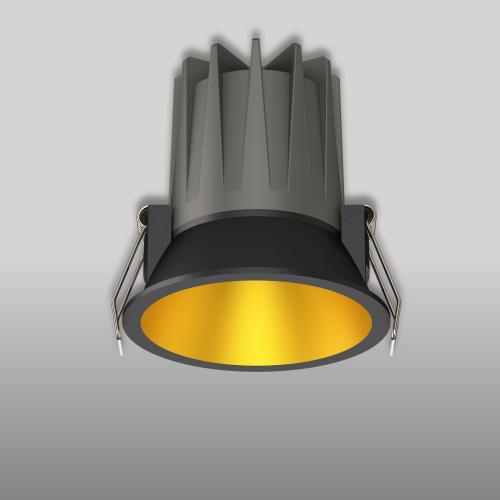

AL-SP11B-FR75O-9W-A&L Lighting Limited

LED Downlight

< >

• Product Code: AL-SP11B-FR75O-9W

• Power: 9W

• Voltage: AC 200-240V
• Luminous Flux: 603lm

• Efficiency: 68lm/W

• Cut-out: 75mm
• Color Rendering Index: CRI 90+
• Beam Angle: 15°/24°/36°
• Uniform Glare Valux: UGR<19

• Control: ON/OFF

• Operating Temperature: -25°C to 45°C

• Material: aluminum

• Ø75mm cut-out, SP11B is a spotlight with mini size.

• COB LED, high lumen output and long lifetime.

• Various beam angle options, perfect for room lighting.
• Anti-glare lighting effect, this downlight is friendly to eyes.

• Eneregy saving.
• External driver, the downlight is easy to install and maintain.
• Smart control, support DALI dimming.

Product No.	AL-SP11B-FR75O-9W
Material	Aluminum + PC

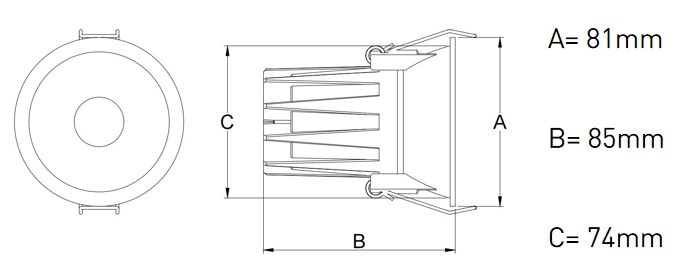

Product Size	D81mm x H85mm
Installation	Recessed
Input Voltage	AC 200-240V
Power	9W
Luminous Flux	603lm
Efficiency	68lm/W
Beam Angle	15°/24°/36°
Uniform Glare Value	UGR<19
Color Temperature	2700K3000K/3500K/4000K/5000K
Color Rendering Index	CRI 90+
Control	ON/OFF, DALI dimming
IP Rating	IP44
Driver Postion	Built-out
Operating Temperature Range	-25 to 45°C
LED Type	COB LED
Lifespan	L80B50 50,000hours
Driver Power Factor	≥0.5
Driver Efficiency	≥71%
THD	>20% @230V
Mains Surge Capability	1KV
