AL-SP11B-FR55O-5W-A&L Lighting Limited

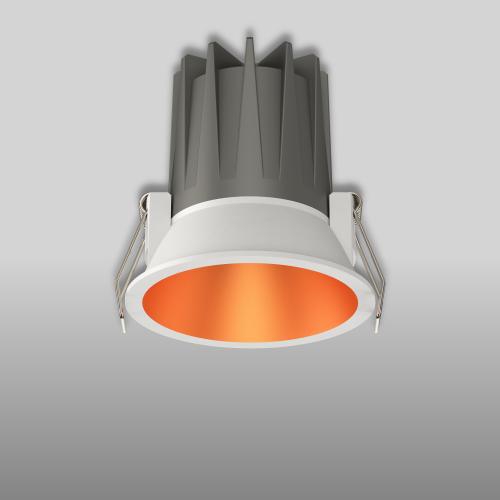

LED Downlight

< >

• Product Code: AL-SP11B-FR55O-5W

• Power: 5W

• Voltage: AC 200-240V
• Luminous Flux: 349lm

• Efficiency: 69lm/W

• Cut-out: 55mm
• Color Rendering Index: CRI 90+
• Beam Angle: 24°/36°
• Uniform Glare Valux: UGR<19

• Control: ON/OFF

• Operating Temperature: -25°C to 45°C

• Material: aluminum

• Ø55mm cut-out, SP11B is a spotlight with mini size.

• COB LED, high lumen output and long lifetime.

• Various beam angle options, perfect for room lighting.
• Anti-glare lighting effect, this downlight is friendly to eyes.

• Eneregy saving.
• External driver, the downlight is easy to install and maintain.
• Smart control, support DALI dimming.

Product No.	AL-SP11B-FR55O-5W
Material	Aluminum + PC

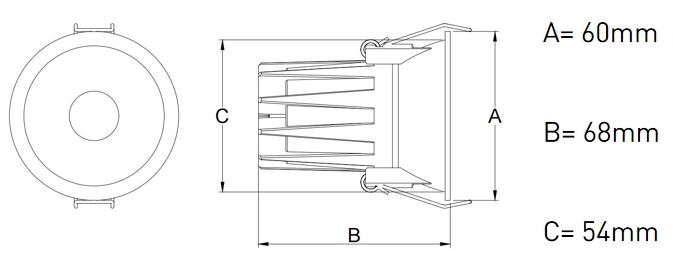

Product Size	D60mm x H68mm
Installation	Recessed
Input Voltage	AC 200-240V
Power	5W
Luminous Flux	349lm
Efficiency	69lm/W
Beam Angle	24°/36°
Uniform Glare Value	UGR<19
Color Temperature	2700K3000K/3500K/4000K/5000K
Color Rendering Index	CRI 90+
Control	ON/OFF, DALI dimming
IP Rating	IP44
Driver Postion	Built-out
Operating Temperature Range	-25 to 45°C
LED Type	COB LED
Lifespan	L80B50 50,000hours
Driver Power Factor	≥0.5
Driver Efficiency	≥71%
THD	>20% @230V
Mains Surge Capability	1KV
