Flood Light

12W AL-3VBB

12W LED Multi-use Garden Spotlight

• Item No.: AL-3VBB
• LED type: 10W 15W COB LED,3pcs high power LED
• LED Chip: CREE,OSRAM,EPISTAR
• Power: 12W

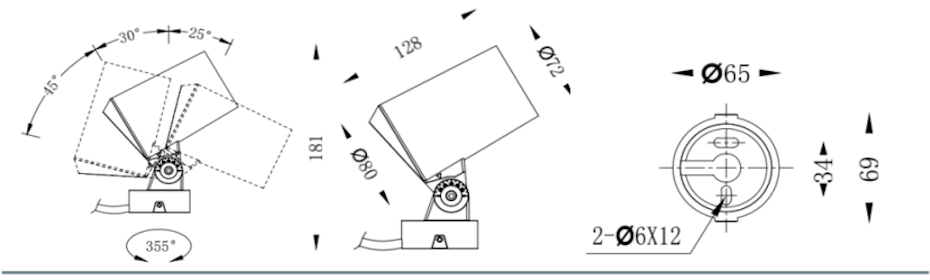

• Dimension: Ø80x148mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Colors: RGB 3in1 DMX512, RGBW 4in1

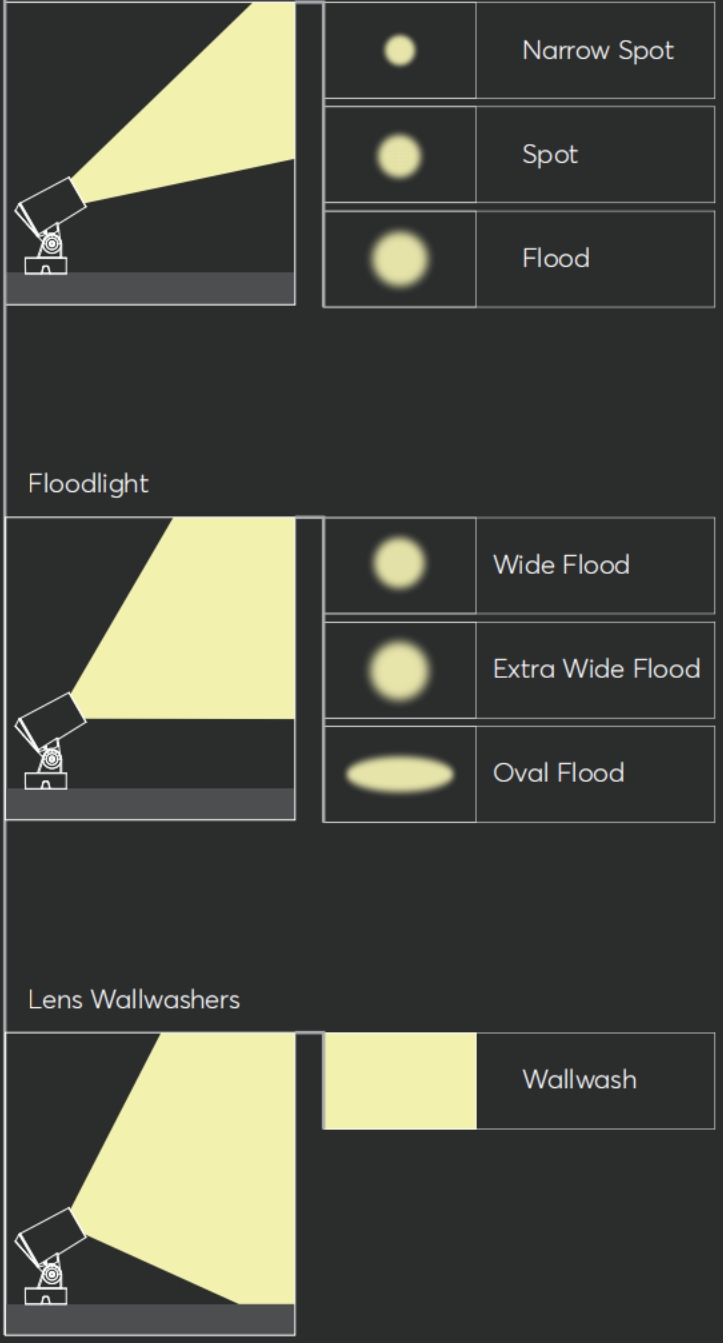

• Beam angle: 3/8°  18/24/38/60°  25 /40/60°
• IP grading: IP66
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
    1. Direct light luminaire with LEDs for flood lighting, accent lighting and landscape lighting.
    2. Using high-efficicency CREE COB led and high-power LED, the light has a long lifetime and high lumen output.
    3. Various colors for choosing: 2700K 3000K 4000K 5000K 6000K, RGB 3in1 DMX512, RGBW 4in1 DMX512.
    3. Support TRIAC, 0-10V and DALI dimmable.
    4. IP66, ideal for both indoor and outdoor lighting.

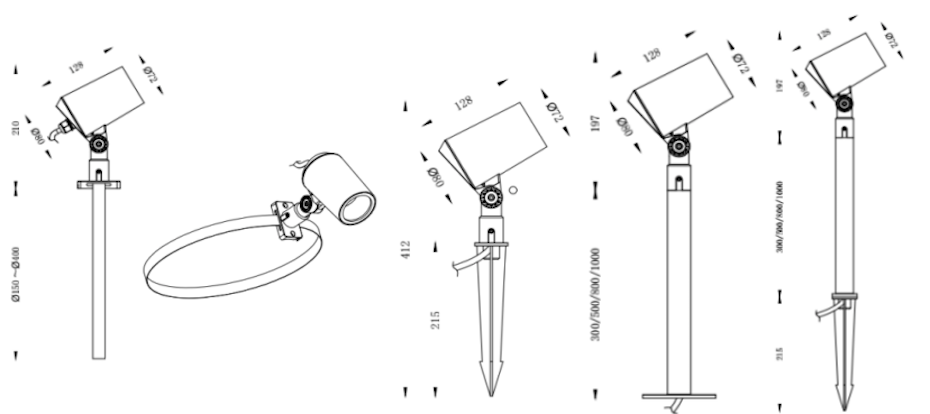

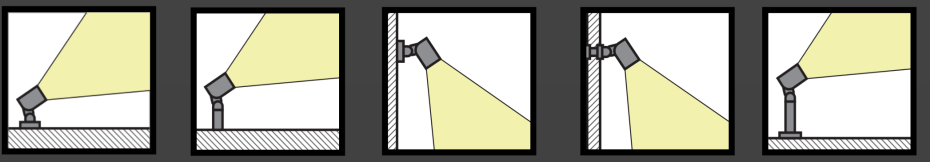

    5. Installtion on the floor, wall, ceiling, tree, pole and ground.
    6. Clear graduated scale, 355°  adjustable.
    7.
    Die-casting aluminum housing and accessories, the housing color can be customized.
    8.5 years warranty,CE ROHS UKCA certification.
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-3VBB-S CREE 1x10W Single Color DC24V 3/8° 9.2W 0.5M  H05RN-F
    CREE 1x10W Single Color 220-240VAC 3/8° 9.6W 0.5M  H05RN-F
    CREE 1x10W Single Color 220-240VAC
    TRIAC dimmable
    3/8° 3.8W 0.5M  H05RN-F
    CREE 1x10W Single Color 220-240VAC
    DALI dimmable
    3/8° / 0.5M  H05RN-F
    CREE 1x10W Single Color 220-240VAC
    0-10V dimmable
    3/8° / 0.5M  H05RN-F
    CREE 1x10W Single Color DMX512 DC24V 3/8° 4.8W 0.5M  H05RN-F
    CREE 1x10W Single Color DMX512 220-240VAC 3/8° 4.8W 0.5M  H05RN-F
    AL-3VBB-R CREE 1x15W Single Color DC24V 18/24/38/60° 12W 0.5M  H05RN-F
    CREE 1x15W Single Color 220-240VAC 18/24/38/60° 12W 0.5M  H05RN-F
    CREE 1x15W Single Color 220-240VAC
    TRIAC dimmable
    18/24/38/60° 12W 0.5M  H05RN-F
    CREE 1x15W Single Color 220-240VAC
    0-10V dimmable
    18/24/38/60° 12W 0.5M  H05RN-F
    CREE 1x15W Single Color 220-240VAC
    DALI dimmable
    18/24/38/60° 12W 0.5M  H05RN-F
    CREE 1x15W Single Color DMX512 DC24V 18/24/38/60° 12W 0.5M  H05RN-F
    CREE 1x15W Single Color DMX512 220-240VAC 18/24/38/60° 6W 0.5M  H05RN-F
    CREE 1x10W RGBW 4in1 DMX512 DC24V 18/24/38/60° 8W 0.5M  H05RN-F
    CREE 1x10W RGBW 4in1 DMX512 220-240VAC 18/24/38/60° 8W 0.5M  H05RN-F
    AL-3VBB-B CREE 4x3W Single Color DC24V 25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x3W Single Color 220-240VAC 25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x3W Single Color 220-240VAC
    TRIAC dimmable
    25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x3W Single Color 220-240VAC
    0-10V dimmable
    25 /40/60° 12W 0.5M  H05RN-F
    CREE 4x3W Single Color 220-240VAC
    DALI dimmable
    25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x3W Single Color DMX512 DC24V 25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x3W Single Color DMX512 220-240VAC 25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x3W RGB 3in1 DMX512 DC24V 25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x3W RGB 3in1 DMX512 220-240VAC 25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x4W RGBW 4in1 DMX512 DC24V 25 /40/60° 11W 0.5M  H05RN-F
    CREE 4x4W RGBW 4in1 DMX512 220-240VAC 25 /40/60° 11W 0.5M  H05RN-F
