Flood Light

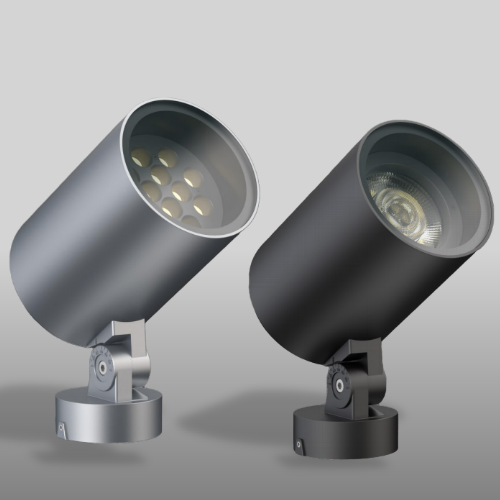

40W AL-3VBD

40W LED Multi-use Garden Spotlight

• Item No.: AL-3VBD
• LED type: 6x10W 1x50W COB LED,6pcs high power LED
• LED Chip: CREE, OSRAM, EPISTAR
• Power: 40W
• Dimension: Ø150x303mm
• Voltage: 24VDC, 220-240VAC
• Color temperature: 2700K 3000K 4000K  5000K  6000K
• Colors: RGB 3in1 DMX512,RGBW 4in1
• Beam angle: 3/8°  18/24/38/60°  25 /40/60°
• IP grading: IP66
• Dimmable options: 0-10V,TRIAC,DALI,PWM
• Material: Die-casting aluminum material.
• Warranty: 5 years
• Certification: CE ROHS UKCA
    1. Direct light luminaire with LEDs for flood lighting, accent lighting and landscape lighting.
    2. Using high-efficicency CREE COB led and high-power LED, the light has a long lifetime and high lumen output.
    3. Various colors for choosing: 2700K 3000K 4000K 5000K 6000K, RGB 3in1 DMX512, RGBW 4in1 DMX512.
    3. Support TRIAC, 0-10V and DALI dimmable.
    4. IP66, ideal for both indoor and outdoor lighting.

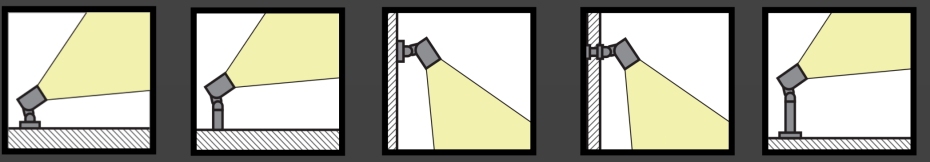

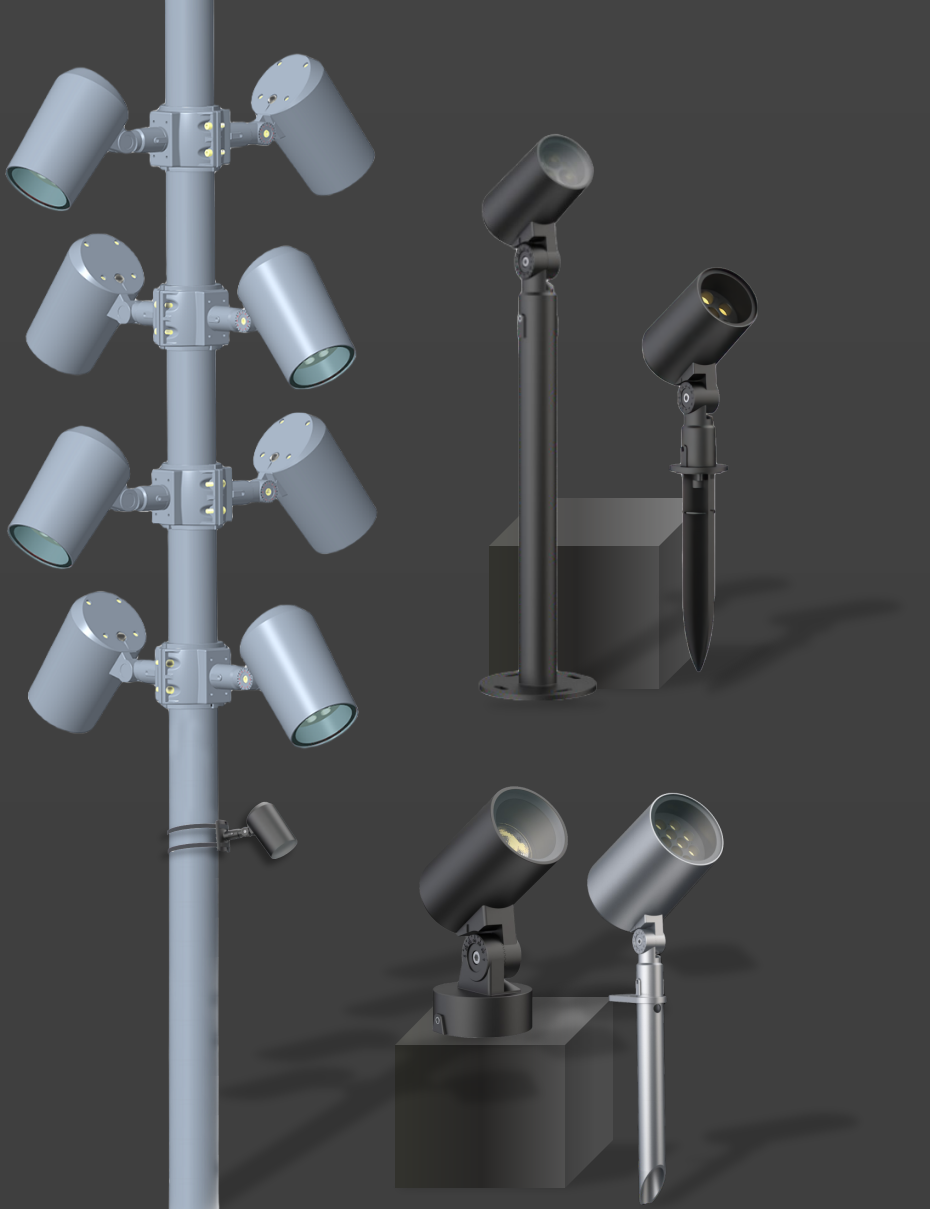

    5. Installtion on the floor, wall, ceiling, tree, pole and ground.

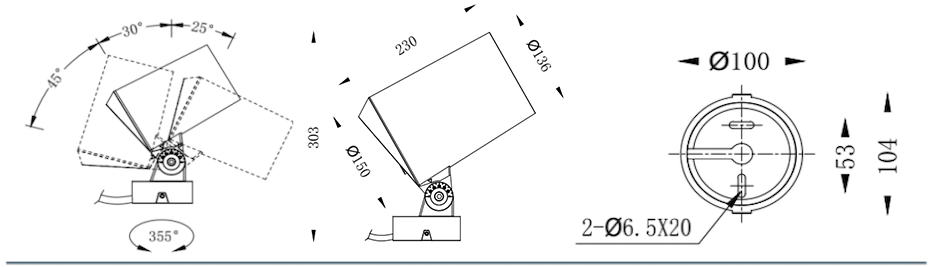

    6. Clear graduated scale, 355°  adjustable.
    7.
    Die-casting aluminum housing and accessories, the housing color can be customized.
    8.5 years warranty,CE ROHS UKCA certification.
    Product No.
    LED
    LED Color
    Voltage
    Dimmable
    Beam Angle
    Power
    Power Cable



    AL-3VBD-S
    CREE 6x10W
    2700-6000K
    24VDC
    NO
    3/6/8°
    46W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    NO
    3/6/8°
    36W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    Triac
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    0-10V
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    DALI
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    24VDC
    DMX512
    3/6/8°
    40W
    0.5M H05RN-F
    CREE 6x10W
    2700-6000K
    220-240VAC
    DMX512
    3/6/8°
    40W
    0.5M H05RN-F



    AL-3VBD-R
    CREE 1x50W
    2700-6000K
    24VDC
    NO
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    NO
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    Triac
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    0-10V
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    DALI
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    24VDC
    DMX512
    18/24/38/60°
    40W
    0.5M H05RN-F
    CREE 1x50W
    2700-6000K
    220-240VAC
    DMX512
    18/24/38/60°
    40W
    0.5M H05RN-F





    AL-3VBD-B
    CREE 12x4W
    2200-6500K
    24VDC
    NO
    6/12/25 /40/60°
    46W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    NO
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    Triac
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    0-10V
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2700-6000K
    220-240VAC
    DALI
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2200-6500K
    24VDC
    DMX512
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    CREE 12x4W
    2200-6500K
    220-240VAC
    DMX512
    6/12/25 /40/60°
    42W
    0.5M H05RN-F
    OSRAM 12x3W
    RGB 3in1
    24VDC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
    OSRAM 12x3W
    RGB 3in1
    220-240VAC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
    OSRAM 12x4W
    RGBW 4in1
    24VDC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
    OSRAM 12x4W
    RGBW 4in1
    220-240VAC
    DMX512
    6/12/25 /40/60°
    36W
    0.5M H05RN-F
