Step Light
6W AL-1FL

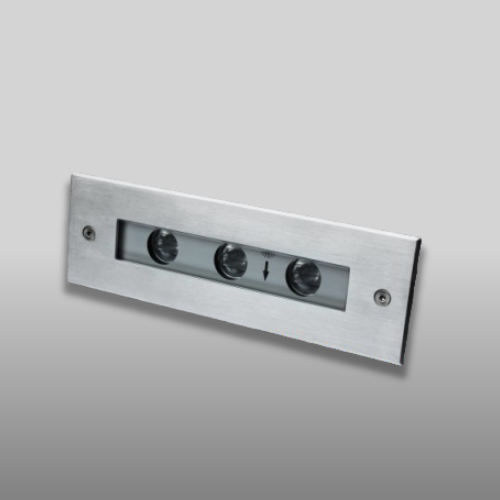

6W Recessed LED Wall Light
• Item No.:AL-1FL
• LED:3pcs high power LED
• LED chip:OSRAM EPISTAR
• Power:6W

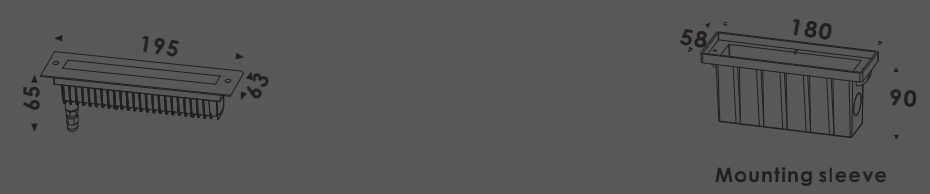

• Dimension:65x63x195mm
• Voltage:24VDC 220VAC
• Color temperature:2700K 3000K 4000K 5000K 6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:120°
• IP grading:IP65
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:Die-casting aluminum material
• Warranty:2 years
• Certification:CE ROHS
| Item No. | LED | Color | Voltage | Beam angle | Power | Cable |
| AL-1FL-B | CREE 3x2W | Single Color | 24VDC | 45°|35° | 5.6W | 0.5M H05RN-F |
| CREE 3x2W | Single Color | 220-240VAC | 45°|35° | 5.8W | 0.5M H05RN-F | |
| EPISTAR 3x3W | RGB 3in1 | 24VDC | 20*60° | 6.4W | 0.5M H05RN-F | |
| EPISTAR 3x3W | RGB 3in1 DMX512 | 24VDC | 20*60° | 6.4W | 0.5M H05RN-F | |
| AL-1FL-D | 10xSMD2835 OSRAM | Single Color | 24VDC | 120° | 2.8W | 0.5M H05RN-F |
| 12xSMD2835 OSRAM | Single Color | 220-240VAC | 120° | 2.8W | 0.5M H05RN-F | |
| 10xSMD2835 EPISTAR | RGB 3in1 | 24VDC | 120° | 3.2W | 0.5M H05RN-F | |
| 10xSMD2835 EPISTAR | RGB 3in1 DMX512 | 24VDC | 120° | 3.2W | 0.5M H05RN-F |
