2. 6063# aluminum with black powder coating, the finish color can be customized to any colors.
3. Various beam angle options: 15°/20°/30°/45°/10*65°.
4. Support 0-10V, DALI and Triac dimming options.
5. 0.3m, 0.5m and 1m length optional.
You are here：Home >> PRODUCTS >> IP65&IP66 Outdoor Lights... >> LED Wall Washer Light...

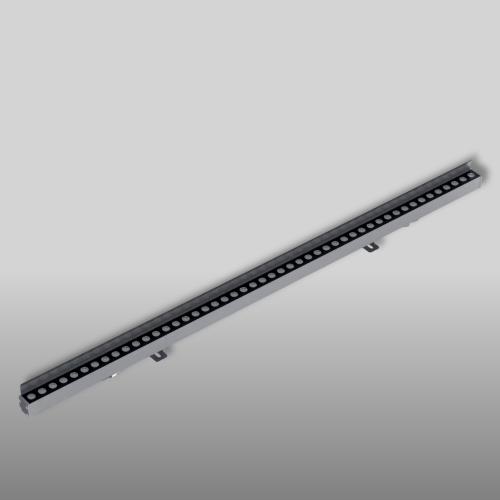

LED Wall Washer Light
AL-6025S
• Power: 6~28W
• Voltage: 12/24VDC, 220-240VAC

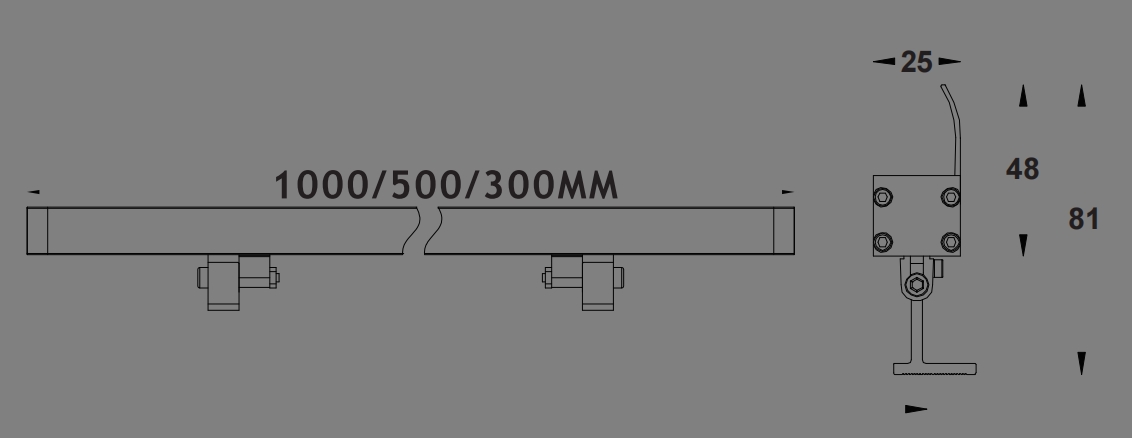

• Dimension: W25 x H81 x L300/500/1000mm
• Color: 2200-6500K
• LED Type: high power LED
• LED Brand: OSRAM / CREE
• Control: 0-10V / Triac / DALI
• Beam Angle: 15°/20°/30°/45°/10*65°
• Lumens: 700lm(0.3M),1100lm(0.5M), 2380lm(1M)
• Housing: 6063# aluminum with black powder coating
• Bracket: 6063# aluminum with black powder coating
• Glass: tempered glass
• Power Cable: 0.25m H05RN-F with male and female connector
• CRI: 80
• IP: IP65
• IK: 05
• Voltage: 12/24VDC, 220-240VAC
• Dimension: W25 x H81 x L300/500/1000mm
• Color: 2200-6500K
• LED Type: high power LED
• LED Brand: OSRAM / CREE
• Control: 0-10V / Triac / DALI
• Beam Angle: 15°/20°/30°/45°/10*65°
• Lumens: 700lm(0.3M),1100lm(0.5M), 2380lm(1M)
• Housing: 6063# aluminum with black powder coating
• Bracket: 6063# aluminum with black powder coating
• Glass: tempered glass
• Power Cable: 0.25m H05RN-F with male and female connector
• CRI: 80
• IP: IP65
• IK: 05
1. IP65, the wall washer light is perfectly used for outdoor light.
2. 6063# aluminum with black powder coating, the finish color can be customized to any colors.
3. Various beam angle options: 15°/20°/30°/45°/10*65°.
4. Support 0-10V, DALI and Triac dimming options.
5. 0.3m, 0.5m and 1m length optional.
2. 6063# aluminum with black powder coating, the finish color can be customized to any colors.
3. Various beam angle options: 15°/20°/30°/45°/10*65°.
4. Support 0-10V, DALI and Triac dimming options.
5. 0.3m, 0.5m and 1m length optional.
| Product Code | LED | Color | Beam Angle | Input Voltage | Power | Length |
| AL-6025S-0.3M | 6 x 1W | 2200-6500K | 15°/20°/30°/45°/10*65° | 12/24VDC 220-240VAC | 6W | 300mm |
| 12 x 0.8W | 2200-6500K | 15°/20°/30°/45°/10*65° | 12/24VDC 220-240VAC | 6W | 300mm | |
| AL-6025S-0.5M | 12 x 1W | 2200-6500K | 15°/20°/30°/45°/10*65° | 12/24VDC 220-240VAC | 10W | 500mm |
| 18 x 0.8W | 2200-6500K | 15°/20°/30°/45°/10*65° | 12/24VDC 220-240VAC | 10W | 500mm | |
| AL-6025S-1M | 24 x 1W | 2200-6500K | 15°/20°/30°/45°/10*65° | 12/24VDC 220-240VAC | 18W | 1000mm |
| 36 x 0.8W | 2200-6500K | 15°/20°/30°/45°/10*65° | 12/24VDC 220-240VAC | 18W | 1000mm |
