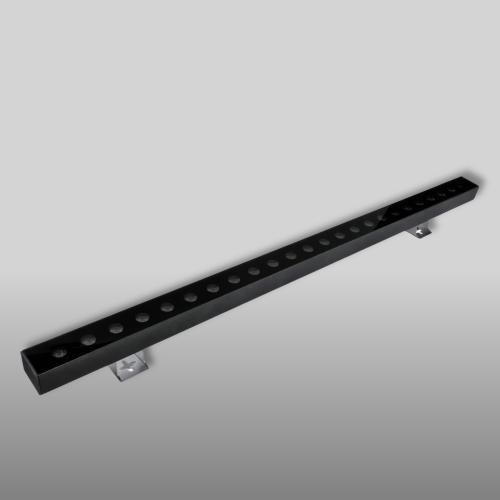

LED Wall Washer Light

AL-6050L

•  Power: 24~84W
•  Voltage: 12/24VDC, 220-240VAC

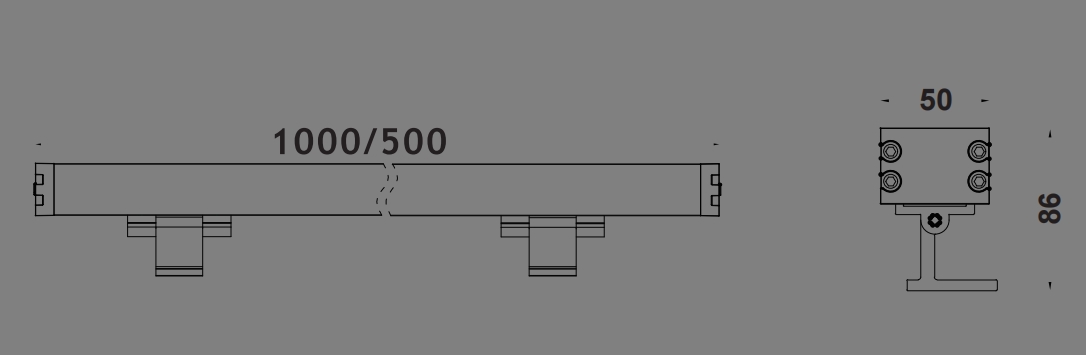

•  Dimension: W50 x H86 x L500/1000mm
•  Color: 2200-6500K, RGB 3in1, RGBW 4in1
•  LED Type: high power LED
•  LED Brand: OSRAM / CREE
•  Control: 0-10V / Triac / DALI / DMX512
•  Beam Angle: 10°/15°/30°/60°/15*45°/10*60°
•  Lumens: 1390lm(0.5M),2870lm(1M)
•  Housing: 6063# aluminum with black powder coating
•  Bracket: 6063# aluminum with black powder coating
•  Glass: tempered glass
•  Power Cable: 0.25m H05RN-F with male and female connector
•  CRI: 80
•  IP: IP65
•  IK: 05
    1. IP65, the wall washer light is perfectly used for outdoor light.
    2. 6063# aluminum with black powder coating, the finish color can be customized to any colors.
    3. Various beam angle options: 15°/20°/30°/45°/10*65°.
    4. Support 0-10V, DALI and Triac dimming options.
    5. 0.3m, 0.5m and 1m length optional.
    6. RGB 3in1, RGBW 4in1.



    Product Code LED Color Beam Angle Input Voltage Power Length
    AL-6050L-0.5M 12 x 1W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 12W 500mm
    12 x 2W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 24W 500mm
    18 x 1W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 18W 500mm
    18 x 1.5W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 27W 500mm
    12 x 3W RGB 3in1 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 36W 500mm
    12 x 4W RGBW 4in1 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 42W 500mm
    AL-6050L-01M 24 x 1W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 24W 1000mm
    24 x 2W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 48W 1000mm
    36 x 1W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 36W 1000mm
    36 x 1.5W 2200-6500K 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 220-240VAC 54W 1000mm
    24 x 3W RGB 3in1 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 72W 1000mm
    24 x 4W RGBW 4in1 10°/15°/30°/60°/15*45°/10*60° 12/24VDC 84W 1000mm
