Linear Light

ORB-R600-RC

• Product Code: ORB-R600-RC
• Power: 36W
• Voltage: AC 200-240V
• Luminous Flux: 2700-2880lm
• Efficiency: 75-80lm/W

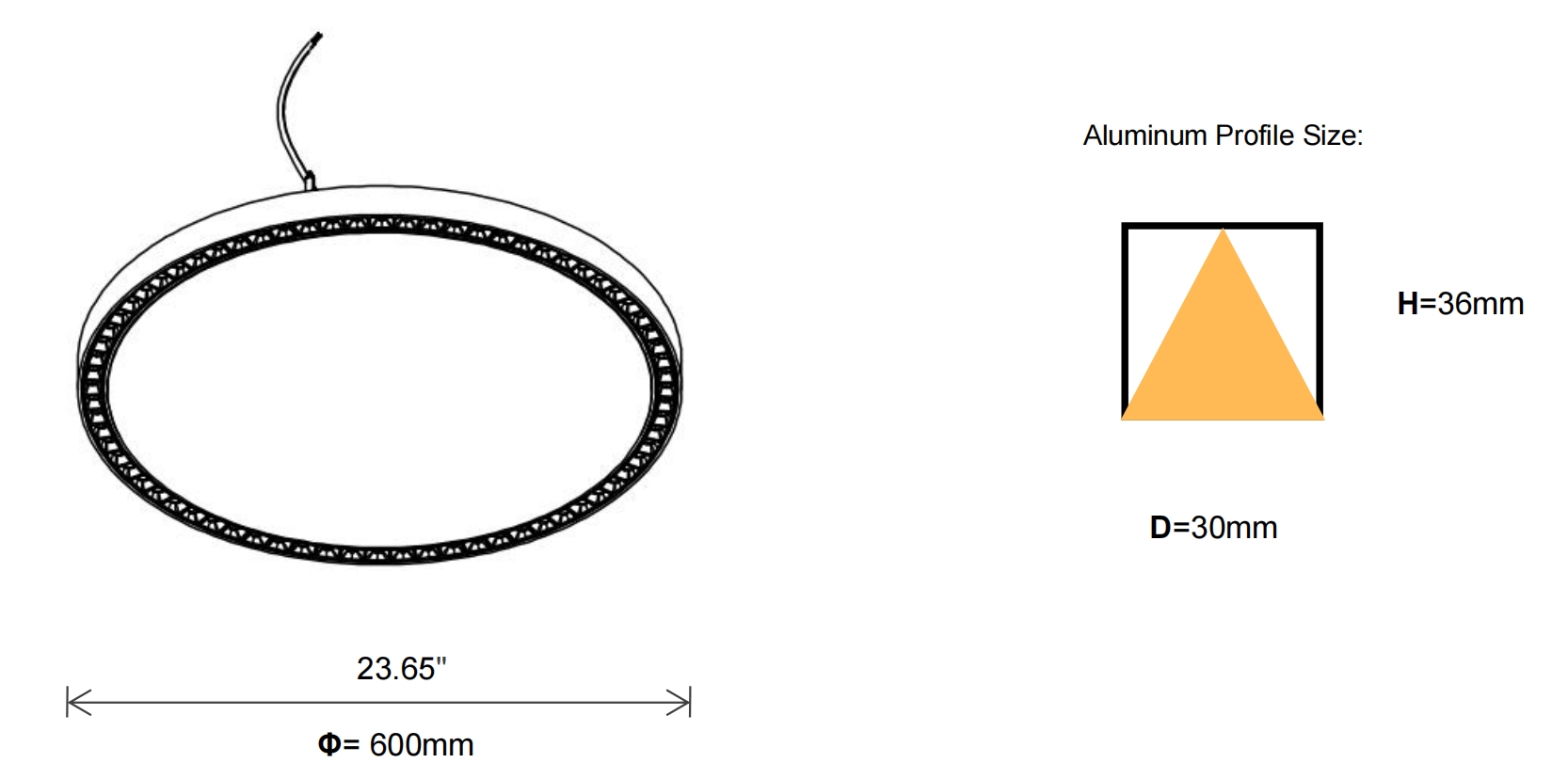

• Dimension: D=600mm, H=36mm
• Color Rendering Index: CRI 90+
• Uniform Glare Valux: UGR<6
• Optics: reflector cup
• Beam Angle: 34° / 48°
• Distribution: 100% direct
• Control: ON/OFF
• Operating Temperature: -20 to 55°C
• Material: aluminum + PMMA

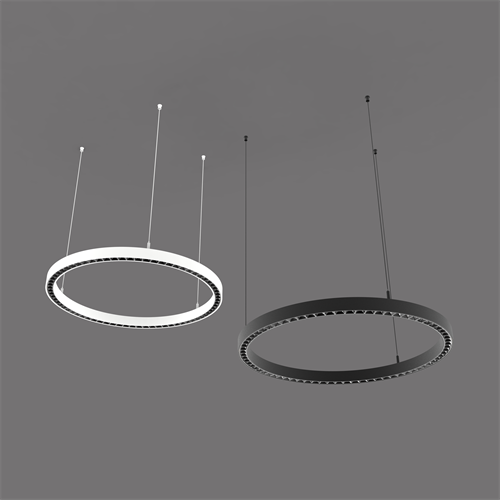

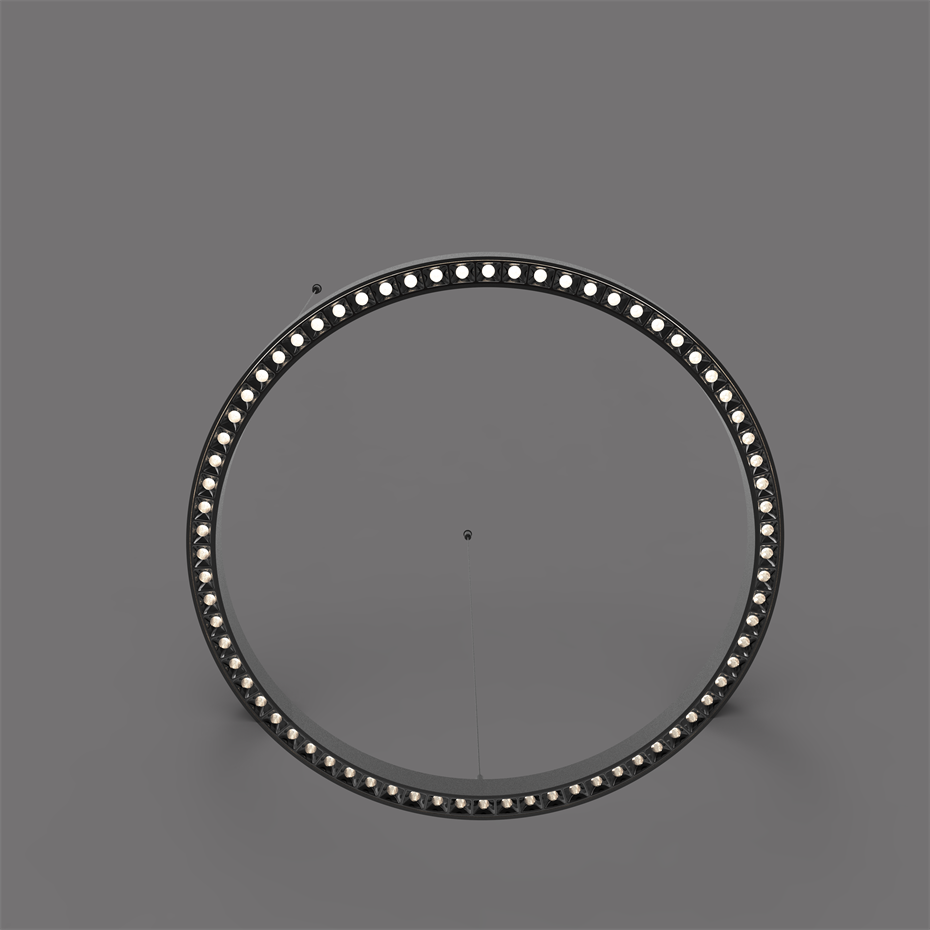

    ORB-R600 is a round suspended linear fixture with various optical accessory options:
    ORB-R600-RC: with reflector cup
    ORB-R600-PC: with silicone board
    We have optimized the position of the LED so that the fixture can delivery an uniform light and extraordinary anti-glare lighting effect.

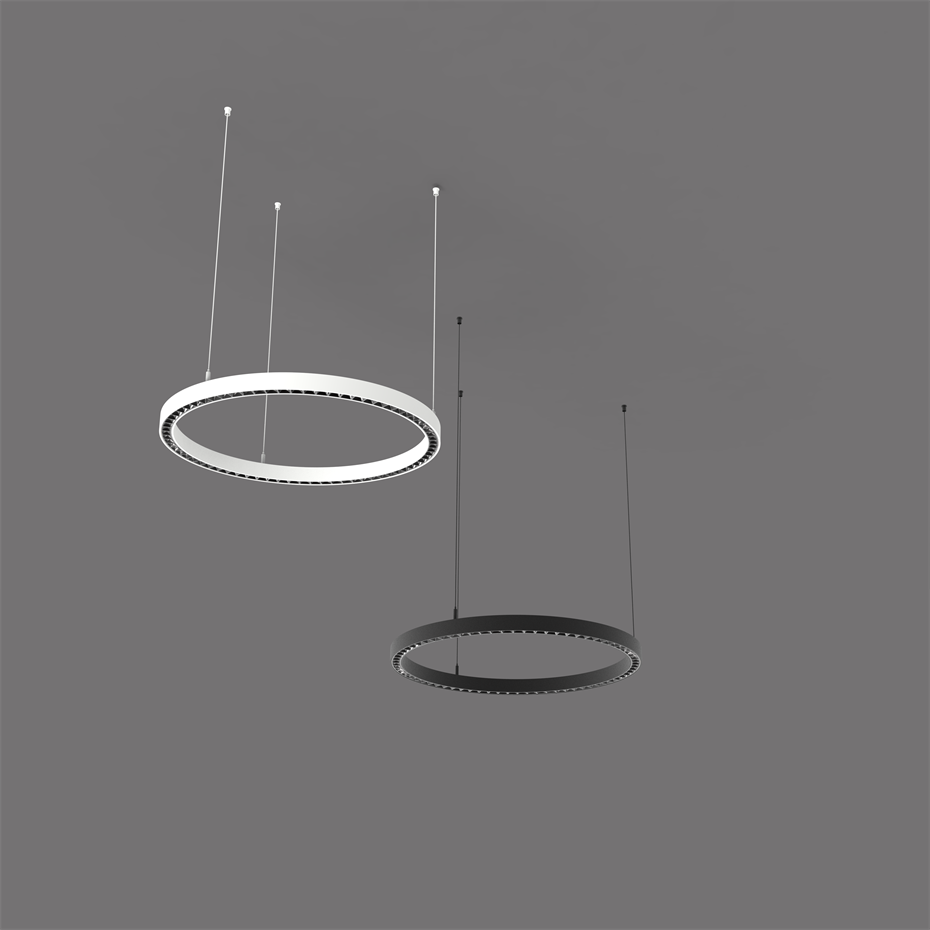

    It comes in black, white and gray options and has two suspension points that are adjustable in height. The light source provides multiple CCT options: 2700K, 4000K and 5700K. It is a perfect choice for lighting in spaces such as offices, meeting rooms, living rooms, and dining rooms.



    Product No. ORB-R600-RC
    Material Aluminum + PMMA
    Product Size D600 x H36MM
    Installation Suspended
    Input Voltage AC 200-240V
    Power 36W
    Luminous Flux 2700-2880lm
    Efficiency 75-80 lm/W
    Optic Silicone Board
    Beam Angle 34° / 48°
    Uniform Glare Value UGR<6
    Color Temperature 2700K / 3000K / 4000K / 5700K
    Color Rendering Index CRI 90+
    Control ON/OFF
    IP Rating IP20
    Housing Finish Black(RAL 9005) / White(RAL 9016) / Gray(RAL 9006)
    Operating Temperature Range -20 to 55°C

    LED LUMILEDS SMD LED
    R9 R9>67
    Lifespan L80B50 50,000hours
    Driver Power Factor >0.95
    Driver Efficiency ≥88%
    THD <15%
    Electrical Protection II
    Mains Surge Capability 1KV
    Photobiological Risk Group RG0
    Warranty 5 Years
