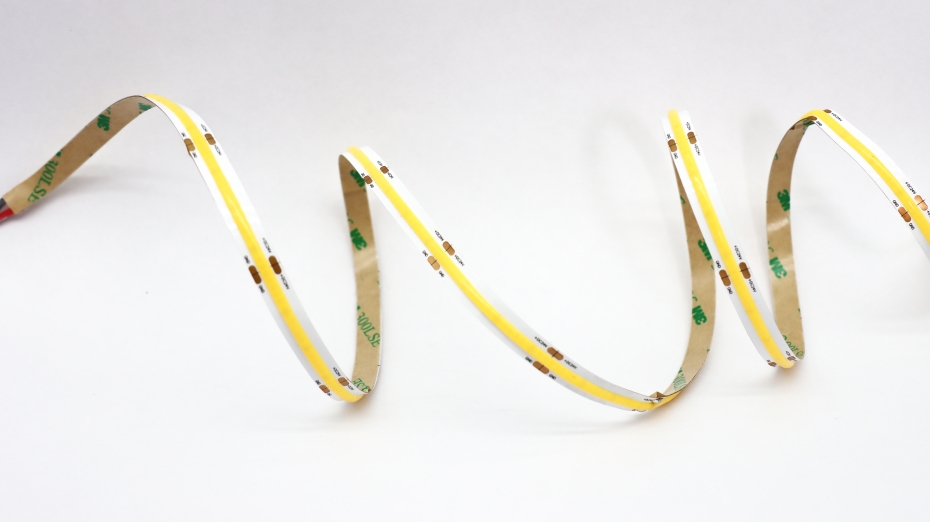

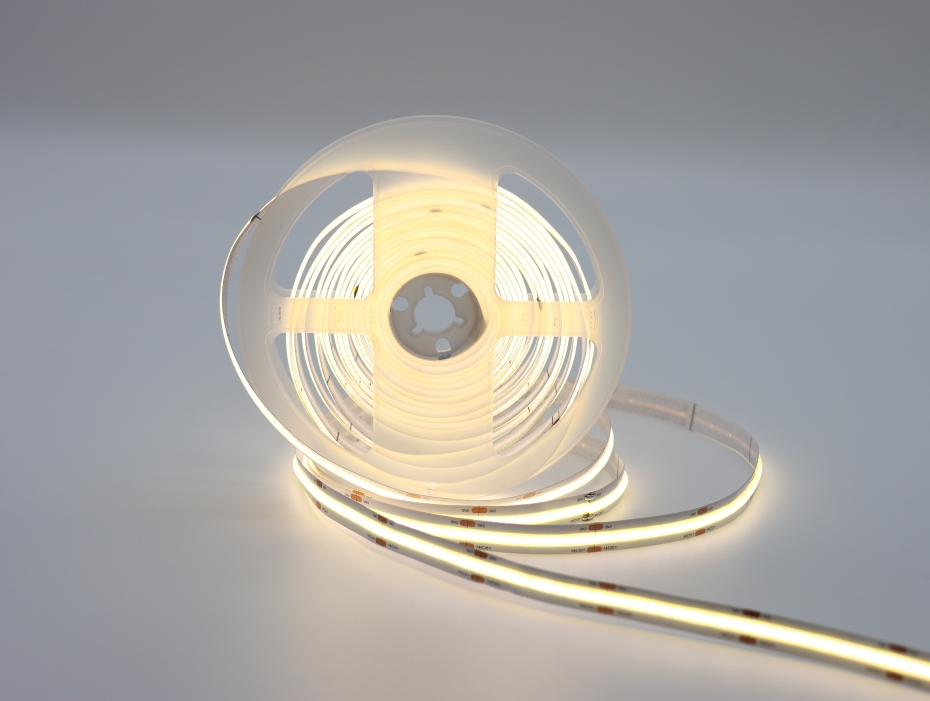

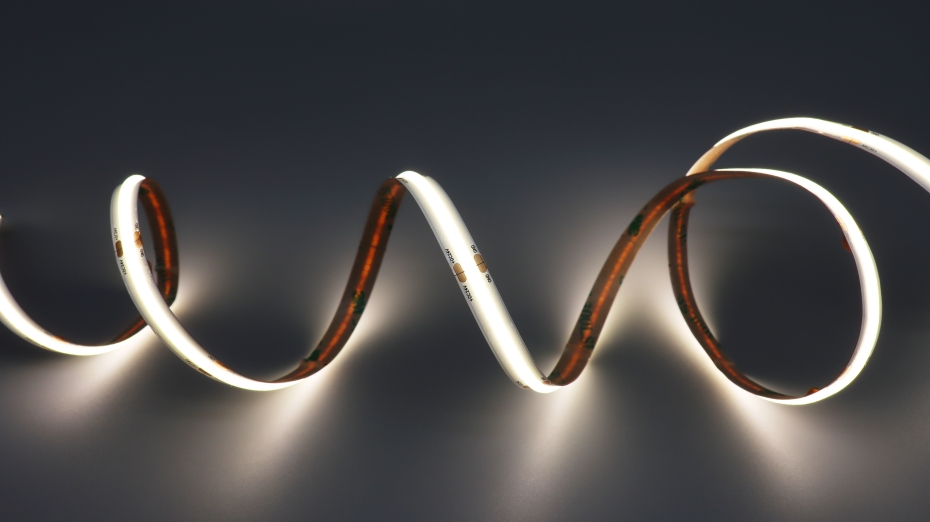

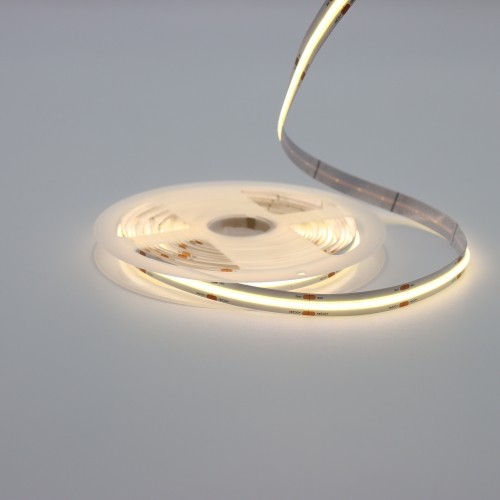

1. COB LED desgin, 504 chips per meter, the strip light comes out with even and uniform lighting.

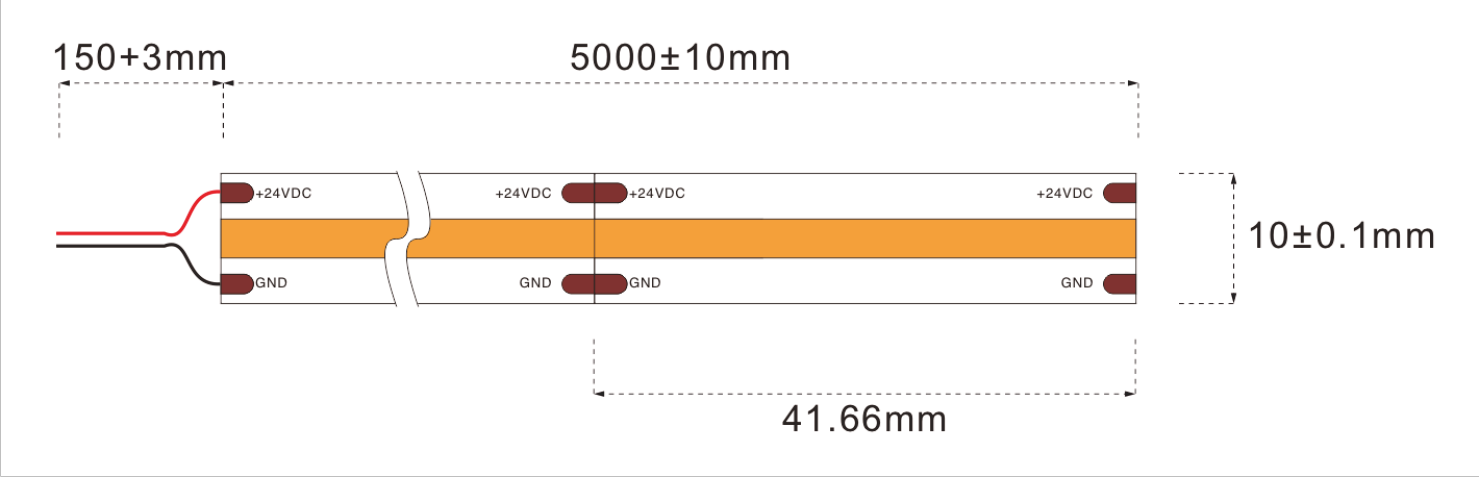

2. The strip light has only 1.98mm LED spacing and 41.66mm cutting unit.
3. New circut design to reduce brightness difference from beginning to end of the strip light.
4. Excellent double layer 2oz PCB with good dissipation, flexibility and low voltage droping.
5. High lumen output: 92lm/W.
6. Various CRI opitonal: Ra80+ or Ra90+.
7. The strip light can be made with IP20, IP54, IP65 and IP67 for meeting different lighting requirements.

Product Code	Power	Voltage	LED Quantity/meter	PCB	Cutting Unit	CRI	CCT	Lumens	Efficiency
AL-SLCOB80-SD504V210-27	12W/M	24VDC	480	10mm, 2oz	41.66mm	80+	2700K	960lm/M	80lm/W
AL-SLCOB80-SD504V210-30	12W/M	24VDC	480	10mm, 2oz	41.66mm	80+	3000K	1032lm/M	86lm/W
AL-SLCOB80-SD504V210-40	12W/M	24VDC	480	10mm, 2oz	41.66mm	80+	4000K	1104lm/M	92lm/W
AL-SLCOB80-SD504V210-65	12W/M	24VDC	480	10mm, 2oz	41.66mm	80+	6500K	1104lm/M	92lm/W
AL-SLCOB90-SD504V210-27	12W/M	24VDC	480	10mm, 2oz	41.66mm	90+	2700K	756lm/M	63lm/W
AL-SLCOB90-SD504V210-30	12W/M	24VDC	480	10mm, 2oz	41.66mm	90+	3000K	804lm/M	67lm/W
AL-SLCOB90-SD504V210-40	12W/M	24VDC	480	10mm, 2oz	41.66mm	90+	4000K	900lm/M	75lm/W
AL-SLCOB90-SD504V210-65	12W/M	24VDC	480	10mm, 2oz	41.66mm	90+	6500K	900lm/M	75lm/W
