1. COB LED desgin, 630 RGB chips per meter, the strip light comes out with even and uniform lighting.
2. With only 1mm wide side emitting, the strip light creates a linear lighting effect that bring infinite possibilities to the lighting space.
3. New circut design to reduce brightness difference from beginning to end of the strip light.
4. Excellent double layer 2oz PCB with good dissipation, flexibility and low voltage droping.
5. The strip light can be made with IP20 and IP65 for meeting different lighting requirements.
6. Support DALI, 0/1-10V and PWM dimming.

Product Code	AL-SLCOB-SE630V210-RGB
Voltage	24VDC
LED Quantity/Meter	630

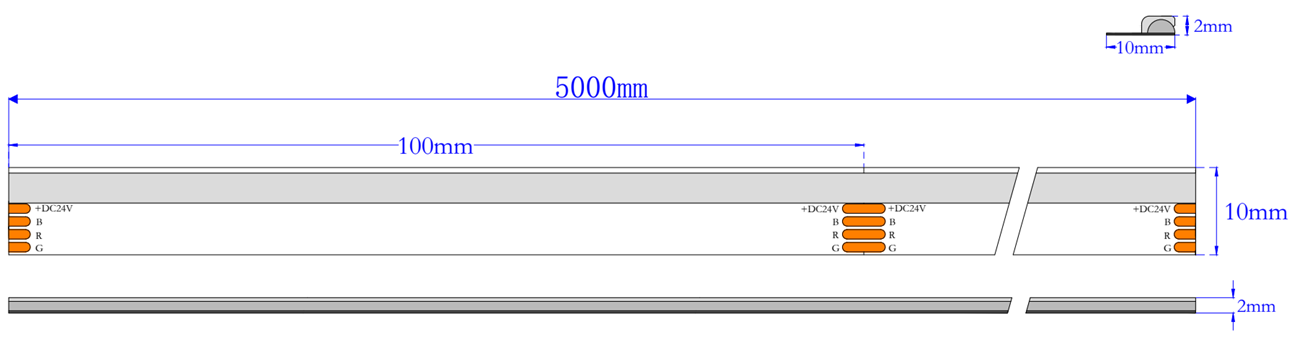

Cutting Unit	100mm
PCB	10mm, 2oz
Dimension	W: 10mm  H: 1.6mm  L: 5,000mm
Color	Red	Green	Blue	RGB Mixing
Power	4W/M	2.5W/M	2.5W/M	9W/M
Lumens	40lm/M	125lm/M	15lm/M	180lm/M
Efficiency	10lm/W	50lm/W	6lm/W	20lm/W
