1. COB LED desgin, 840 RGBW chips per meter, the strip light comes out with even and uniform lighting.
2. Using 256 level gray chip, the digital rgb strip light can achieve more delicate change effects, consistent brightness and mixing effects from beginning to the end of the strip light.
3. 14 pixels per meter.
4. The cutting unit is less than 8CM.
5. Excellent double layer 2oz PCB with good dissipation, flexibility and low voltage droping.
6. The strip light can be made with IP20, IP54, IP65, IP67 and IP68 for meeting different lighting requirements.
7. Support DALI, 0/1-10V and PWM dimming.

Product Code	AL-SLCOB-SPI840V212-RGBW
Voltage	24VDC
LED Quantity/Meter	630
Cutting Unit	100mm
PCB	10mm, 2oz

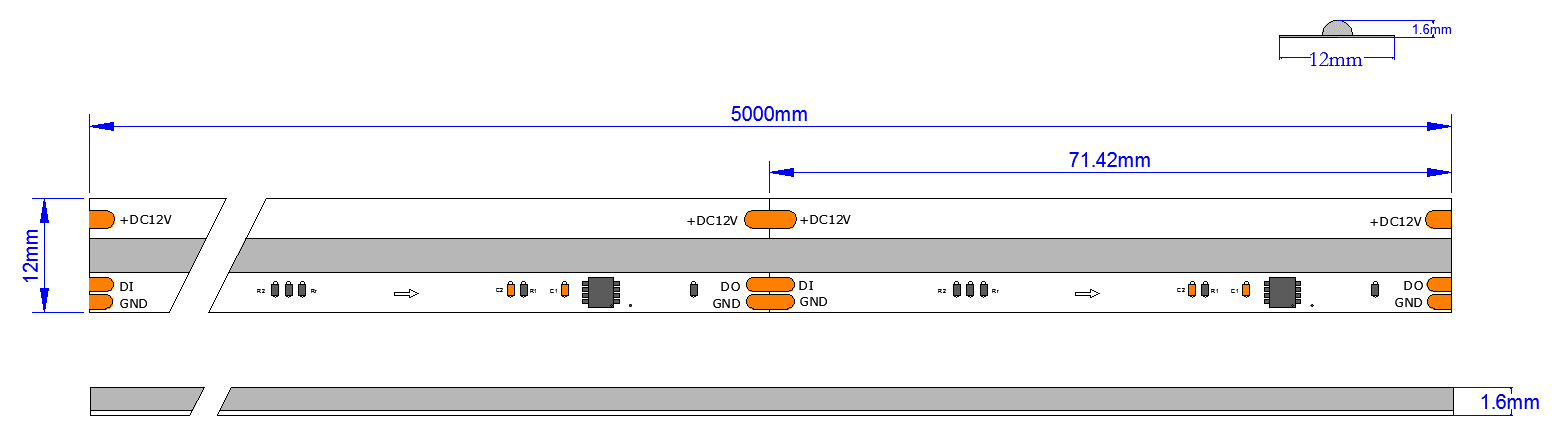

Dimension	W: 12mm  H: 1.6mm  L: 5,000mm
Color	Red	Green	Blue	4000K	RGB Mixing	RGBW Mixing
Power	1.8W/M	1.8W/M	1.8W/M	3W/M	4.5W/M	7W/M
Lumens	21.6lm/M	144lm/M	18lm/M	180lm/M	180lm/M	350lm/M
Efficiency	12lm/W	80lm/W	10lm/W	60lm/W	40lm/W	50lm/W
