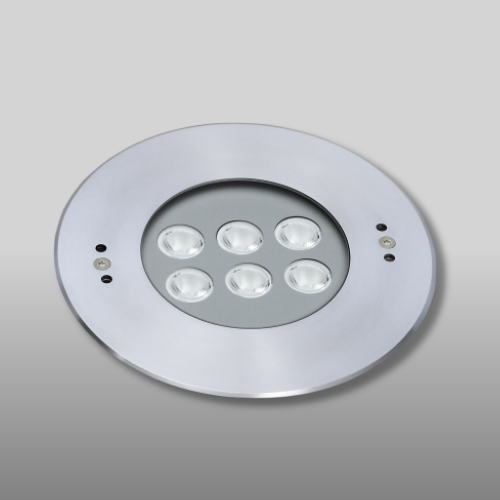

Recessed Underwater Light

6x2W AL-B4YA

6x2W  LED Underwater Light With Overheat Sensor Protection

• Item No.:AL-B4YA/AL-B4YB
• LED:1pcs 15W COB LED,6pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:15W~20W

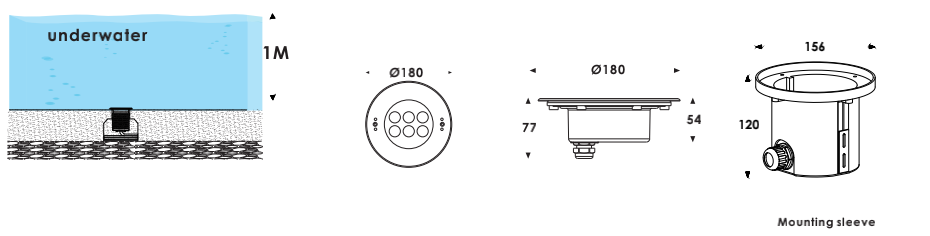

• Dimension:Ø180x54mm
• Voltage:24VDC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:24/36/60° 15/30/45/60 45|35°
• IP grading:IP68
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:SUS 316L stainless steel
• Warranty:3 years
• Certification:CE ROHS
    1.IP68 waterproof,perfec for swimming pool lighting
    2.Reliable CREE COB LED and high power LED as light source make sure the light‘s long lifetime and high lumen output
    3.Support DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect
    4.Various color optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%
    6.316L#titanium coated stainless steel cover & 316L# stainless steel housing & ABS sleeves material
    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability
    8.3 years warranty,CE ROHS certification
    9.With overheat sensor protection inside,the light fixture can be protected from high temperature
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-B4YA CREE 1x15W Single Color DC24V 24/36/60° 14.8W 3M  H05RN-F
    CREE 6x2W Single Color DC24V 15/30/45/60 45|35° 14.8W 3M  H05RN-F
    EPISTAR 6x3W RGB 3in1 DC24V 15/30/45/60 45|35° 18.4W 3M  H05RN-F
    EPISTAR 6x3W RGB 3in1 DMX512 DC24V 15/30/45/60 45|35° 18.4W 3M  H05RN-F
    EPISTAR 6x4W RGBW 4in1 DC24V 15/30/45/60 45|35° 20W 3M  H05RN-F
    EPISTAR 6x4W RGBW 4in1 DMX512 DC24V 15/30/45/60 45|35° 20W 3M  H05RN-F

    Item No. LED Color Voltage Beam angle  Power Cable
    AL-B4YB CREE 6x2W Single Color DC24V 15/30/45/60 45|35° 14.8W 3M  H07RN-F
    EPISTAR 6x3W RGB 3in1 DC24V 15/30/45/60 45|35° 18.4W 3M  H07RN-F
    EPISTAR 6x3W RGB 3in1 DMX512 DC24V 15/30/45/60 45|35° 18.4W 3M  H07RN-F
    EPISTAR 6x4W RGBW 4in1 DC24V 15/30/45/60 45|35° 20W 3M  H07RN-F
    EPISTAR 6x4W RGBW 4in1 DMX512 DC24V 15/30/45/60 45|35° 20W 3M  H07RN-F
