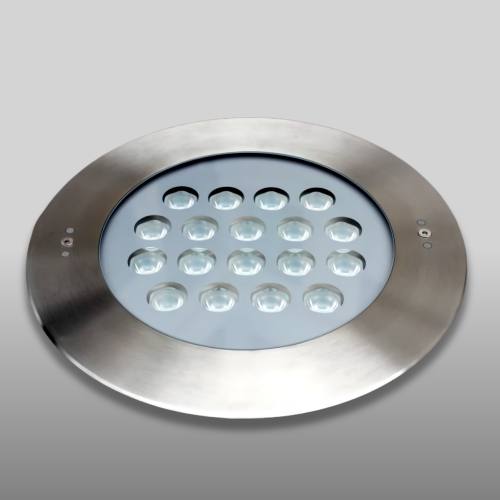

Recessed Underwater Light

18x2W AL-B4FA

18x2W LED Underwater Light With Overheat Sensor Protection

• Item No.:AL-B4FA/AL-B4FB
• LED:1pcs 45W COB LED,18/36pcs high power LED
• LED chip:CREE OSRAM EPISTAR
• Power:42W~54W

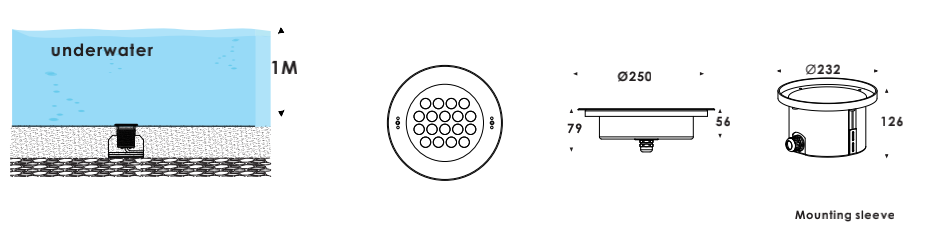

• Dimension:Ø250x56mm
• Voltage:24VDC
• Color temperature:2700K 3000K 4000K  5000K  6000K
• Color:RGB 3in1 DMX512,RGBW 4in1 DMX512
• Beam angle:24/36/60° 15/30/45/60 45|35°
• IP grading:IP68
• Dimmable options:0-10V,TRIAC,DALI,PWM
• Material:SUS 316L stainless steel
• Warranty:3 years
• Certification:CE ROHS
    1.IP68 waterproof,perfec for swimming pool lighting
    2.Reliable CREE COB LED and high power LED as light source make sure the light‘s long lifetime and high lumen output
    3.Support DMX512,1-10V,DALI,TRIAC or PWM dimming system with smooth and soft dimming effect
    4.Various color optional:single color,RGB 3in1 DMX512,RGBW 4in1 DMX512
    5.Equiped with ultra clear and high strengthen 4mm tempered glass cover,the fixture‘s luminous efficacy can reach 90-95%
    6.316L#titanium coated stainless steel cover & 316L# stainless steel housing & ABS sleeves material
    7.Top brand electrical components to guarantee the luminous stability and low breakdown probability
    8.3 years warranty,CE ROHS certification
    9.With overheat sensor protection inside,the light fixture can be protected from high temperature
    Item No. LED Color Voltage Beam angle  Power Cable
    AL-B4F-18 CREE 1x45W Single Color DC24V 15/30/45/60 45|35° 41.6W 3M  H07RN-F
    CREE 18x2W Single Color DC24V 15/30/45/60 45|35° 41.6W 3M  H07RN-F
    EPISTAR 18x3W RGB 3in1 DC24V 15/30/45/60 45|35° 52W 3M  H07RN-F
    EPISTAR 18x3W RGB 3in1 DMX512 DC24V 15/30/45/60 45|35° 52W 3M  H07RN-F
    EPISTAR 18x4W RGBW 4in1 DC24V 15/30/45/60 45|35° 68W 3M  H07RN-F
    EPISTAR 18x4W RGBW 4in1 DMX512 DC24V 15/30/45/60 45|35° 68W 3M  H07RN-F
    AL-B4F-36 CREE 36x1.5W Single Color DC24V 15/30/45/60 45|35° 54.6W 3M  H07RN-F
    EPISTAR 36x1.5W RGB  DC24V 15/30/45/60 45|35° 54.6W 3M  H07RN-F
    EPISTAR 36x1.5W RGB DMX512 DC24V 15/30/45/60 45|35° 54.6W 3M  H07RN-F
